Mini FX/PL Examples Guide 5

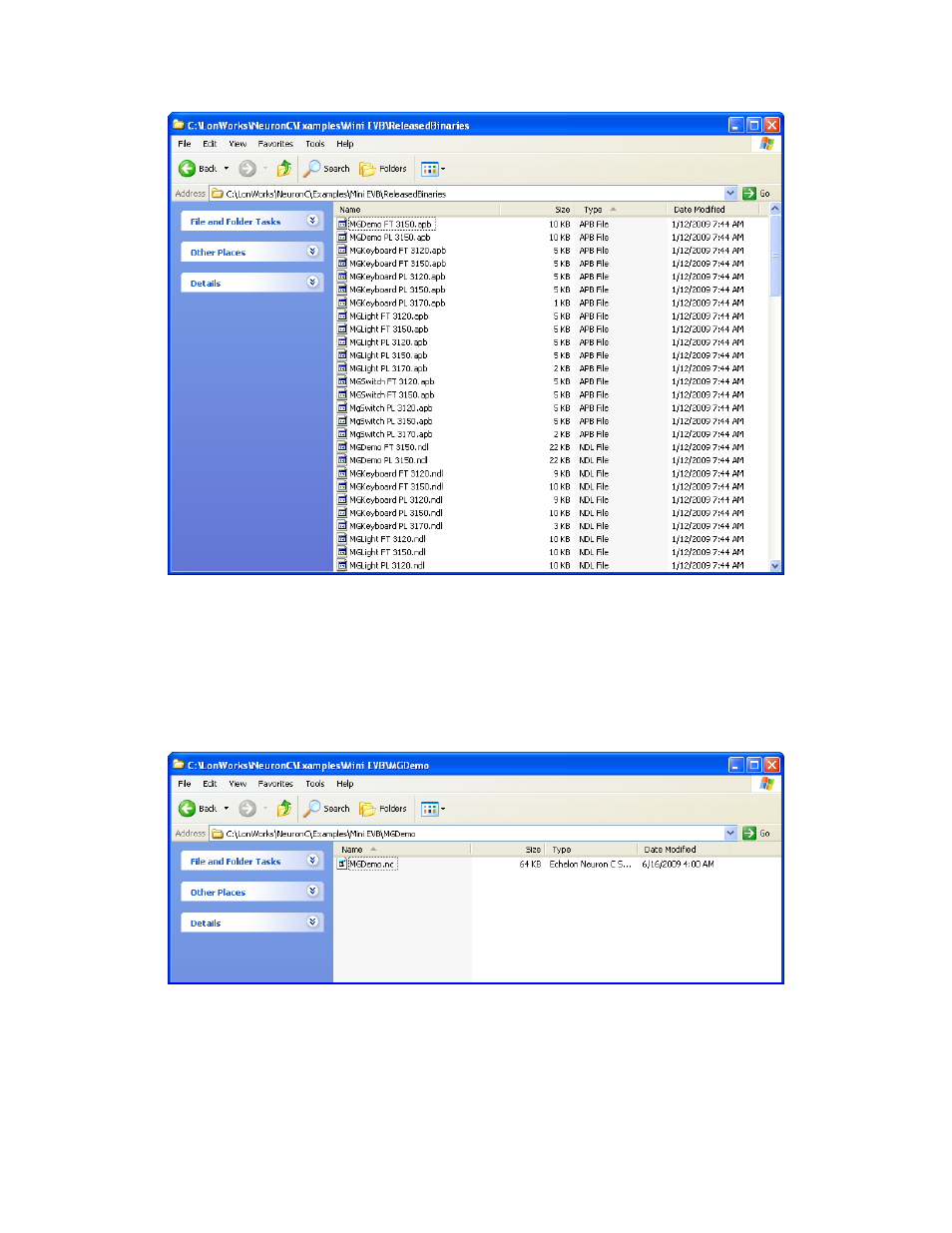

Figure 1.1 Mini FX/PL Example Application Image File Location
The Neuron C source files (.nc extension) for the Mini FX/PL examples are stored in
separate folders within the L ON W ORKS \NeuronC\Examples\Mini EVB directory (for
example, the MgDemo Neuron C application is stored in the
L ON W ORKS \NeuronC\Examples\Mini EVB\MgDemo folder). Note that the default
L ON W ORKS folder on your computer is typically C:\L ON W ORKS or C:\Program
Files\L ON W ORKS . Figure 1-2 provides an example of the location of the Neuron C source
file for the MgDemo example application.
Figure 1.2 Mini FX/PL Example Source File Location
After you download an example application to the PL 3150/PL 3170EVBs, you can install
and connect the network variables of the example applications in a self-installed
network.
The following sections describe how to do the following:
