Dream Property DM7020 - Manual (Page 53)

- 53 -

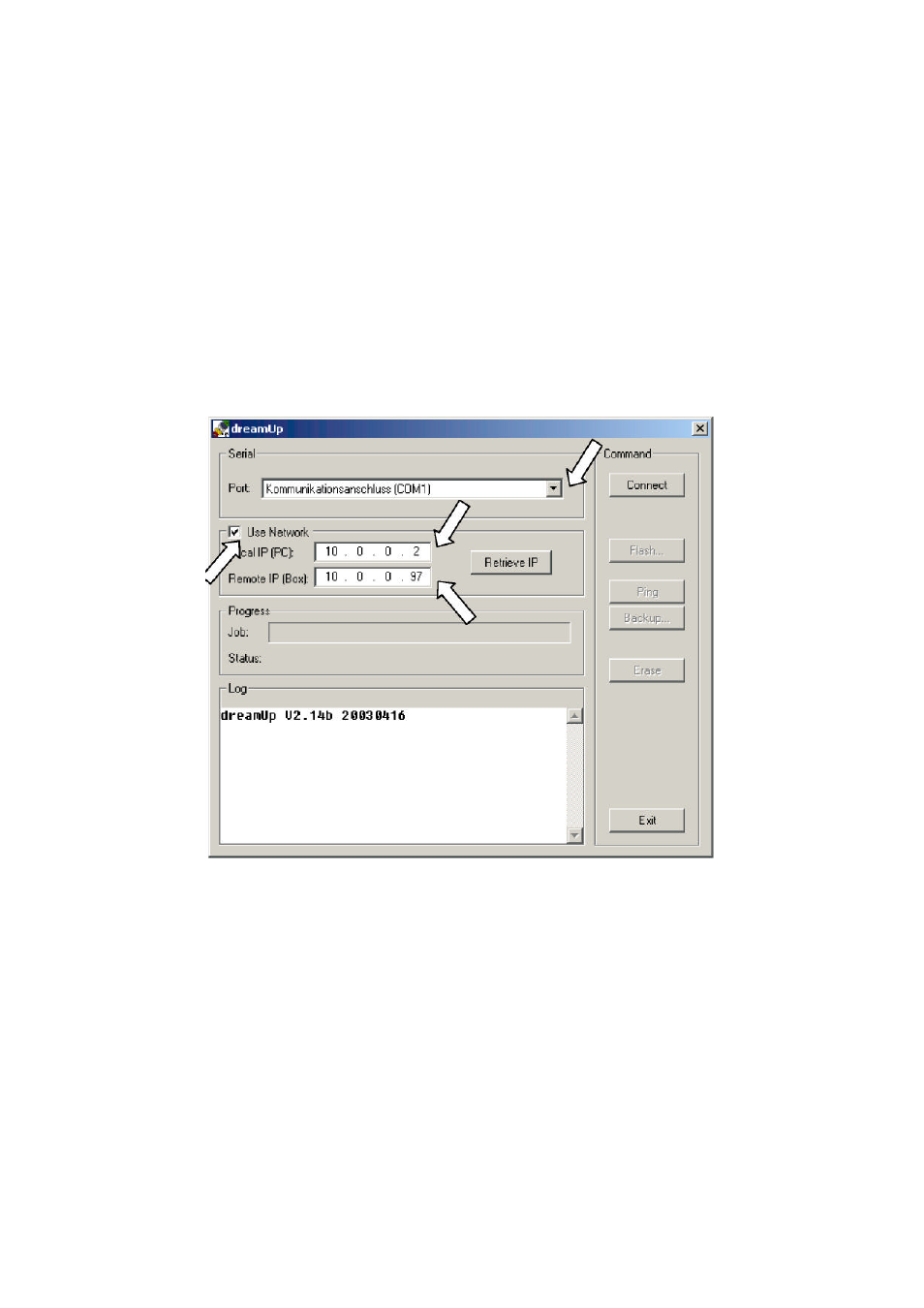

43.1. DreamUp - Preparing DreamUp
Start the Software DreamUp for DM7020 on your PC.
Choose the COM Port, which is connected to the Dreambox.
Make sure the Checkbox "Use Network" is checked. If not, the Software connects only serial. Type in
the IP-Address from your PC "Local IP (PC)".
Type in an IP-Address "Remote IP (Box)" for the Dreambox, e.g. 10.0.0.97.
Make sure the IP-Address is not assigned to another Computer in your LAN, if the Dreambox is
connected over a Hub, Switch or Router with an normal Patchable.
If you are using a Crossover Patchable to connect, then the IP-Address is not that important, but it
must match to the chosen Subnet mask.
DreamUp is now prepared for flashing the image.
