RT55 T4i Operator’s Manual
Specifications - 165
H540 Saw
H540 Saw

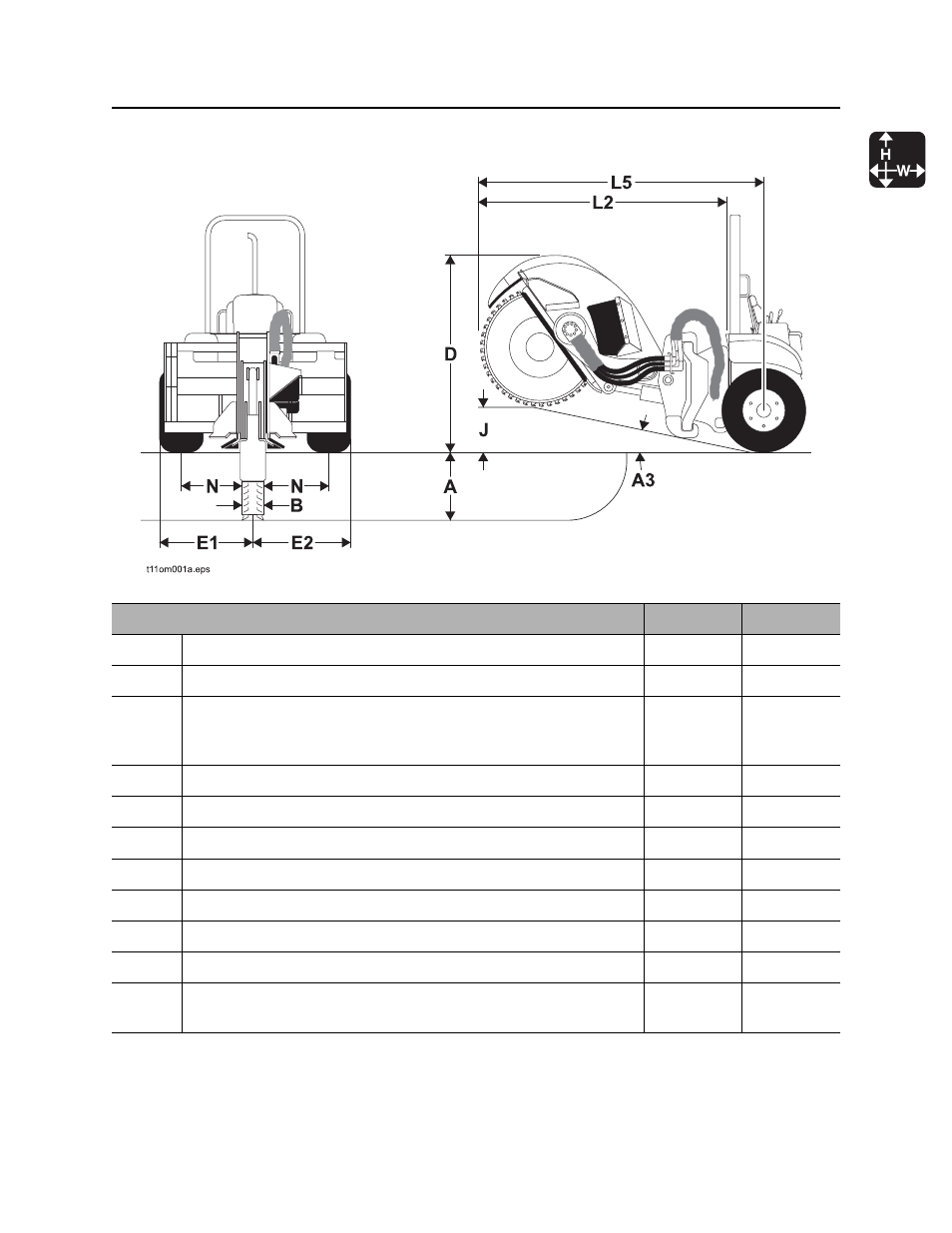

Dimensions U.S. Metric
A Trench depth 26” 660 mm
A3 Angle of departure 20° 20°
B Trench width 5”
6”
7” 127 mm,
152 mm
178 mm
D Transport height - attachment 81” 2 m
Height - wheel on ground 55.5” 1.5 m
E1 Centerline of trench to outside edge, left 33.8” 859 mm
E2 Centerline of trench to outside edge, right 37.2” 945 mm
L2 Overall length - wheel on ground 214” 5.4 m
J Ground clearance at wheel 29.6” 752 mm
Attachment weight 2620 lb 1188 kg
N Soil discharge reach 24-30” 610-762
mm
