Ditch Witch P80 - Manual (Page 61)

Specifications - 60
P80/PP25 Operator’s Manual
P80 w/Trench Box
CMW
P80 w/Back Brace

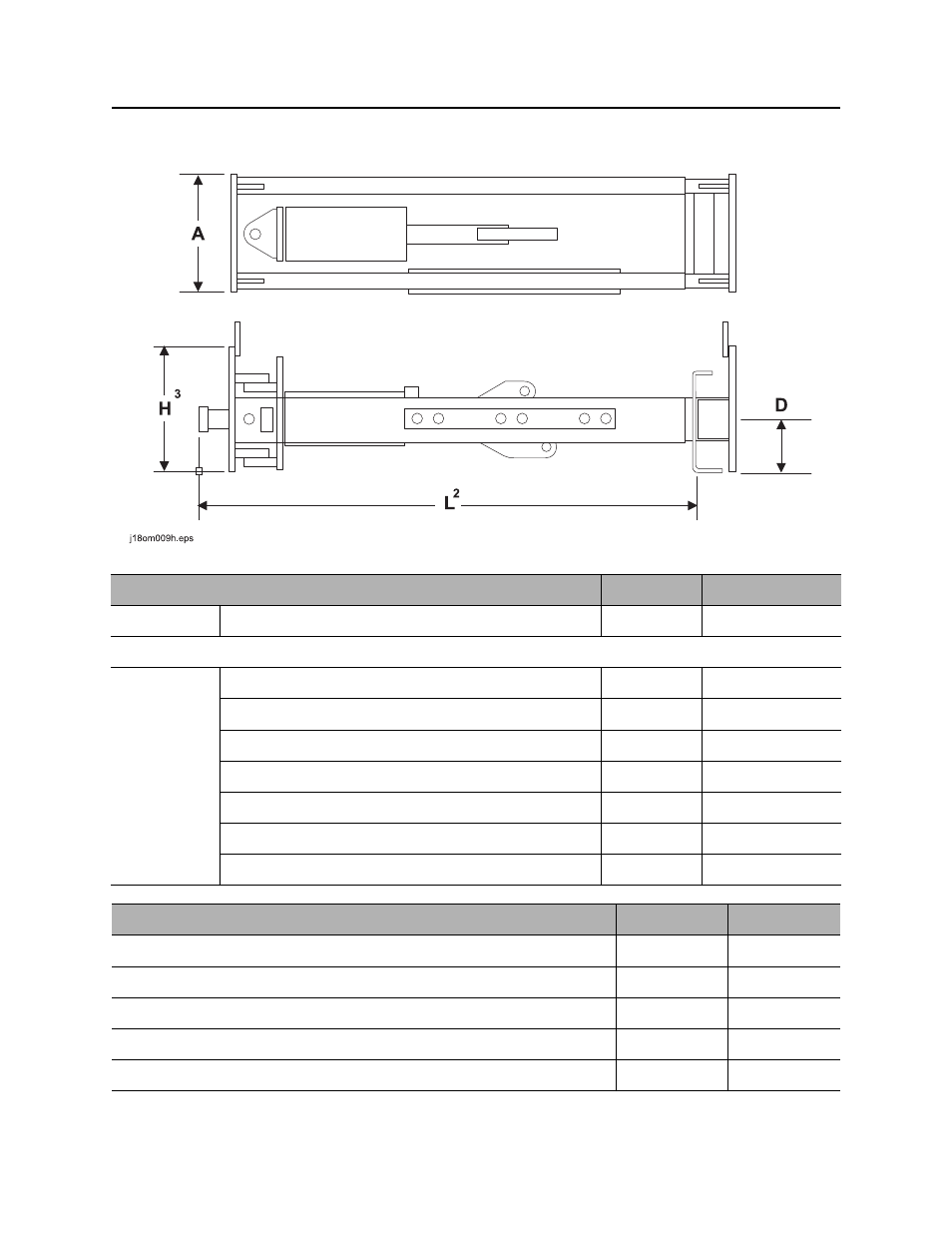

Dimensions U.S. Metric
P80 Basic weight 253 lb 115 kg
Back Brace
L2, Length, min to max 72-100 in 1800-2500 mm
A, Width 17 in 430 mm
H3, Height 18 in 450 mm
D, Height from base to centerline of bore 7.6 in 190 mm
Level adjustment height 6 in 150 mm
Weight, back brace 440 lb 200 kg
Operating weight w/P80 installed 704 lb 320 kg
Operational U.S. Metric
Stroke, each cycle 9 in 229 mm
Bore diameter, max. 13 in 325 mm
Hydraulic flow, min to max 5-20 gpm 20-75 L/min
Hydraulic pressure, max 2500 psi 1723.8 bar
Cylinder force at 2500 psi 81,360 lb 362 025 N
