P80/PP25 Operator’s Manual
Controls - 23
P80 Rod Pusher
CMW

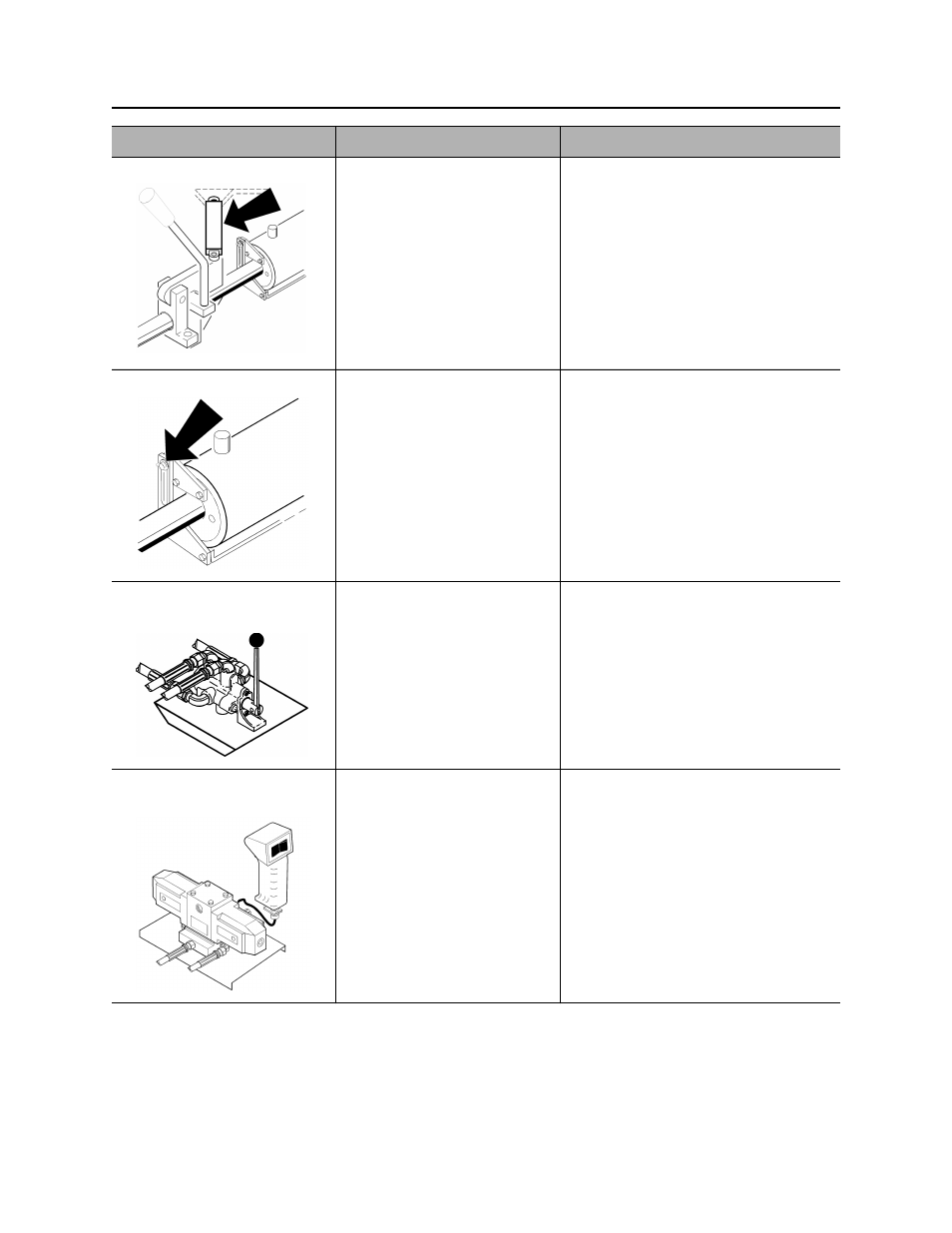

2. Rotation Device This control rotates rod as it is
pushed or pulled. Disengage device to steer rod.
3. Level Adjusting Screw This control allows the unit to
be adjusted to match grade of
bore.
• Loosen wing nut.
• Adjust unit.
• Tighten wing nut.
IMPORTANT: Trench box mounted
rod pushers do not have level
adjusting screws. Entire trench box
must be adjusted to set grade of bore.
4. Mechanical Hydraulic
Control (Optional) This lever operates the
hydraulic cylinder.
• Engage hydraulic control.
• Move jaw lever to push or
pull rod.
5. Electric Hydraulic
Control (Optional) This lever operates the
hydraulic cylinder.
• Engage hydraulic control.
• Move jaw lever to push or
pull rod.
Item Description Notes
