P80/PP25 Operator’s Manual
Specifications - 59
P80 w/Trench Box
CMW

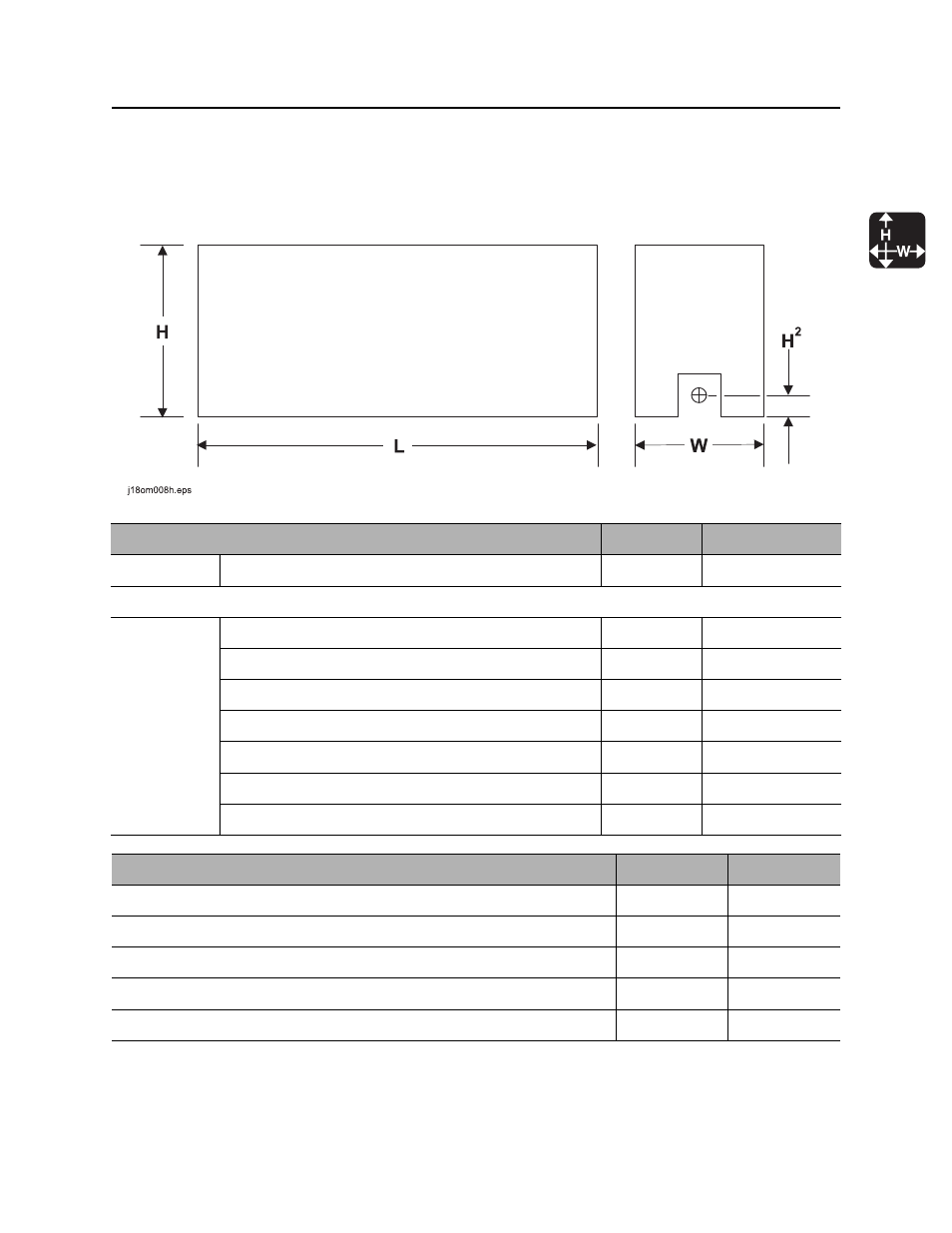

Specifications
P80 w/Trench Box
Dimensions U.S. Metric
P80 Basic weight 253 lb 115 kg
Trench Box
L, length 108 in 2750 mm
W, width 36 in 920 mm
H1, height 48 in 1220 mm
H2, Height from base to centerline of bore 8.4 in 213 mm
Weight, trench box 930 lb 420 kg
Operating weight w/P80 installed 1240 lb 560 kg
Operating weight w/P80 and 42 4-ft rods 2700 lb 1225 kg
Operational U.S. Metric
Stroke, each cycle 9 in 229 mm
Bore diameter, max. 13 in 325 mm
Hydraulic flow, min to max 5-20 gpm 20-75 L/min
Hydraulic pressure, max 2500 psi 1723.8 bar
Cylinder force at 2500 psi 81,360 lb 362 025 N
