JT1220 Mach 1 Operator’s Manual
Prepare - 73
Plan Bore Path
CMW

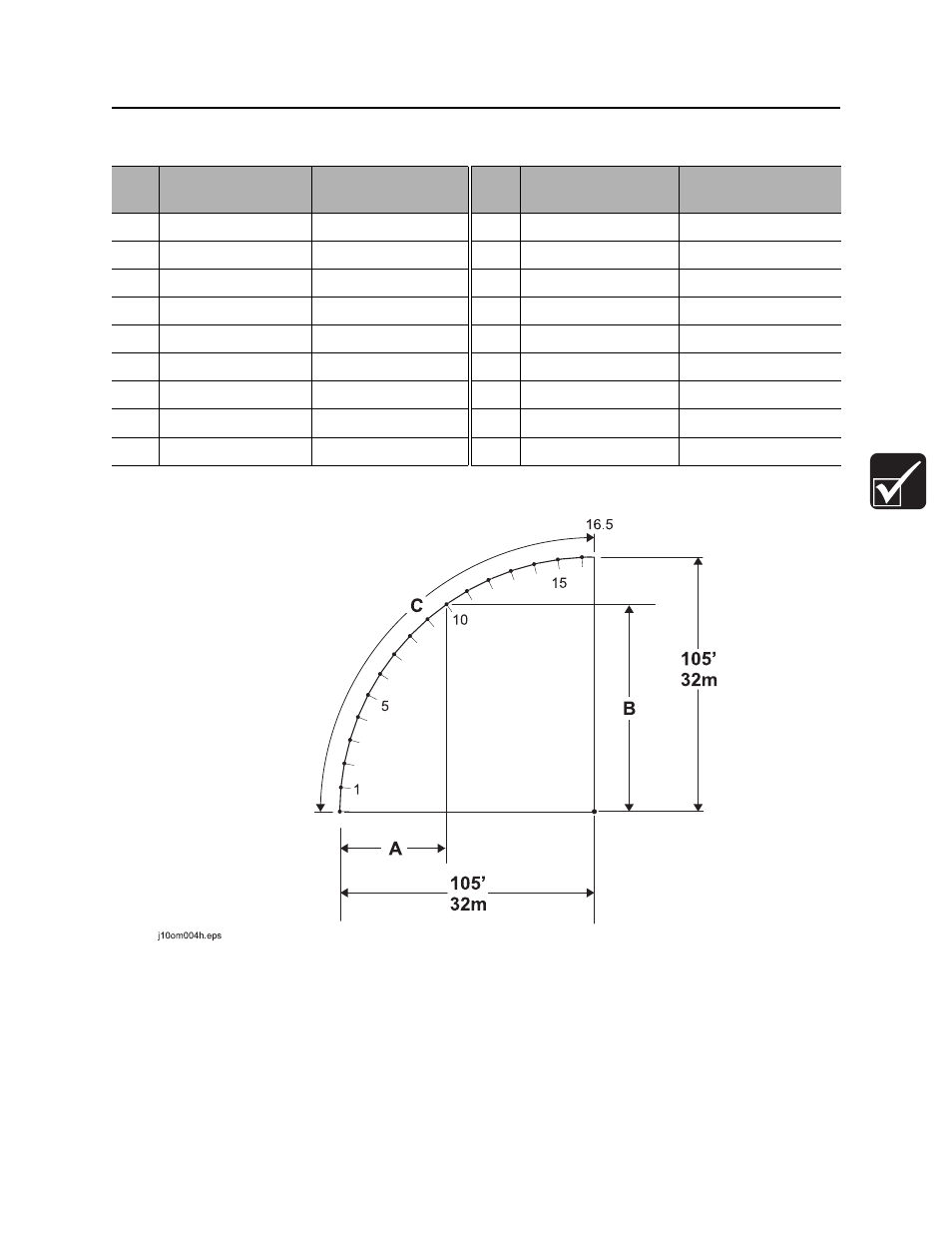

Pipe-By-Pipe Bend Limits
Pipe
(C)
Forward (B) Deflection (A) Pipe
(C)
Forward (B) Deflection (A)
1 10 ft 0 in (3.0 m) 0 ft 6 in (0.1 m) 10 85 ft 6 in (26.1 m) 44 ft 1 in (13.4 m)
2 19 ft 10 in (6.1 m) 1 ft 11 in (0.6 m) 11 90 ft 11 in (27.7 m) 52 ft 6 in (16 m)
3 29 ft 7 in (9.0 m) 4 ft 3 in (1.3 m) 12 95 ft 6 in (29.1 m) 61 ft 5 in (18.7 m)
4 39 ft 0 in (11.9 m) 7 ft 6 in (2.3 m) 13 99 ft 3 in (30.3 m) 70 ft 8 in (21.5 m)
5 48 ft 1 in (14.6 m) 11 ft 8 in (3.6 m) 14 102 ft 0 in (31.1 m) 80 ft 3 in (24.5 m)
6 56 ft 9 in (17.3 m) 16 ft 8 in (5.1 m) 15 103 ft 11 in (31.7 m) 90 ft 1 in (27.5 m)
7 64 ft 11 in (19.8 m) 22 ft 5 in (6.8 m) 16 104 ft 10 in (31.9 m) 100 ft 0 in (30.5 m)
8 72 ft 5 in (22.1 m) 29 ft 0 in (8.8 m) 16.5 105 ft 0 in (32 m) 105 ft 0 in (32 m)
9 79 ft 4 in (24.2 m) 36 ft 3 in (11 m)
Pipe 10 is illustrated.
