Controls - 28
JT1220 Mach 1 Operator’s Manual

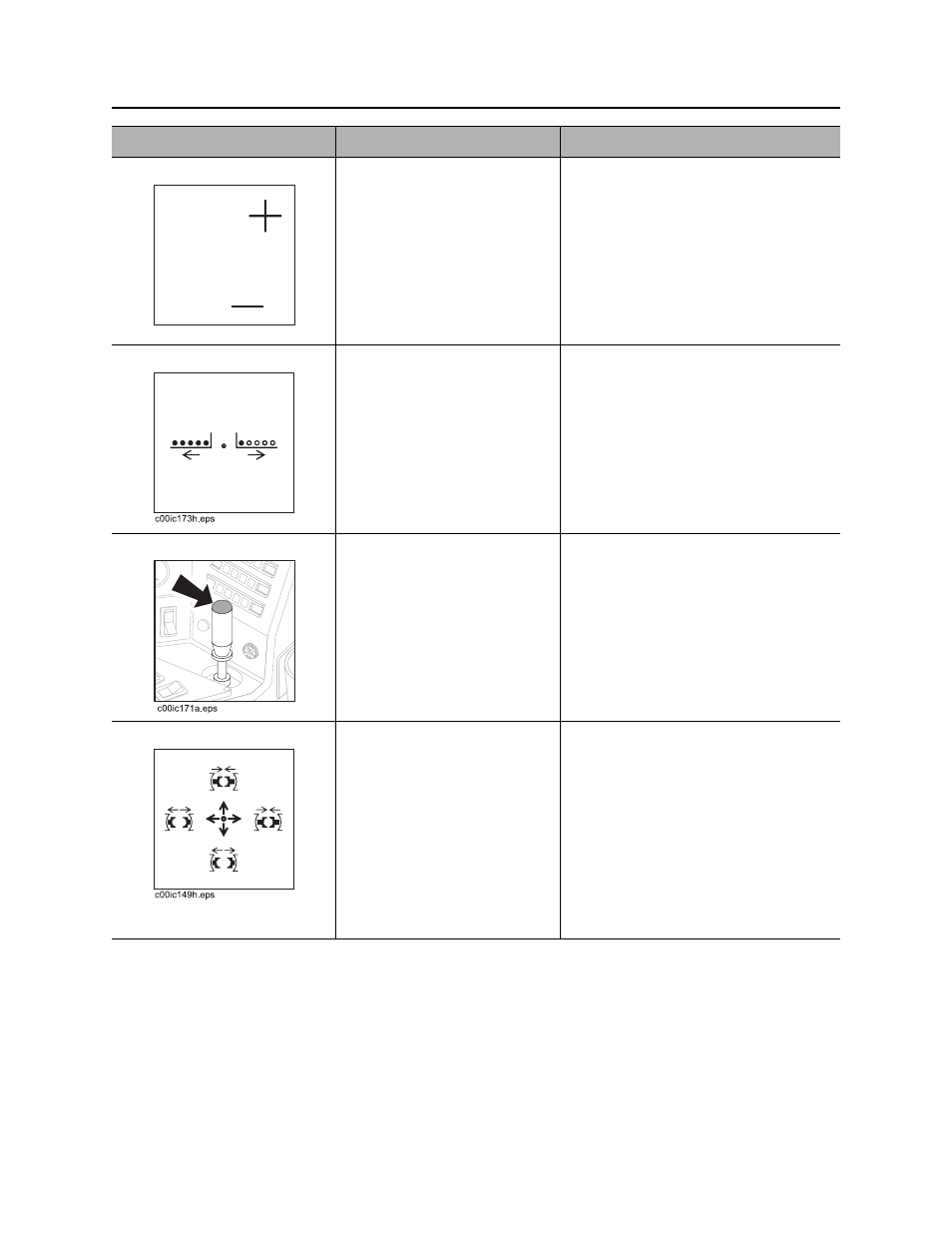

Left Control Console
CMW
2. Set/resume switch To resume operation or
increase operation levels,
press top.
To set operating conditions or
reduce operation levels,
press bottom.
See “Cruise Control” on page 148.
3. Pipe box switch To shift pipe box toward
operator, press left side.
To shift pipe box away from
operator, press right side.
IMPORTANT: See “Shift Pipe Box” on
page 143.
4. Resume switch To resume operation, press. See “Add Pipe” on page 104.
5. Wrench control To clamp front wrench, move
to right.
To unclamp front wrench,
move to left.
To clamp and rotate rear
(rotating) wrench, push.
To unclamp rear (rotating)
wrench, pull.
Item Description Notes
RESUME
/
SET
/
c00ic113h.eps
