Ditch Witch JT1220 User Manual
Page 173
Service - 172
JT1220 Mach 1 Operator’s
Manual
Startup/10 Hour
CMW

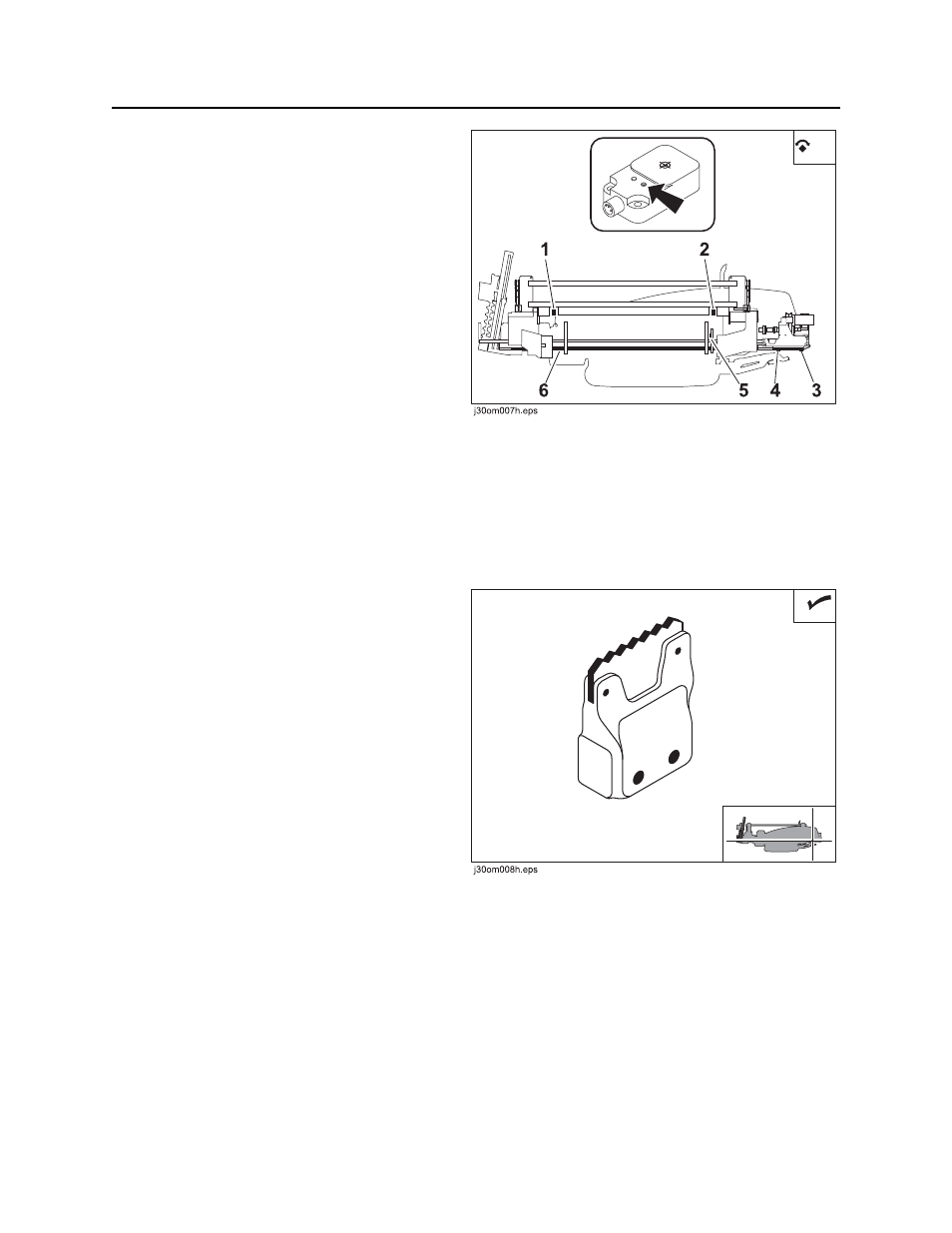

Test Control Switches
Check control proximity switches before startup
and every 10 hours of operation and clean or
replace as needed.
To test
1.
Turn ignition switch to ON. Do not start engine.
2.
Place metal object above target on each switch.
3.
If yellow LED on switch lights, switch sensor is working.
Check Pipe Lube Applicator
Check pipe lube applicator before startup and
every 10 hours of operation. Replace if damaged
or badly worn.
1.
front pipe box
switch
2.
rear pipe box
switch
3.
rear stop switch
4.
rear home
switch
5.
shuttle position
switch
6.
front home
switch
