JT1220 Mach 1 Operator’s Manual
Controls - 27
Left Control Console
CMW
Left Control Console

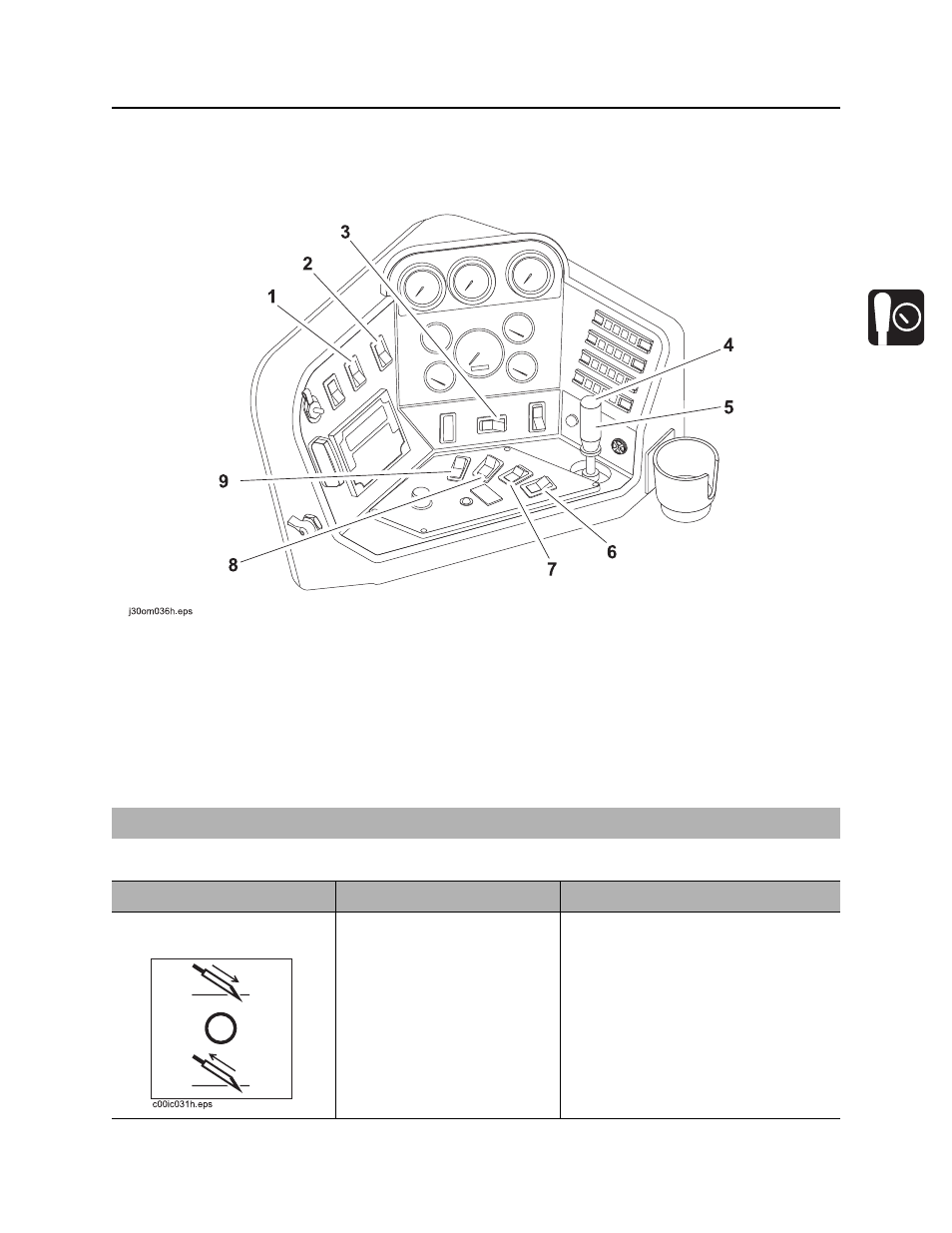

Pipeloading Controls
1. Add pipe/manual/remove pipe switch
2. Set/Resume switch
3. Pipe box switch
4. Resume switch
5. Wrench control
6. Pipe lift switch
7. Pipe shuttle switch
8. Pipe gripper switch
9. Pipe lubricator switch
IMPORTANT: Switch 1 will not function unless unit is equipped with pipeloader automation option.
Item Description Notes
1. Add pipe/manual/
remove pipe switch To select “add pipe”
automated pipeloader
function, press top.
To use manual pipeloader
controls, move to center.
To select “remove pipe”
automated pipeloader
function, press bottom.
See “Add Pipe” on page 104.
See “Remove Pipe” on page 111.
