iLC2ST User Manual
13
Display and Controls
VACUUM FLUORESCENT DISPLAY - A Multi-function display will indicate current status of the unit
and programming menus.
ROTARY ENCODER - A stepping optical rotary encoder is used to select values or navigate the menu
system.
SELECT KEY - Used to enter a menu or confirm a selection. To enter the main system menu, simply
press ENTER while iLC2ST is on the HOME screen.
MAIN KEY - A press of this button will return iLC2ST to the home screen or enter home screen
selection mode.
RETURN KEY – This key will return to a previous menu, or if you are entering a value, exit the field and
return the value to the last programmed state.

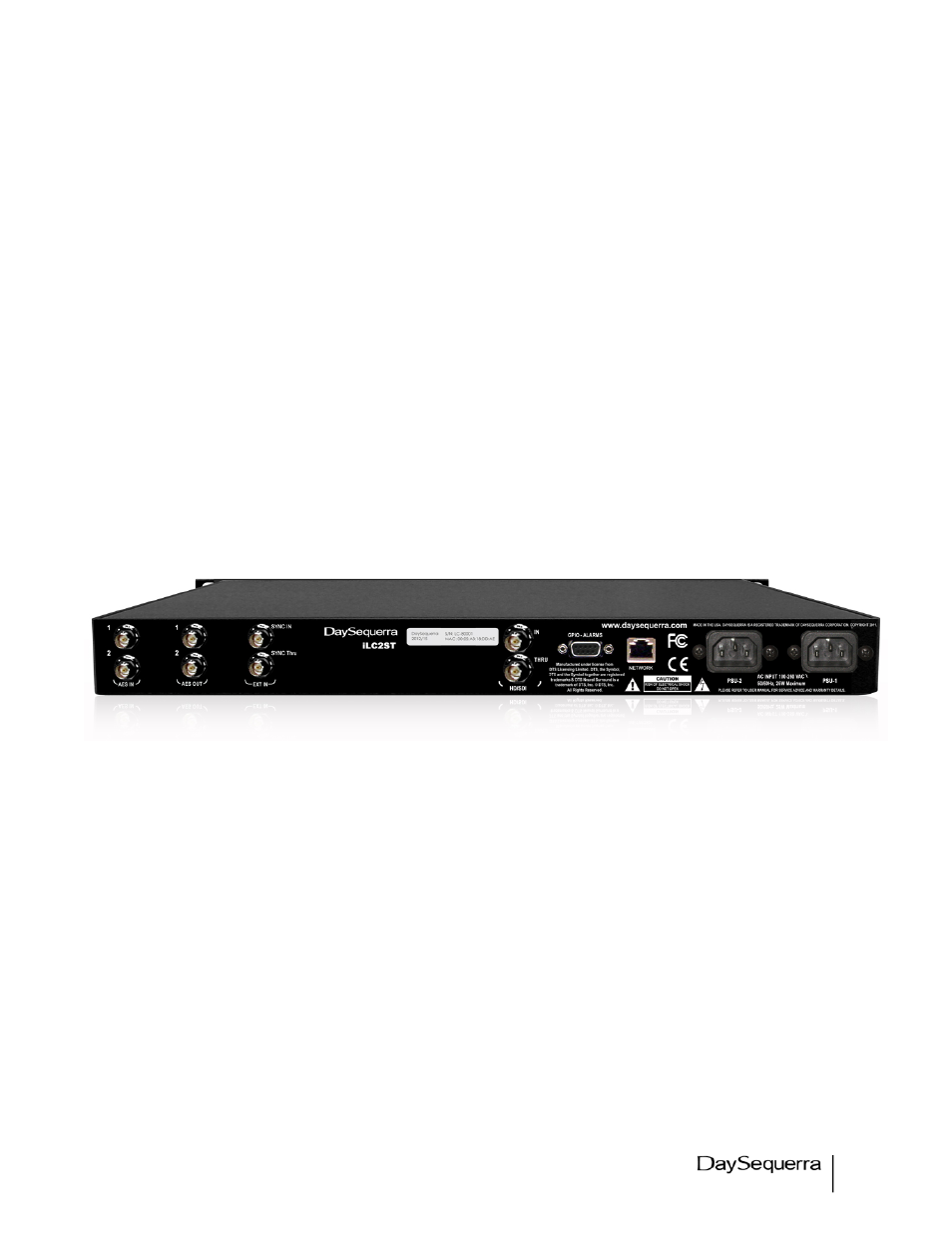

Rear Panel
AES INPUTS - Two 75 BNC connectors will accept the AES3 digital audio stream. For ILC2ST to work
properly, the following channel inputs must be maintained:
• 1/2 - Left and Right Channel – Stereo A
• 3/4 - Left and Right Channel – Stereo B
AES OUTPUTS – Two 75 BNC connectors output the AES3 digital audio stream. All processed audio
is output to these connectors regardless of the input source.
• 1/2 - Left and Right Channel – Stereo A
• 3/4 - Left and Right Channel – Stereo B
AES SYNC – One 75 BNC input and one 75 BNC passive output are present for an external clock
signal. Clock recovery is possible from an AES-3, AES-11 or Word Clock signals.
HD/SDI I/O (option 01) - Two 75 BNC connectors handle HD/SDI I/O. One input port as well as one
passive output is present when this option is installed. Supported formats include SMPTE 259M,
