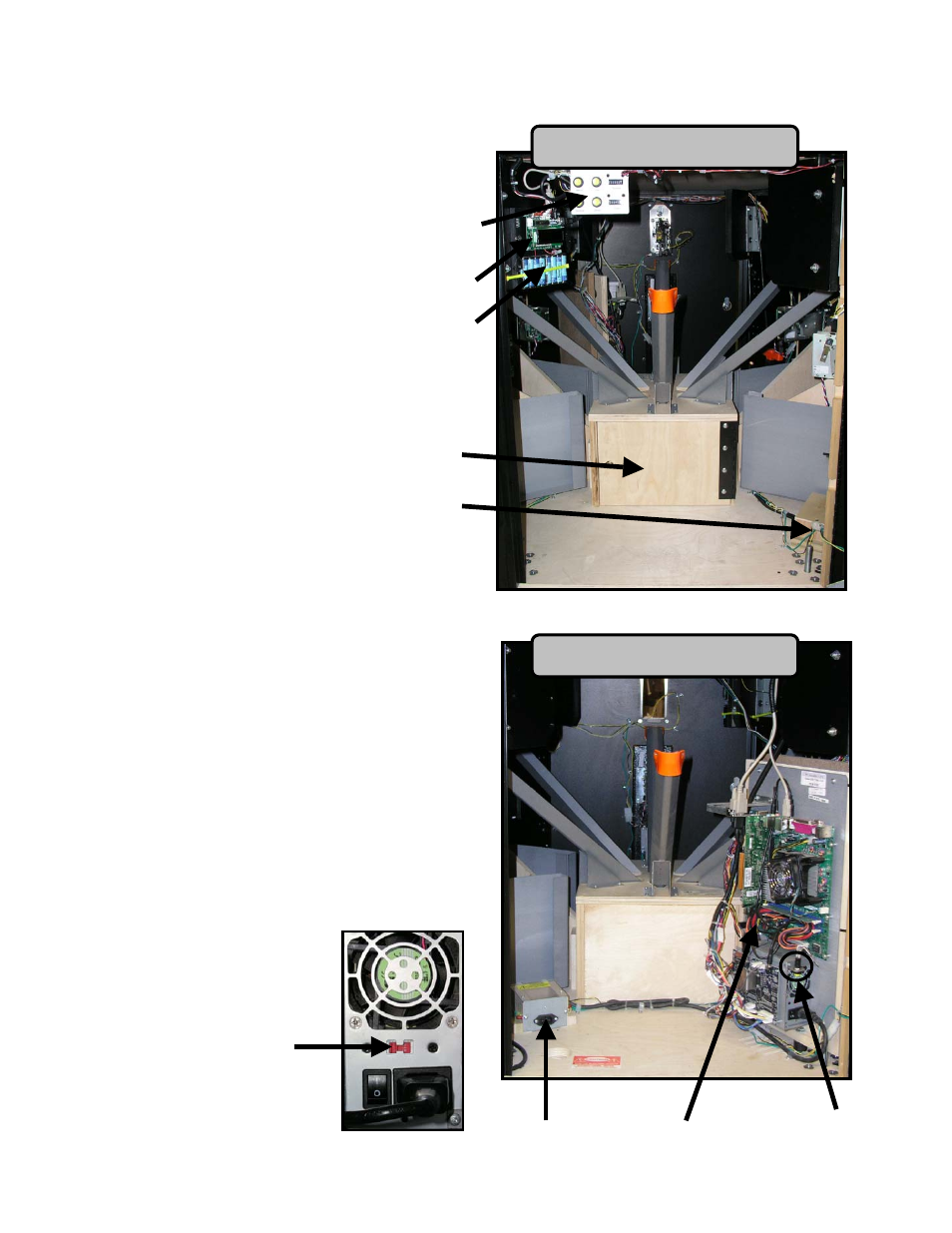

6. Service Door and Operator Door
GalacTix has two doors on opposite sides, and each has its own purpose.
The Operator Door opens to the Cash Box,
Service Panel, Projector PCB, and the
backside of the Power Switch.
See page 9 for information
on the Projector PCB and
Rechargeable Battery Pack.
The Service Panel is used
to access the Menus and
holds the Coin and Ticket
Meters. See page 13 for
Service Panel layout and
menu information
.
See page 50 for a
complete wiring diagram
The Service Door is used to access the
Computer Shelf and Power Inlet Plate.
The Service Door is marked with a red
high voltage warning label below the
ticket door.
The Computer Shelf is mounted
on the right side behind the
Service Door. There is a yellow
power button (circled in the image)
that is used to turn on the computer
if the BIOS battery needs to be
replaced.
Cash Box
Power Switch
Under Cabinet
Projector PCB
Behind Operator Door
Behind Service Door
Service Panel
Power Inlet Plate
PC Power
Button Computer Shelf
Battery Packs
Power Supply Voltage Switch
115V / 230V
