6
4. Connecting the Fins
To protect the fins from warping during shipment, two fins are not attached to the
cabinet. Both fins connect to the Door Hinges.
REQUIRES 1 PERSON

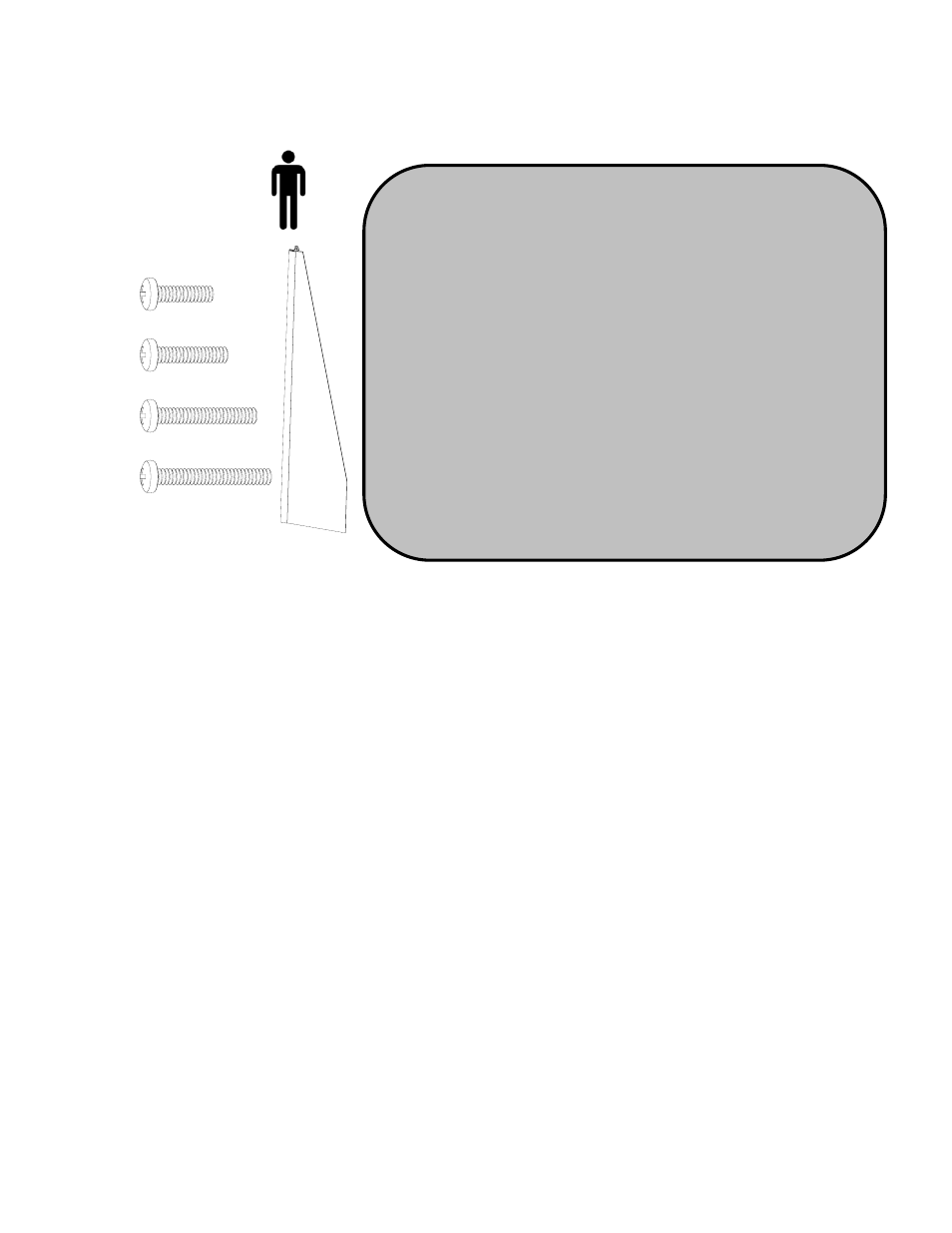

The two fin assemblies connect to the two Door
Hinges. Locate the bag of fasteners labeled Fins.
This bag includes (2) 6-32 x 1/2” Self-Tapping
Screws, (2) 6-32 x 5/8” Self-Tapping Screws, (2) 6-
32 x 7/8” Self-Tapping Screws, and (2) 6-32 x 1”
Self-Tapping Screws.
Open one of the doors to the cabinet. Hold the Fin
Assembly in place on the Door Hinge. Use a 6-32 x
1/2" Self-Tapping Screw to attach it through the top
hole of the fin bracket. Use the 5/8” screw through
the second hole, the 7/8” through the third, and the 1”
screw in the bottom hole. Repeat this on the other
Door Hinge to connect the other Fin Assembly.
2 x
