2. Connecting the Projector and Mirror Box
The projector and mirror box are both shipped under the Nose Cone. The Projector
Mounting Board and Mirror Box have dowels so that they will align properly. BE SURE
TO ALIGN DOWELS WITH THE CORRESPONDING HOLES.
REQUIRES 1 PERSON

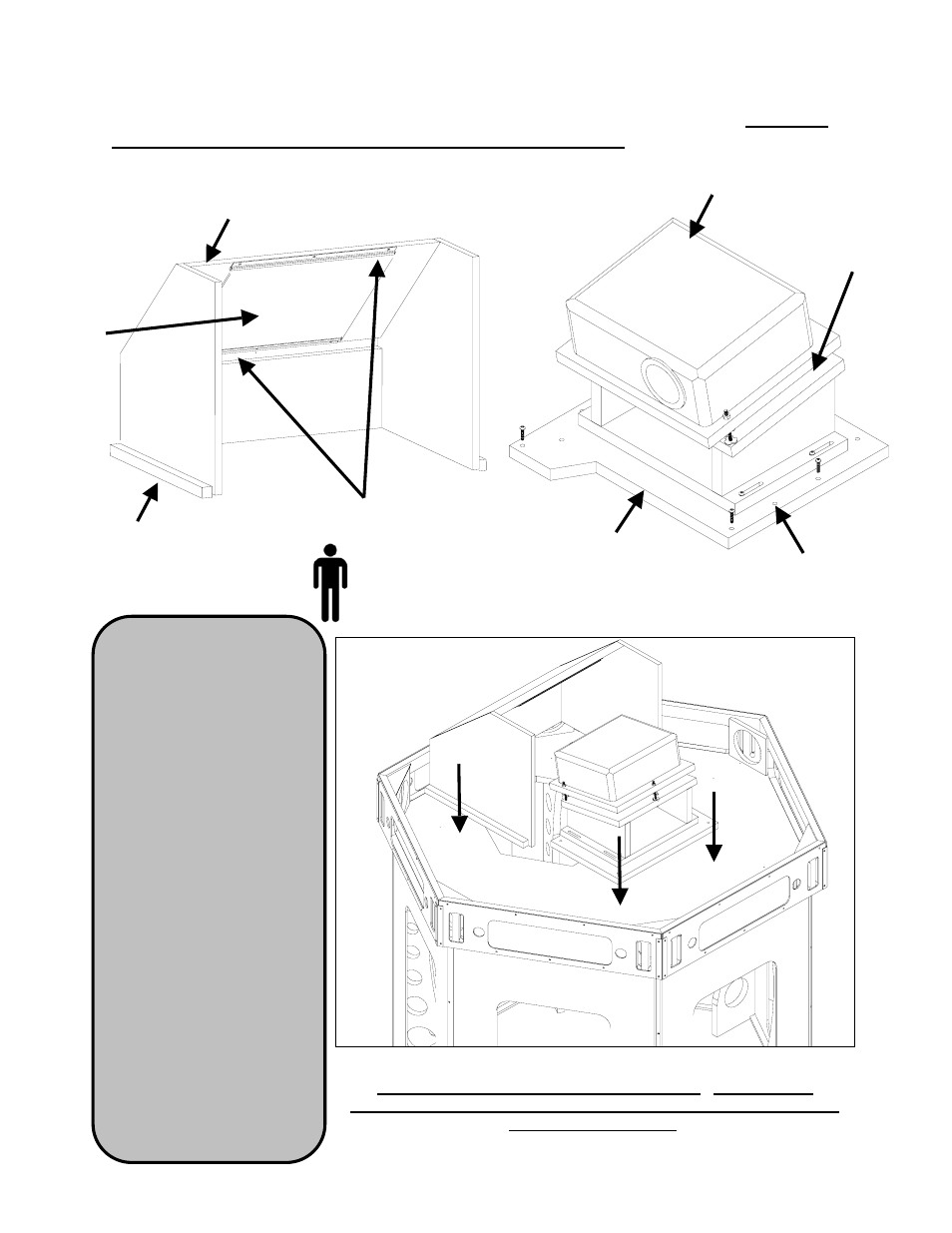

Set the Mirror Box in
position, with the Mirror
over the projection
cutout, making sure the
dowels go in their holes.
Secure it to the Top
Projector Cabinet with
four of the screws in the
bag labeled Projector
and Mirror.
Next, set the complete
Projector Mount
Assembly in position,
with the lens aimed at
the Mirror. When the
dowels are in the holes,
secure the assembly
with four of the screws
in the bag labeled
Projector and Mirror.
Projector
Projector Mount
Projector Base
Mirror Mount Brackets
Mirror Box
Mirror
Dowel Goes In
Center Hole
Dowel Goes In
Center Hole
The projector has been set up at the factory. Do not adjust
position until you have connected the projector to the cabinet and
turned the machine on.
