Touch Pad Control
Setup & Commissioning
TEK600 Series Control Page 22
Diagnostic Mode
Installer Maintenance Parameter Duration
Fill Valve 1 10 Minutes
Fill Valve & Pump 2 20 Minutes
Setting the Water Level & Bleed rate
To enter into the installer maintenance mode to check
water level and pump function, the following steps must be
used:-
STEP 1 Ensure the control is in the OFF mode.

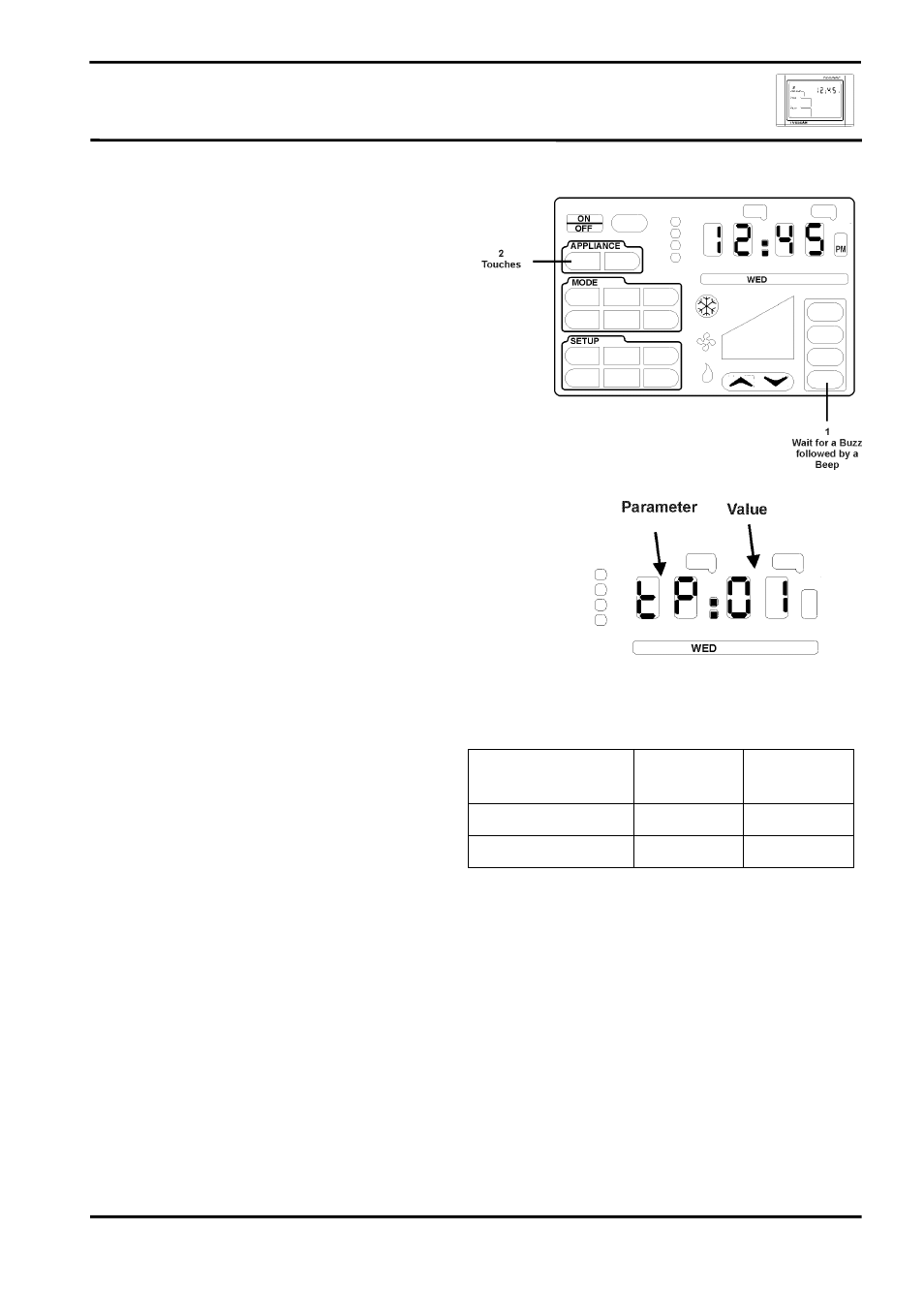

STEP 2 A series of unseen icons must be pressed
1. Press and hold the ZONE 4 icon
allowing for a BUZZ followed by a BEEP.
2. In quick succession press the unseen
APPLIANCE COOL icon 2 times.
3. If successfully executed the clock LEDs
will display tP:01.
4. If unsuccessful repeat 1 and 2 of STEP 2.
STEP 3 select the LED display changed to E:_
_.
STEP 4 Press ENTER. The display will now
change to 1:00.
STEP 5 Press ENTER.
STEP 6 Press ENTER.
STEP 7 To select the other diagnostic parameter
repeat Step 4 – 7.
STEP 8 Press FINISH to exit.
