Touch Pad Control
Setup & Commissioning
TEK600 Series Control Page 15
Control Location
1. Locate the wall switch on an internal wall of a conditioned room of the home, 1.5m above the floor level, in an
easily accessible location as agreed with the customer.
2. The controller must not be installed into areas where a ceiling register may blow cold air over the control, or
installed near appliances that may generate heat. This will cause erratic thermostat operation.

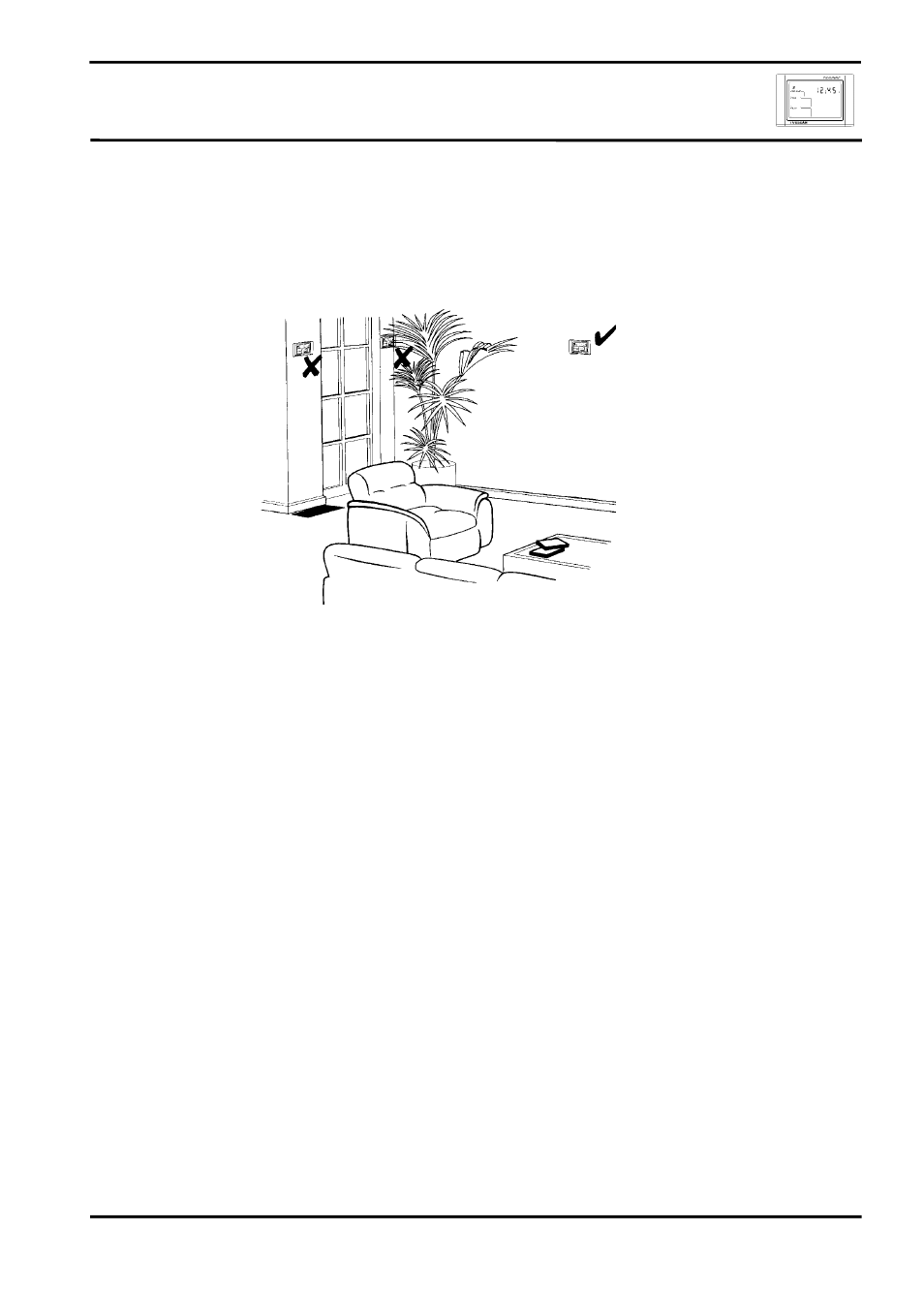

The thermostatic wall-mounted controllers should be in a
conditioned room in a location that enables correct thermostat
operation. Ensure that the location is suitable for the customer
Installing the Control
The wall controller is provided with a 20-metre loom to connect the wall control to the control box in the unit.
Follow these instructions for best installation:
1. Connect the low voltage loom to one of the communication points in the unit control box. Refer to wiring diagram
2.
Pull the cable through to the designated point for the permanent application of the wall control.
3.
Mount the control base plate to the wall.
4.
Connect the loom to the wall control and fit the control panel to the base plate.
5.
The Programmable and Touch Pad wall controls can control up to 4 units. The manual control can only control one
unit.
