Usb box header: usb1, Serial port box header: com3, com4 – Axiomtek GOT5100T-834 User Manual
Page 29
GOT5100T-834
User’s Manual
Hardware and Installation
23

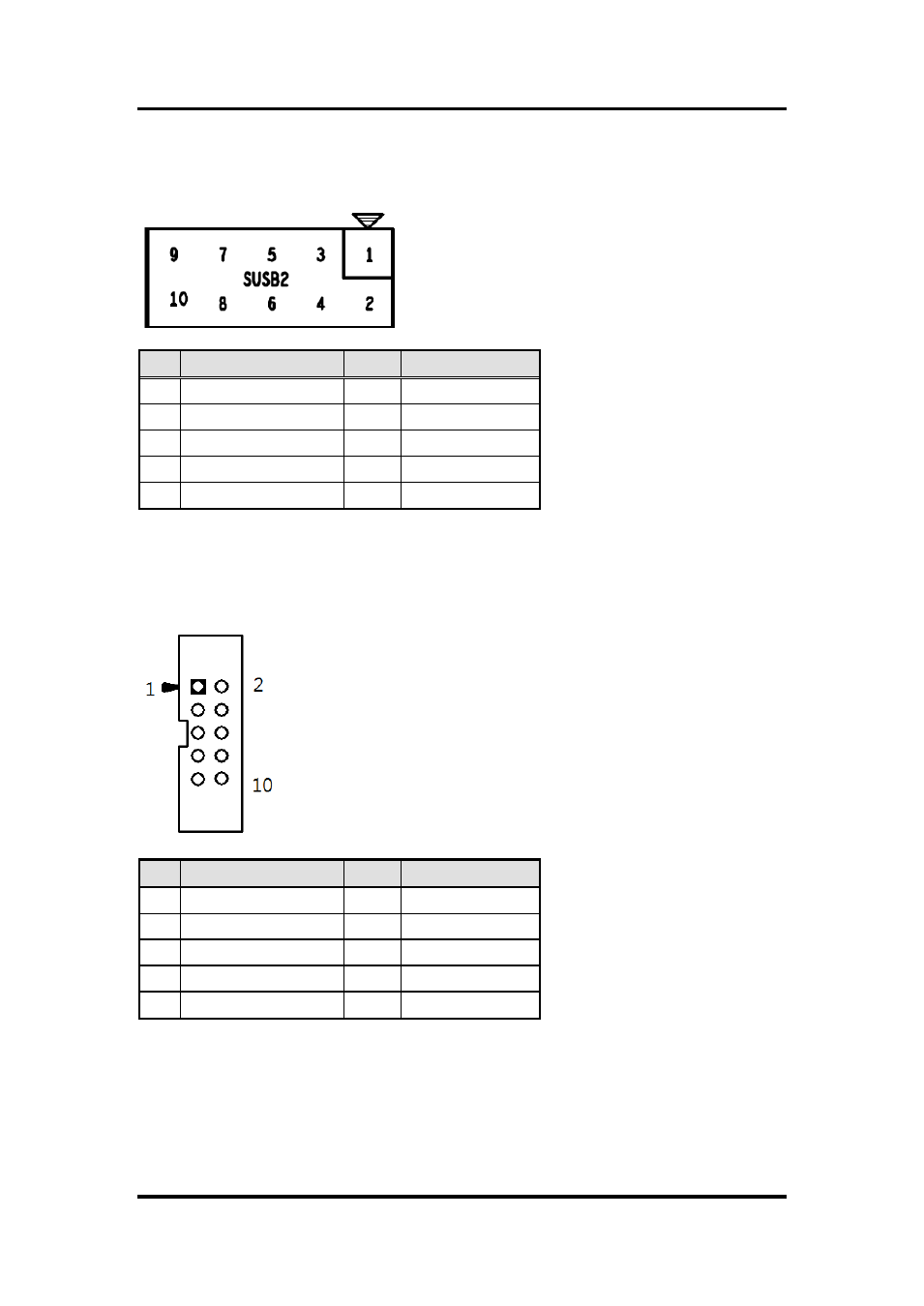

USB box header: USB1
USB1 Pin Assignment
Pin Description
Pin
Description
1
+5V
2
+5V
3
USB-
4
USB-
5
USB+
6
USB+
7
GND
8
GND
9
GND
10
GND
Serial Port box header: COM3, COM4
COM3, COM4 Pin Assignment
Pin Description
Pin
Description
1
DCD
2
DSR
3
RX
4
RTS
5
TX
6
CTS
7
DTR
8
RI
9
GND
10
NC
