GOT5100T-834
User’s Manual
18
Hardware and Installation

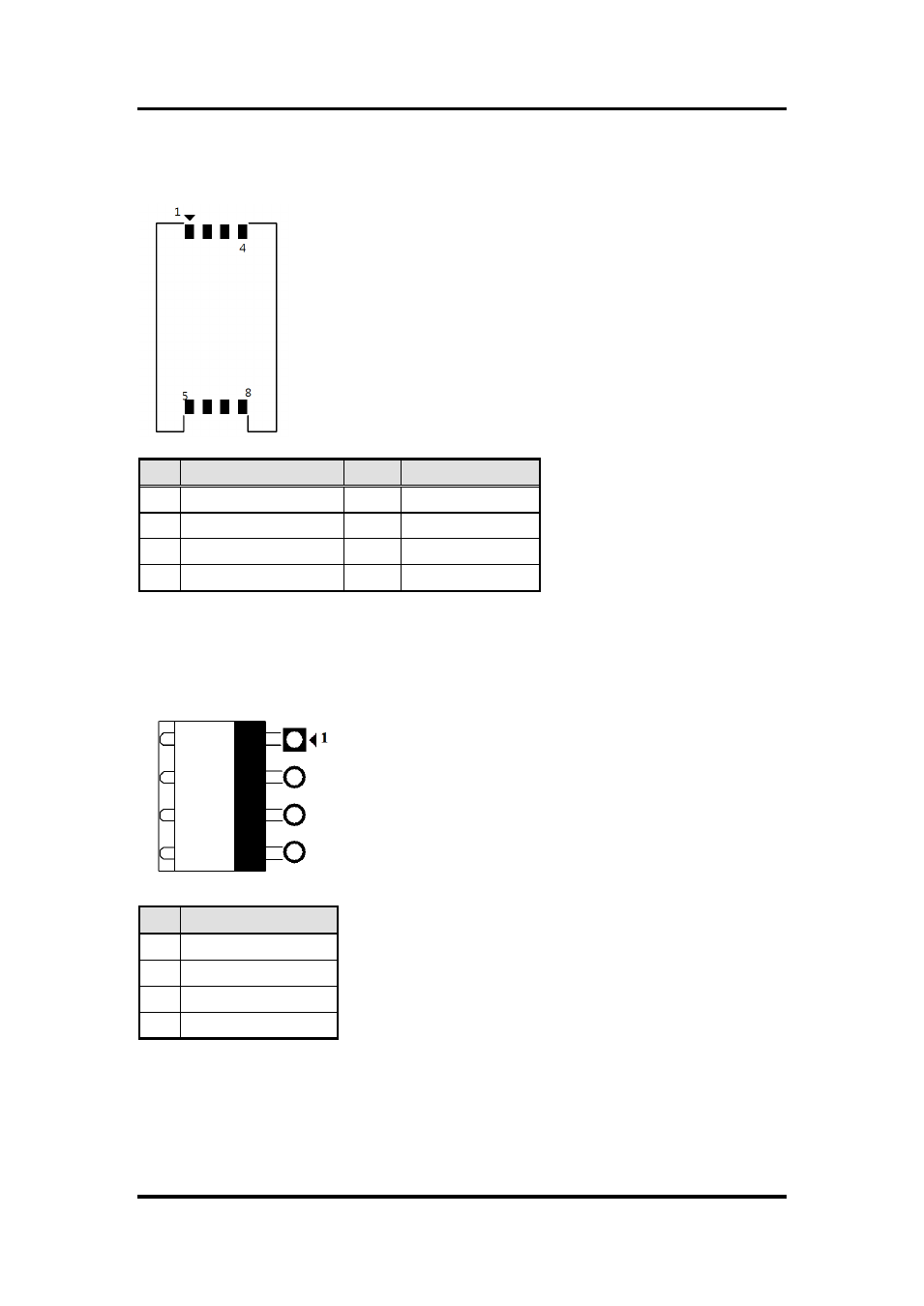

SIM card connector: CN7
CN7 Pin Assignment
Pin Description
Pin
Description
1
UIM PWR
5
GND
2
UIM RST
6
UIM VPP
3
UIM CLK
7
UIM DATA
4
NC
8
NC
Power connector: CN9
CN9 Pin Assignment
Pin Description
1
DCIN (9V -36V)
2
DCIN (9V -36V)
3
GND
4
GND
