GOT5100T-834
User’s Manual
20
Hardware and Installation

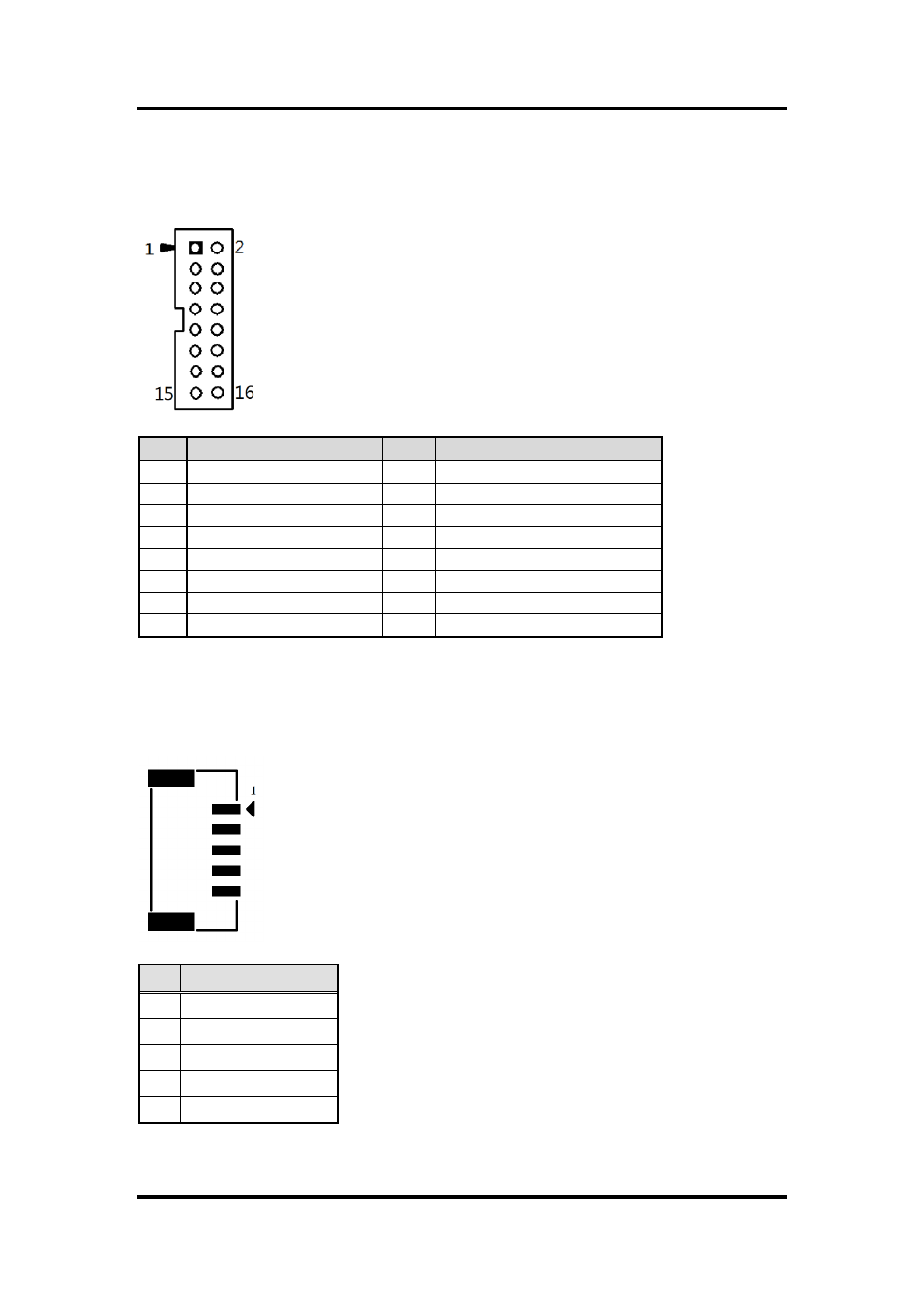

VGA Cable Connector: CN12
CN12 Pin Assignment
USB CONNECTOR (reserved): CN14/CN20
CN14/CN20 Pin Assignment
Pin Description
1
VCC
2
D-
3
D+
4
GND
5
GND
Pin
Signal
Pin
Signal
1
Red
2
GND
3
Green
4
N.C.
5
Blue
6
N.C.
7
VCC
8
DDC DATA
9
GND
10
N.C.
11
GND .
12
Horizontal Sync
13
GND
14
Vertical Sync
15
DCC CLK
16
N.C.
