GOT5100T-834
User’s Manual
Hardware and Installation
17

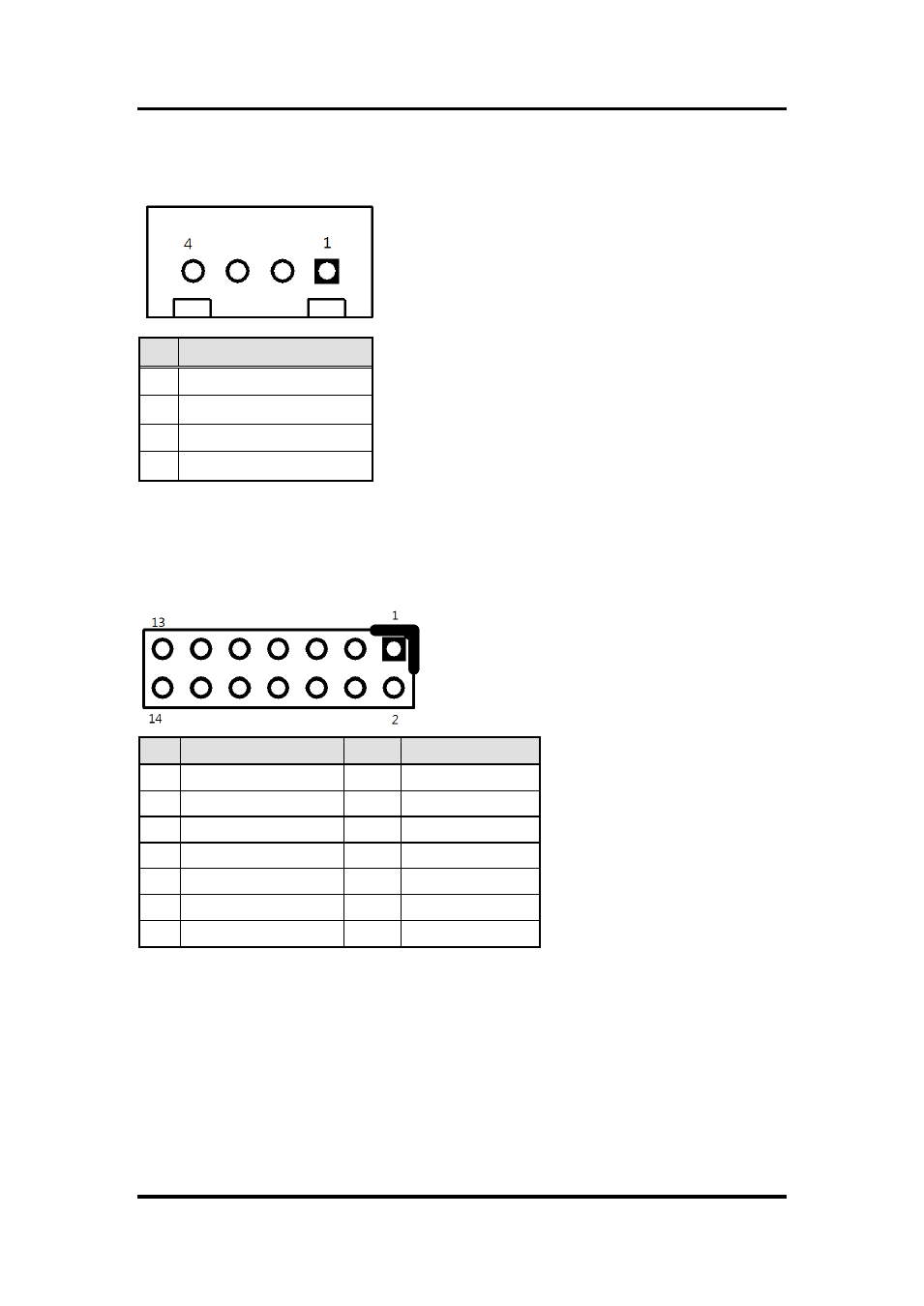

HDD power connector: CN4
CN9 Pin Assignment
Pin Description
1
+12V
2
GND
3
GND
4
+5V
FRONT PANEL pin header: CN6
CN6 Pin Assignment
Pin
Description
Pin
Description
1
+ 5V
2
Beep
3
GND
4
BUZZER
5
GND
6
Beep
7
NC
8
+5V
9
GND
10
PWBTN
11
GND
12
RESET
13
SATA LED
14
+3.3V
