GOT5100T-834
User’s Manual
Hardware and Installation
19

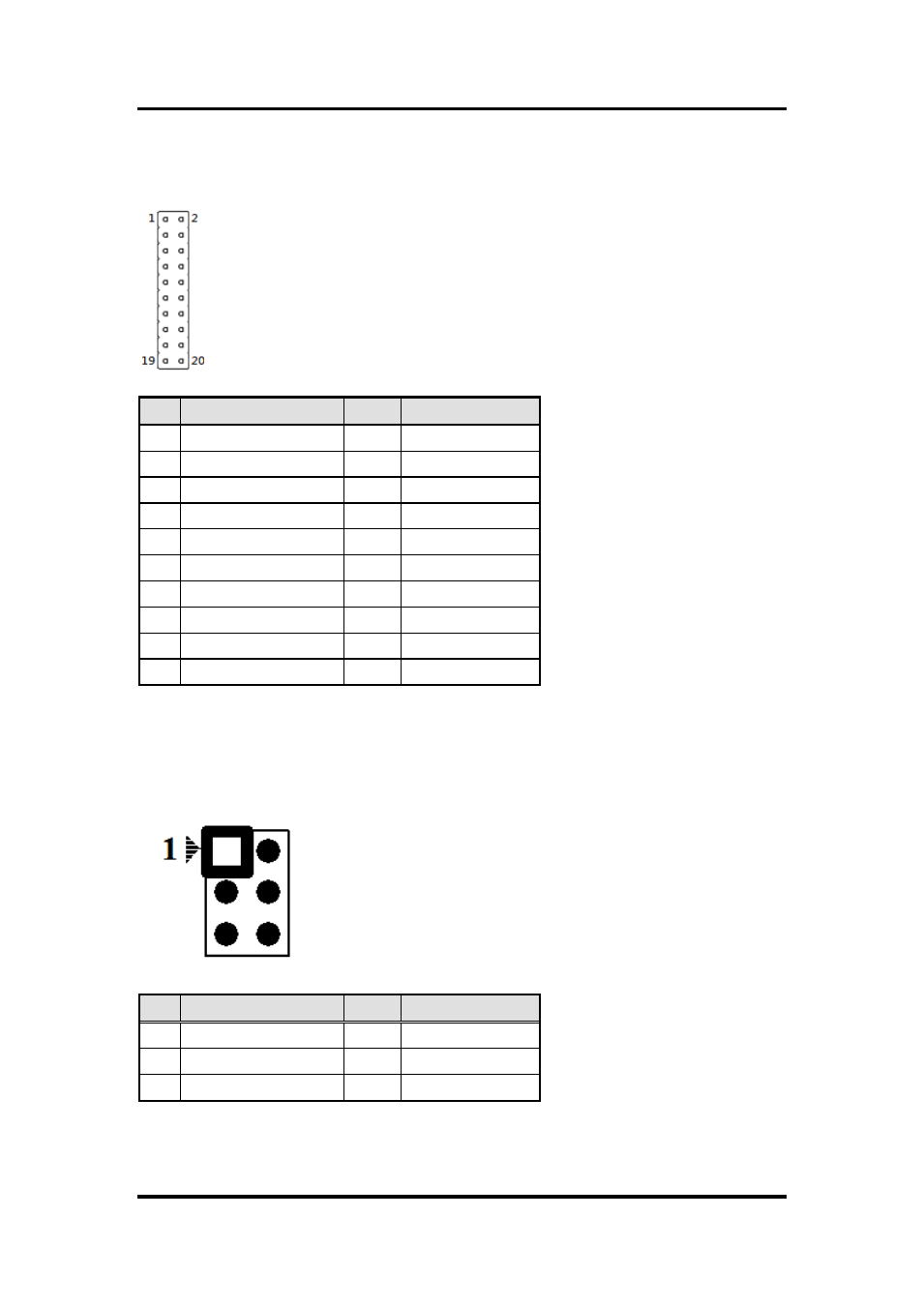

Digital I/O pin header: CN10
CN10 Pin Assignment
Pin Description
Pin
Description
1
GND
6
GND
2
GPIO0
7
GPIO1
3
GPIO2
8
GPIO3
4
GPIO4
9
GPIO5
5
GPIO6
10
GPIO7
11 GPIO8
12
GPIO9
13 GPIO10
14
GPIO11
15 GPIO12
16
GPIO13
17 GPIO14
18
GPIO15
19 GND
20
GND
Speaker Out & MIC IN connector: CN11
CN11 Pin Assignment
Pin Description
Pin
Description
1
SPKOUT_L-
2
SPKOUT_L +
3
SPKOUT_R-
4
SPKOUT_R +
5
MIC IN
6
GND
