ERX-Q77 User’s Manual
88 ERX-Q77 User’s Manual

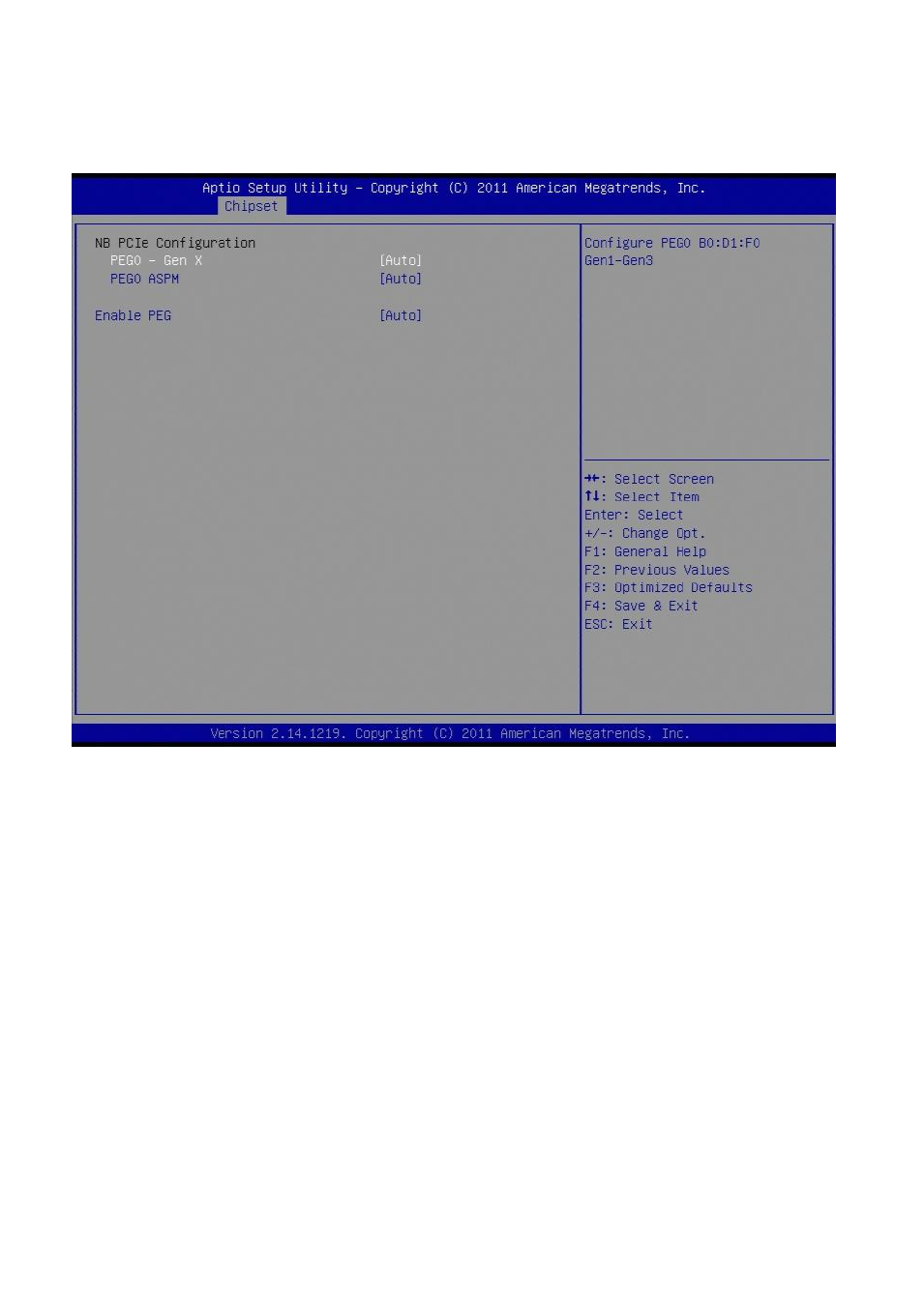

3 .4.19.2 NB PCIe Configuration
 PEG0 – Gen X [Auto]
Set PEG0 B0:D1:F0 Gen1 – Gen3
Configuration options: [Auto] [Gen1] [Gen2] [Gen3]
 PEG0 ASPM [Auto]
Control ASPM support for the PEG: Device 1 Function 0. This has no effect if PEG is not the
currently active device.
Configuration options: [Disabled] [Auto] [ASPM L0s] [ASPM L1] [ASPM L0sL1]
 Enable PEG [Auto]
Enabled or disabled PEG
Configuration options: [Disabled] [Enabled] [Auto]
