ERX-Q77 User’s Manual
ERX-Q77 User’s Manual 41

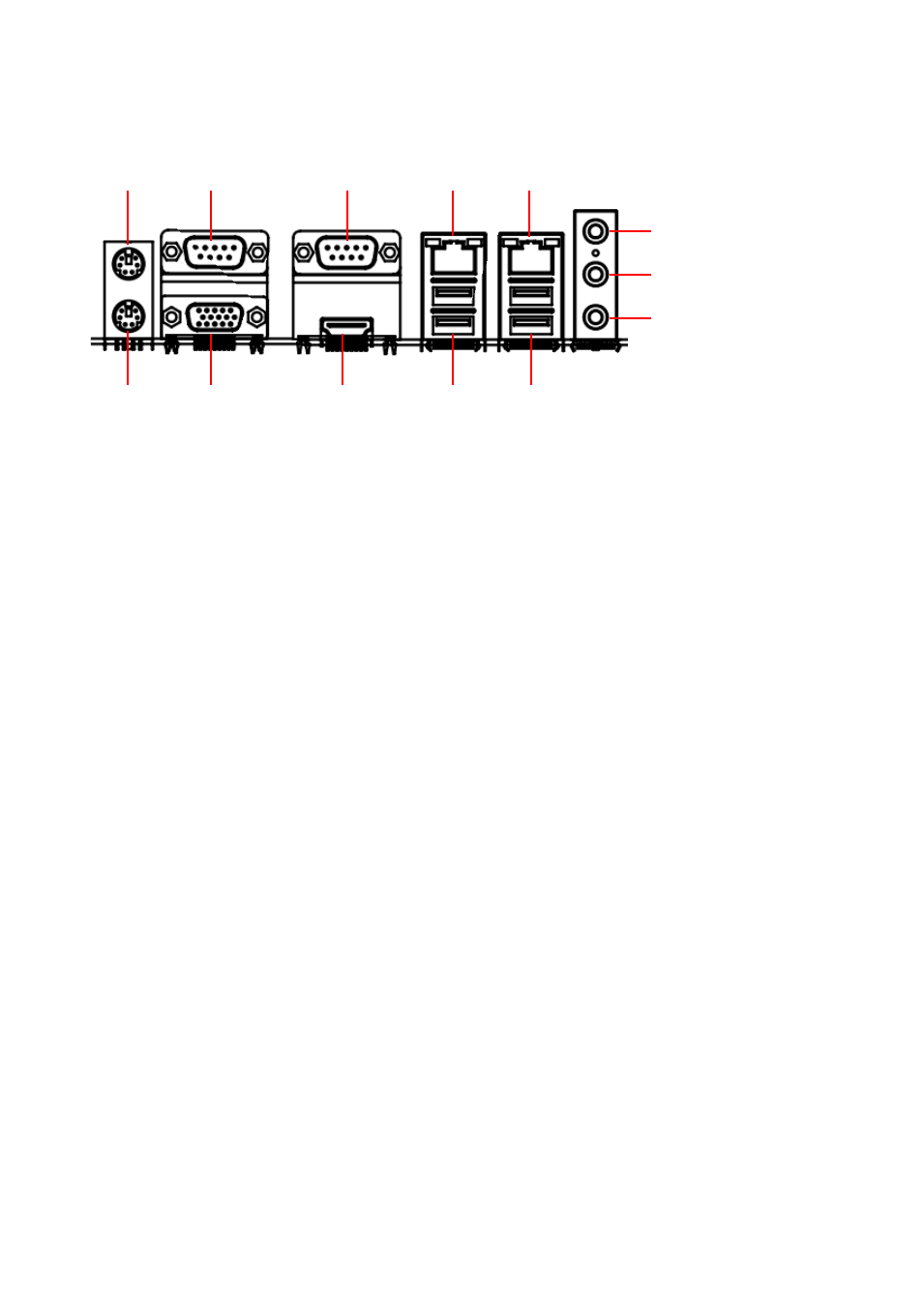

2.8.8 Rear panel connectors
1
2
3
5
4
6
7 8
9 10
11
12
13
1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2. PS/2 keyboard port (purple). This port is for a PS/2 keyboard.
3 & 4. Serial connector. This 9-pin COM1 & COM2 port is for serial devices.
5. VGA port. This 15-pin VGA port connects to a VGA monitor.
6. HDMI port. This 19-pin HDMI 1.3 port connects to a HDMI monitor.
7 & 8. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub. Refer to the table below for the LAN port LED indications.
LAN port LED indications
