ERX-Q77 User’s Manual
ERX-Q77 User’s Manual 75

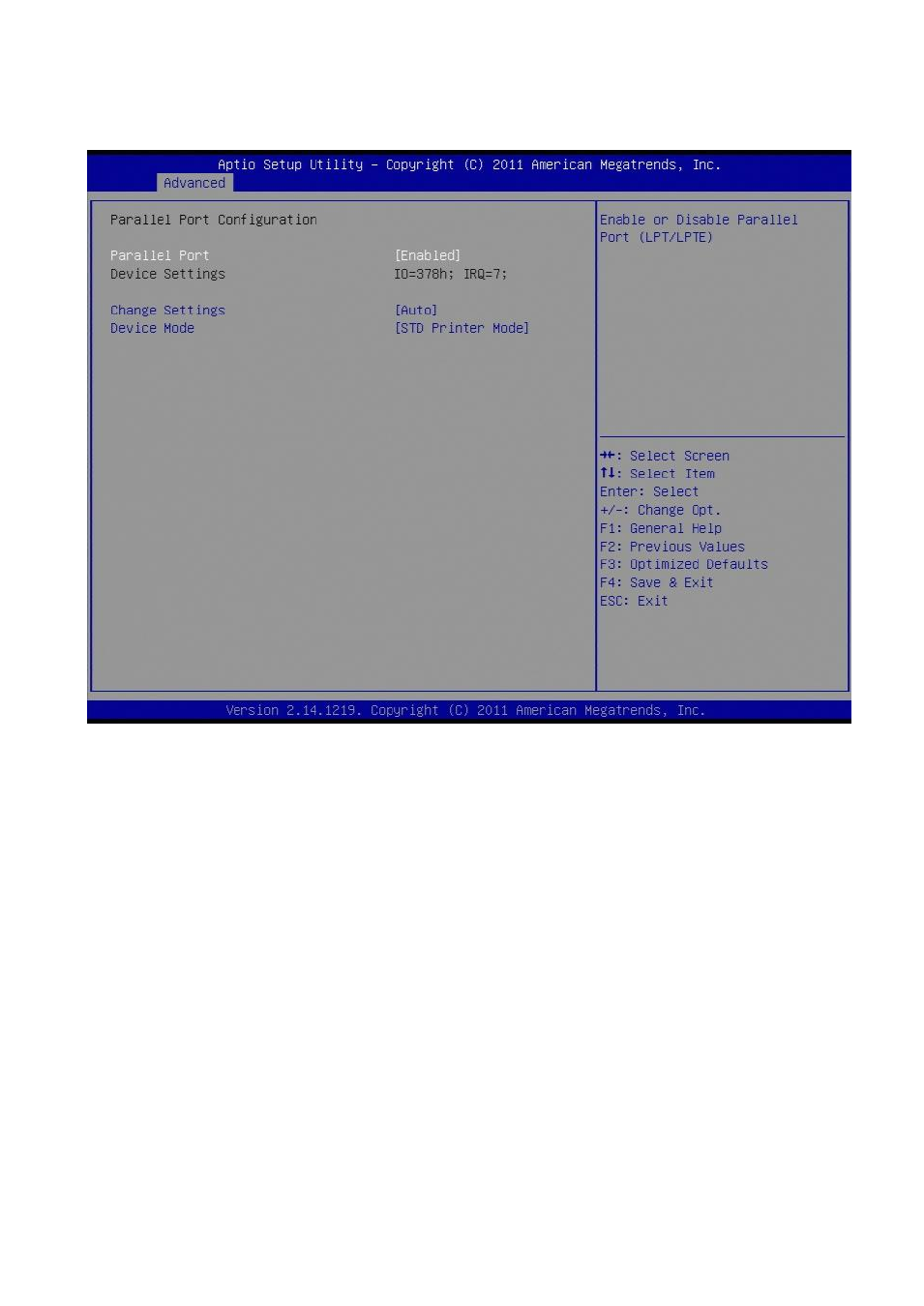

3.4.13.3 Parallel Port configuration
 Parallel Port [Enabled]
Enable or disable parallel port (LPT/LPTE)
Configuration options: [Enabled] [Disabled]
Device Settings [IO=378h; IRQ=7]
 Change Settings [Auto]
Select an optimal setting for Super IO device
Configuration options: [Auto] [IO=378h; IRQ=7] [IO=378h; IRQ=5, 6, 7, 9, 10, 11, 12]
[IO=278h; IRQ=5, 6, 7, 9, 10, 11, 12] [IO=3BCh; IRQ=5, 6, 7, 9, 10, 11, 12]
 Device Mode [STD Printer Mode]
Change the printer port mode
Configuration options: [STD Printer Mode] [SPP Mode] [EPP-1.9 and SPP Mode] [EPP-1.7
and SPP Mode] [ECP Mode] [ECP and EPP 1.9 Mode] [ECP and EPP 1.7 Mode]
