ERX-Q77 User’s Manual
24 ERX-Q77 User’s Manual

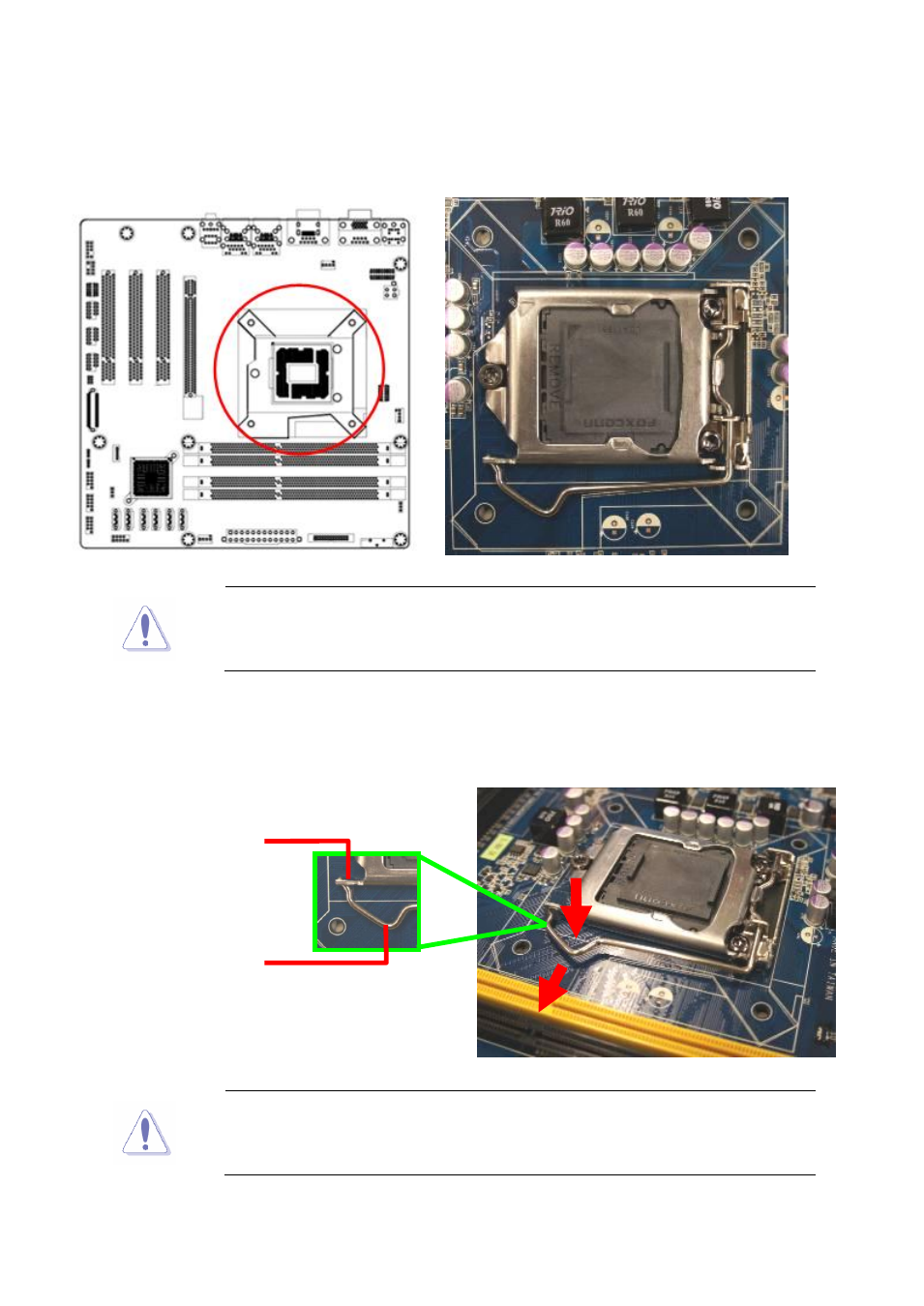

2.5.1 Installing the CPU
1 Locate the CPU socket on the motherboard.
Before installing the CPU, make sure that the socket box is facing
towards you and the load lever is on your left.
2 Press the load lever with your thumb (A), then move it to the left (B) until it is released
from the retention tab.
To prevent damage to the socket pins, do not remove the PnP cap
unless you are installing a CPU.
A
B
Retention tab
Load lever
