ERX-Q77 User’s Manual
ERX-Q77 User’s Manual 71

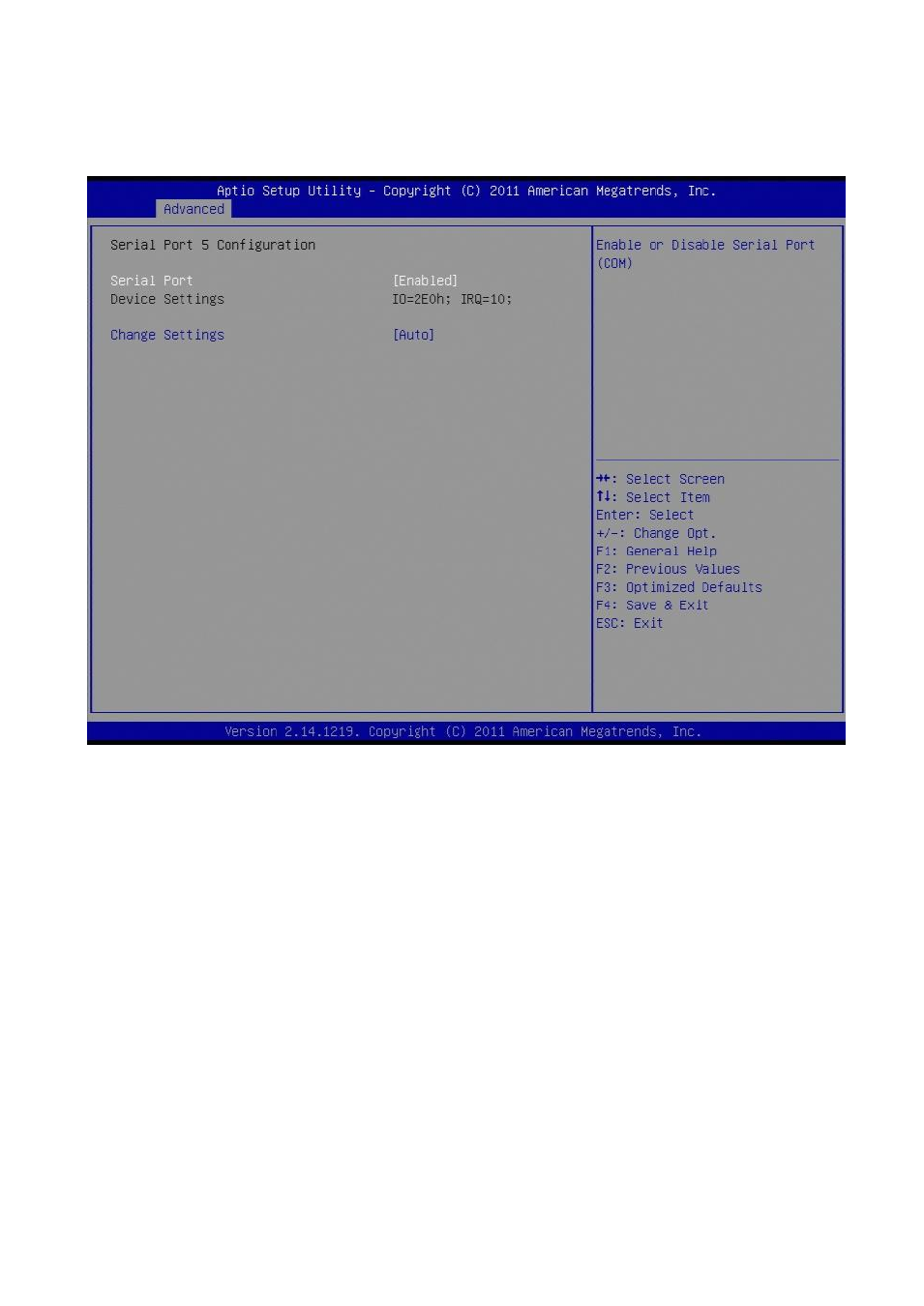

3.4.12.3 Serial Port 5 configuration
 Serial Port [Enabled]
Enable or disable serial port
Configuration options: [Enabled] [Disabled]
Device Settings [IO=2E0h; IRQ=10]
 Change Settings [Auto]
Select an optimal setting for Super IO device
Configuration options: [Auto] [IO=2E0h; IRQ=10] [IO=3F8h; IRQ=5, 10] [IO=2F8h; IRQ=5, 10]
[IO=3E8h; IRQ=5, 10] [IO=2E8h; IRQ=5, 10] [IO=2E0h; IRQ=5, 10] [IO=2F0h; IRQ=5, 10]
