2.5.3 Uninstalling the CPU Heatsink and Fan

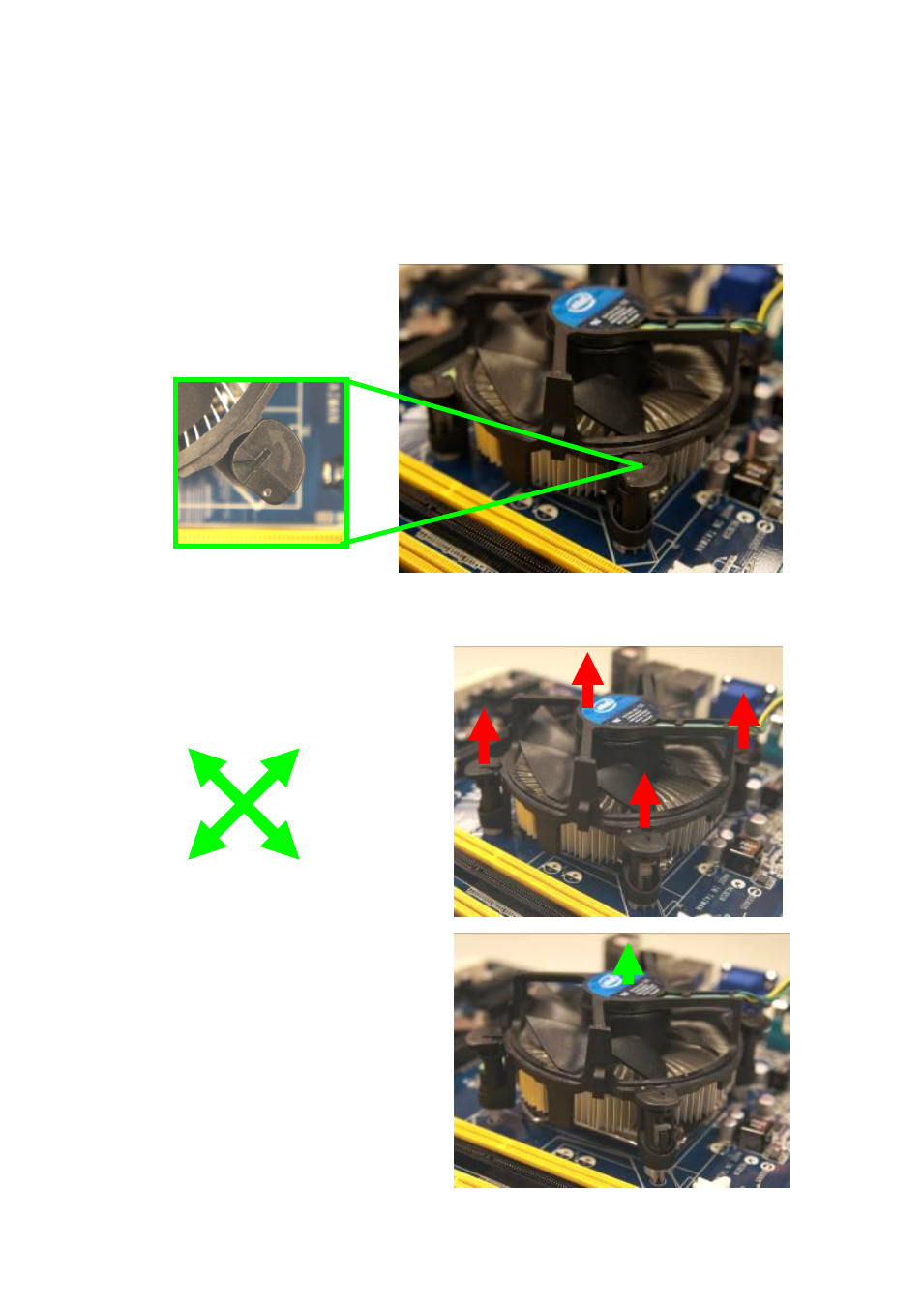

To uninstall the CPU heatsink and fan:
1. Disconnect the CPU fan cable from the connector on the motherboard.
2. Rotate each fastener counterclockwise
3. Pull up two fasteners at a time in a diagonal sequence to disengage the heatsink and fan
assembly from the motherboard.
4. Carefully remove the heatsink and fan
assembly from the motherboard.
