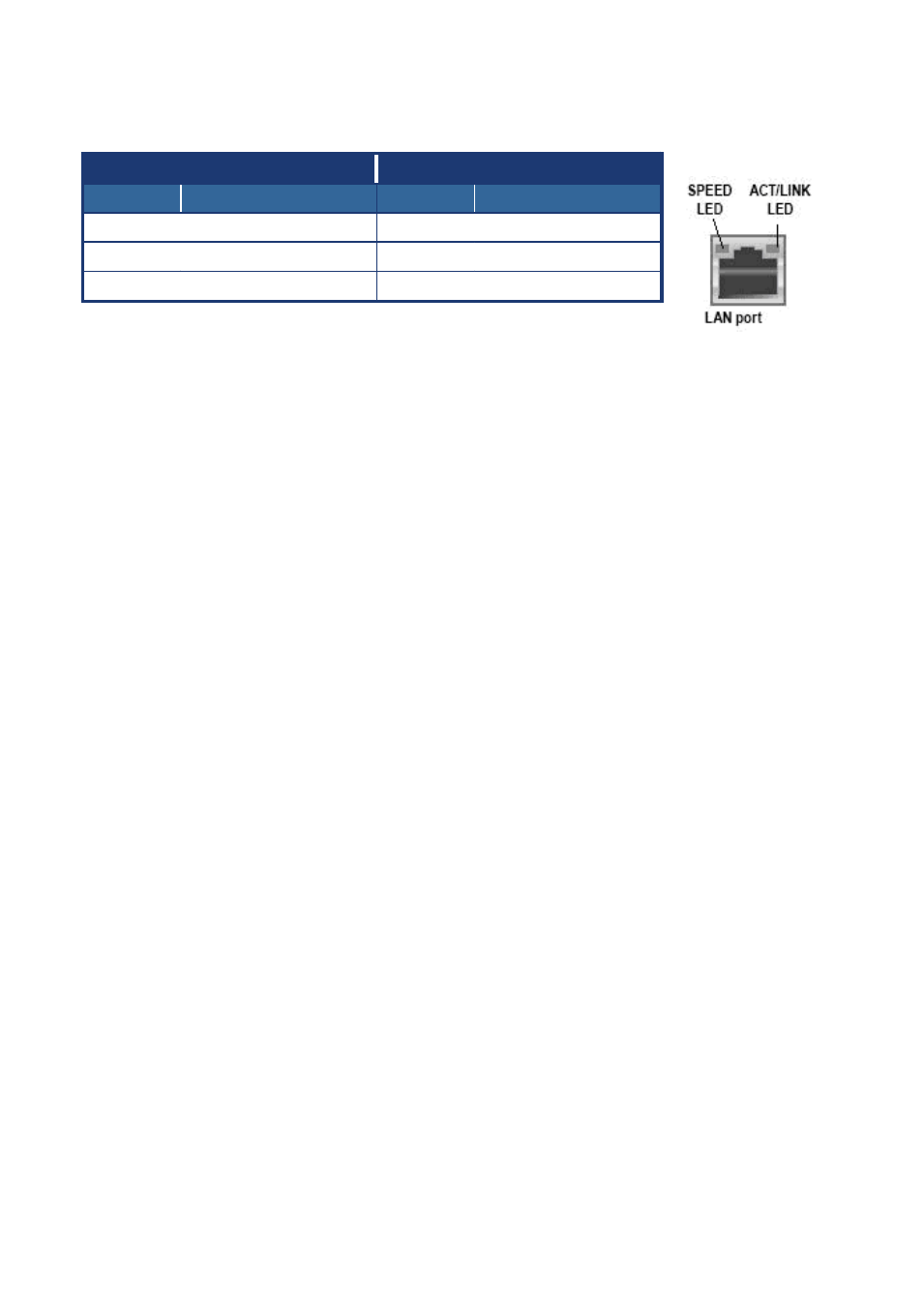

LAN port LED indications
SPEED LED ACT / LINK LED
Status Description Status Description
OFF 10Mbps connection OFF No link
Orange 100Mbps connection Green Link
Green 1Gbps connection Blinking Data activity
9 & 10. USB 3.0 ports 1 ~ 4. These four 4-pin Universal Serial Bus (USB) ports are available
for connecting USB 3.0 devices.
11. Line In port (light blue). This port connects a tape, CD, DVD player, or other audio
sources.
12. Line Out port (lime). This port connects a headphone or a speaker.
In 4-channel, 6-channel, and 8-channel configuration, the function of this port becomes
Front Speaker Out.
13. Microphone port (pink). This port connects a microphone.
