< 3.2 > Master IP Confi guration
1. Prepare a notebook computer to download the IP setup utilities from the link :
http://www.austin-hughes.com/support/utilities/infracool/IPSetupUtilities.msi
2. Double click the IPSetupUtilities.msi and follow the instruction to complete the installation.
3. Go to each Master IP fan unit with the notebook computer & a piece of CAT. 5 / 6 cable to set up the confi guration
by IP setup utilities as below. Please take the procedure for all Master IP fan unit ONE BY ONE.

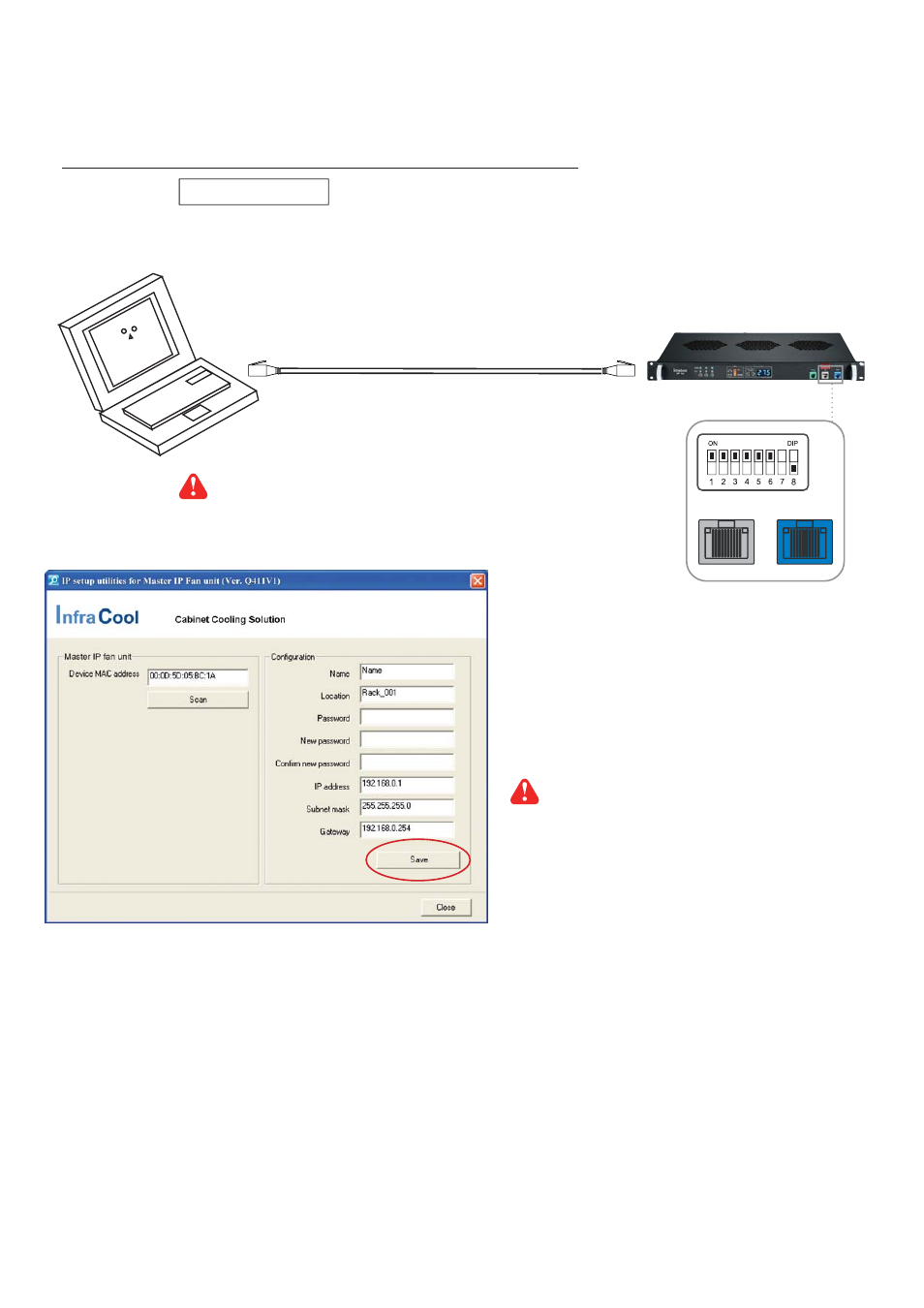

Please take the following steps to confi gure the Master IP fan unit :
Master IP fan unit
To IP port To notebook computer
LAN port
CAT. 5 / 6 cable
4. Click Scan to search the connected Master IP fan unit.
5. Enter the device name in the name fi eld ( min. 4 char. / max. 16 char. ). The default is Name.
6. Enter the location in the location fi eld ( min. 4 char. / max. 16 char. ). The default is Rack_001.
7. Enter the password in the password fi eld for authentication ( min. 8 char. / max. 16 char. ). The default is 00000000.
8. Enter the new password in the new password fi eld ( min. 8 char. / max. 16 char. ).
9. Re-enter the new password in the Confi rm new password fi eld.
10. Change the desired IP address / Subnet mask / Gateway, then click Save to confi rm the setting to Master IP fan unit.
11. The default IP address is as below:
IP address :
192.168.0.1
Subnet mask : 255.255.255.0
Gateway : 192.168.0.254
Reconnect the Master IP fan unit with the network device (
router or hub ), after fi nish the confi guration.
Ensure the FAN unit in
power ON status
Write down the new IP address & password
for < Setup > purpose, refer to P.33
IP OUT
