www.austin-hughes.com UM-ICM-02-Q215V1 P.19

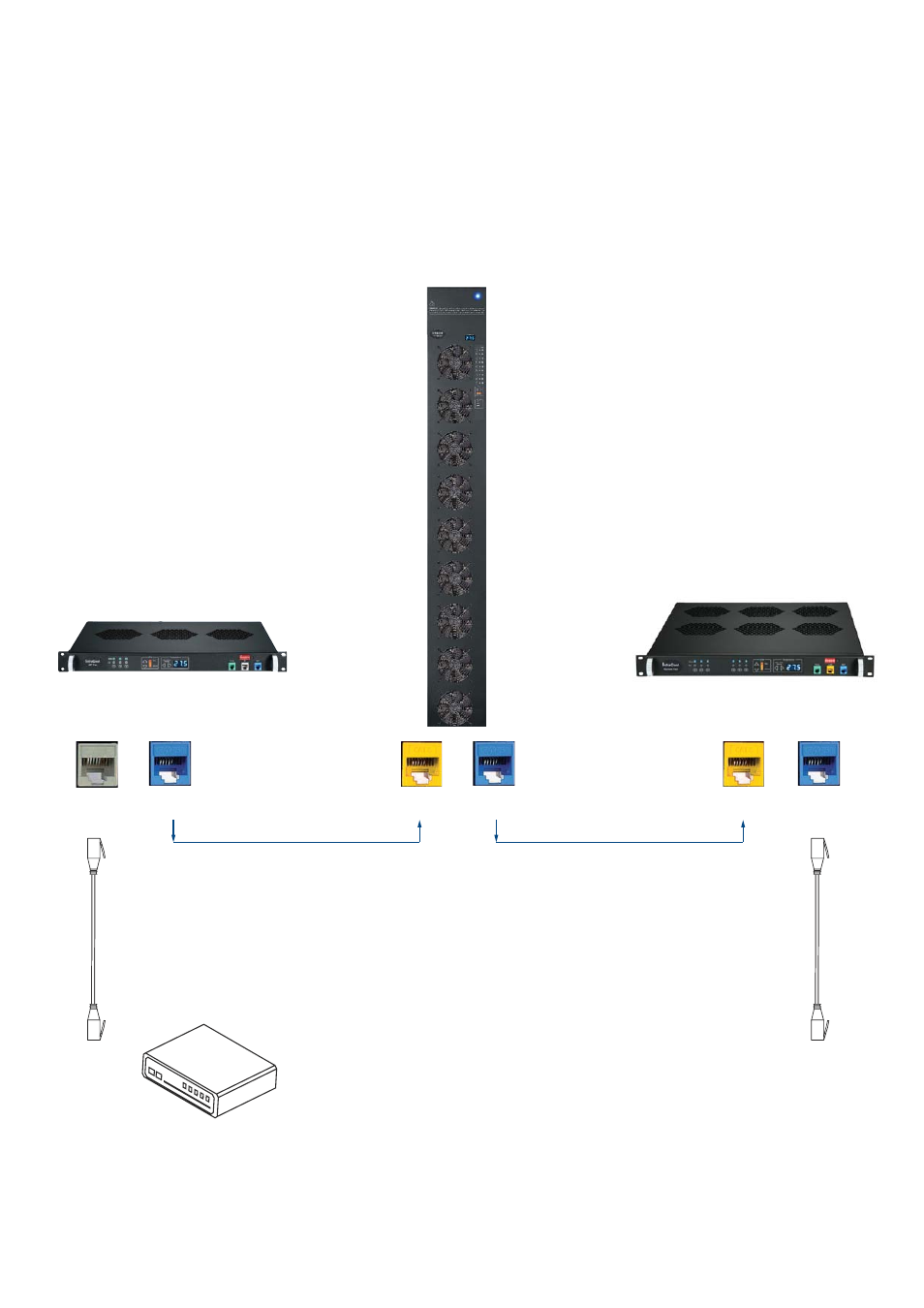

< 2.5 > Daisy Chain Connection
Remarks :
■
Each Master IP group supports 16 daisy chain levels.
■
The 1st level fan unit must be one of the Master IP fan unit models.
■
1 x Master IP fan unit allows access to 16 levels.
■
For IP fan unit access, simply connect 1 x Master IP fan unit.
■
The 2nd - 16th level fan unit must be one of the Remote fan unit models.
IP OUT
Cat5 / 6 cable
max. 20 meters
Cat5 / 6 cable
max. 20 meters
To LINK port of next
level Remote Fan Unit
(max level: 16)
LINK OUT LINK OUT
To Network Device
for IP Access via WAN
1st level
Master IP fan unit model
3rd level
Remote fan unit model
2nd level
Remote
fan unit model
