www.austin-hughes.com UM-ICM-02-Q215V1 P.11
5 6 7
TEMP I P OUT
4

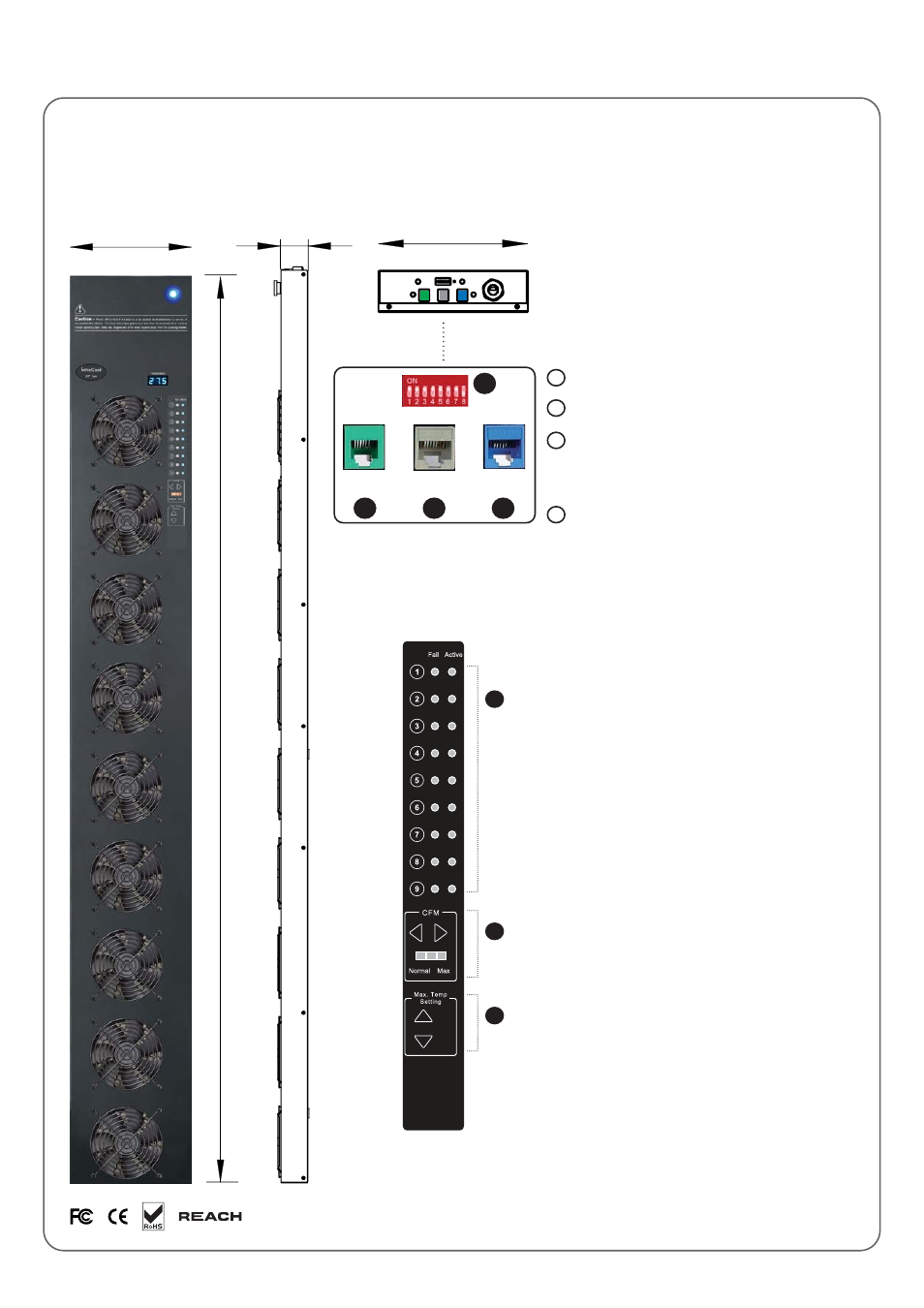

Model : MRF-33.9 33U Door Mount Fan Panel with 9 fans
5
6
7
- DIP switch for daisy chain level setting
- Temp. port bundled w/ a temp. sensor
- IP port for remote access
- Only master fan unit provides an IP port
- 1 x IP port allows access to 16 levels
- Daisy chain port for connecting to the link
port of the 2nd level fan unit
4
1
2
3
- Unit CFM Status LED
- Unit CFM ( fan speed ) Setting
- Individual fan status
- Individual fan On / Off buttons
- Buttons for Alarm Temp. Setting
< 2.3 > Master IP Fan Unit Model
Side View
42.9 mm
1466 mm
195 mm
Front View
195 mm
Top View
