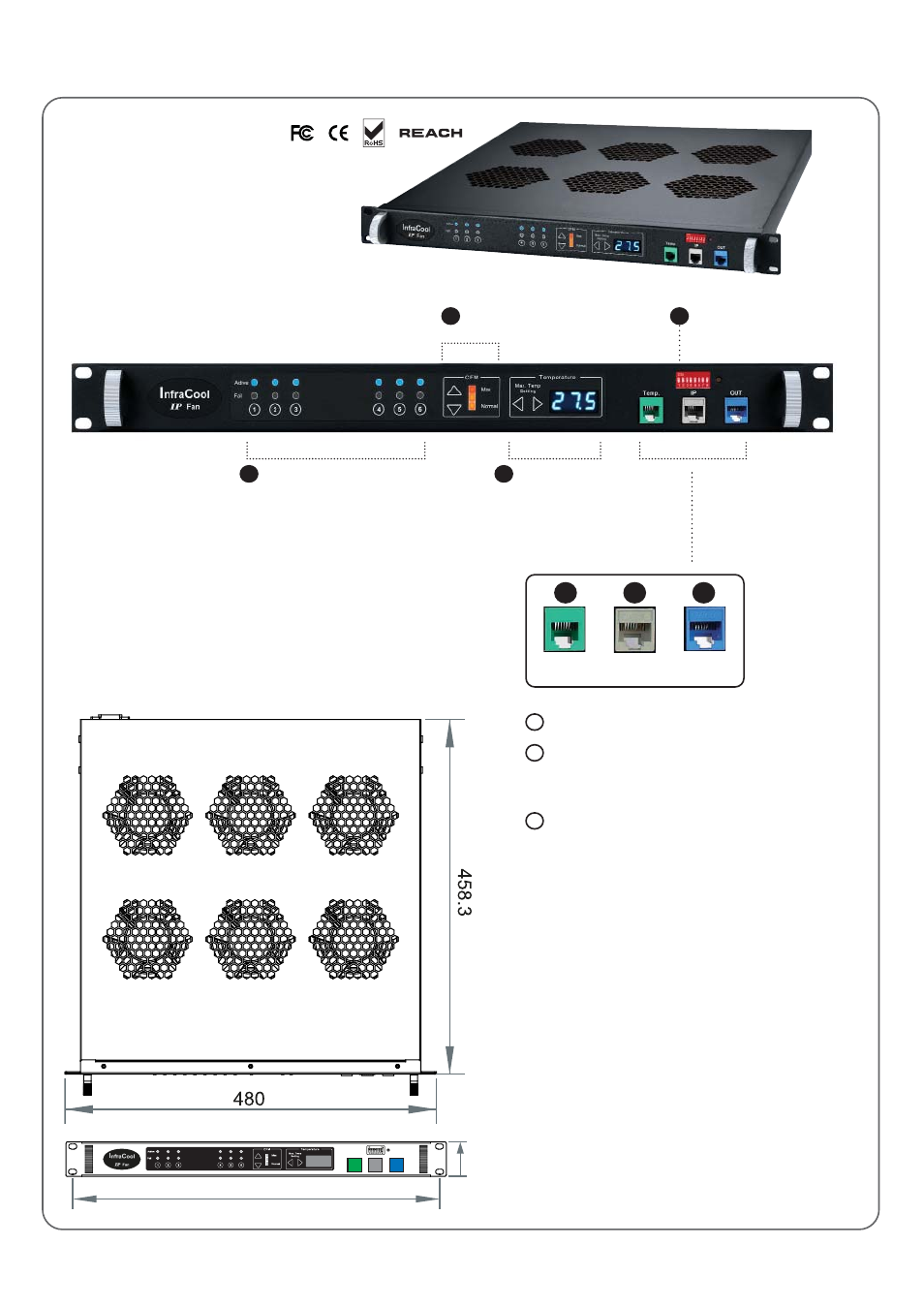

Model : MRF-1.6
1U Fan Tray with 6 fans
< 2.3 > Master IP Fan Unit Model
- Unit CFM Status LED
- Unit CFM Setting
1
2
3
4
- Individual fan status
- Individual fan On / Off buttons
- Buttons for Alarm
Temp. Setting
- Temp. LED display
- DIP switch for
daisy chain level setting
5
6
7
- Temp. port bundled w/ a temp. sensor
- IP port for remote access
- Only master fan unit provides an IP port
- 1 x IP port allows access to 16 levels
- Daisy chain port for connecting to the link
port of the 2nd level fan unit
5 6 7
TEMP I P OUT
