< 2.5 > Daisy Chain Connection
Using the dip switch no. 1, 2, 3, 4, 5, 6 & 8 to setup each FAN unit level as below :
Cascaded FAN units
Dip switch no.
1
2
3
4
5
6
8
1st level
Master IP
Fan Unit Model
On
On
On
On
On
On
Off
2nd level Remote Fan Unit Model
Off
On
On
On
On
On
Off
3rd level Remote Fan Unit Model
On
Off
On
On
On
On
Off
4th level Remote Fan Unit Model
Off
Off
On
On
On
On
Off
5th level Remote Fan Unit Model
On
On
Off
On
On
On
Off
6th level Remote Fan Unit Model
Off
On
Off
On
On
On
Off
7th level Remote Fan Unit Model
On
Off
Off
On
On
On
Off
8th level Remote Fan Unit Model
Off
Off
Off
On
On
On
Off
9th level Remote Fan Unit Model
On
On
On
Off
On
On
Off
10th level Remote Fan Unit Model
Off
On
On
Off
On
On
Off
11th level Remote Fan Unit Model
On
Off
On
Off
On
On
Off
12th level Remote Fan Unit Model
Off
Off
On
Off
On
On
Off
13th level Remote Fan Unit Model
On
On
Off
Off
On
On
Off
14th level Remote Fan Unit Model
Off
On
Off
Off
On
On
Off
15th level Remote Fan Unit Model
On
Off
Off
Off
On
On
Off
16th level Remote Fan Unit Model
Off
Off
Off
Off
On
On
Off

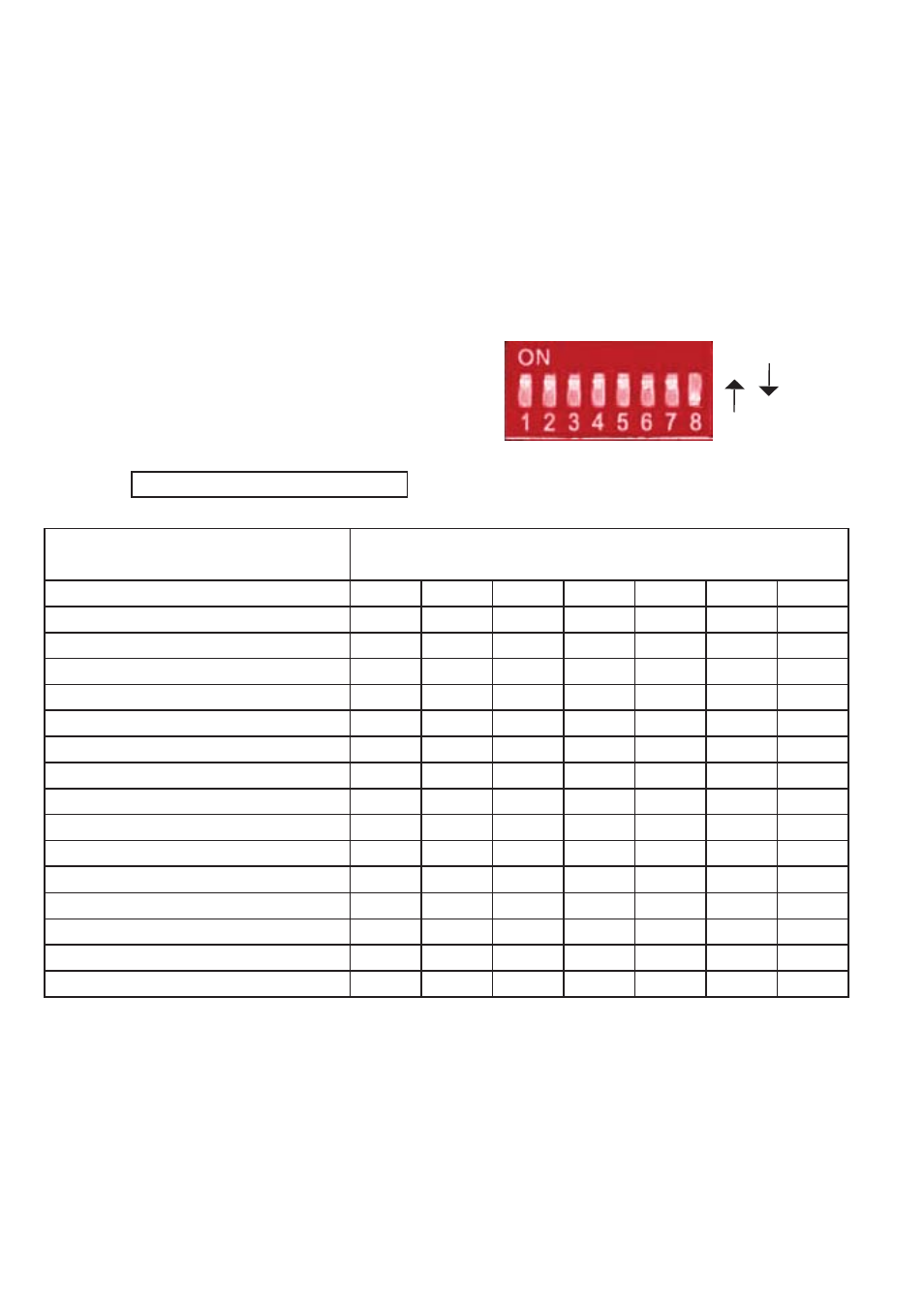

Daisy chain level setting
ON
OFF
** No. 7 dip switch only for audio alarm setting
Steps :
■
Only
Master IP
fan unit built-in IP remote access module.
■
Master IP
fan unit MUST be set on the 1st daisy chain level according to the table below.
■
For the 2nd - 16th levels ( remote fan unit models ), please make the level setting according to the table below.
■
For the cabling connection, please refer to the next page.
