16 User's Guide
3. Rotate the Green Printhead latch counter-clockwise to open the printhead module.
4. Rotate the Side Access Door down to allow the ribbon to be loaded under the printhead
module. This will allow you to slide the ribbon under the printhead without having to
thread it under the module.

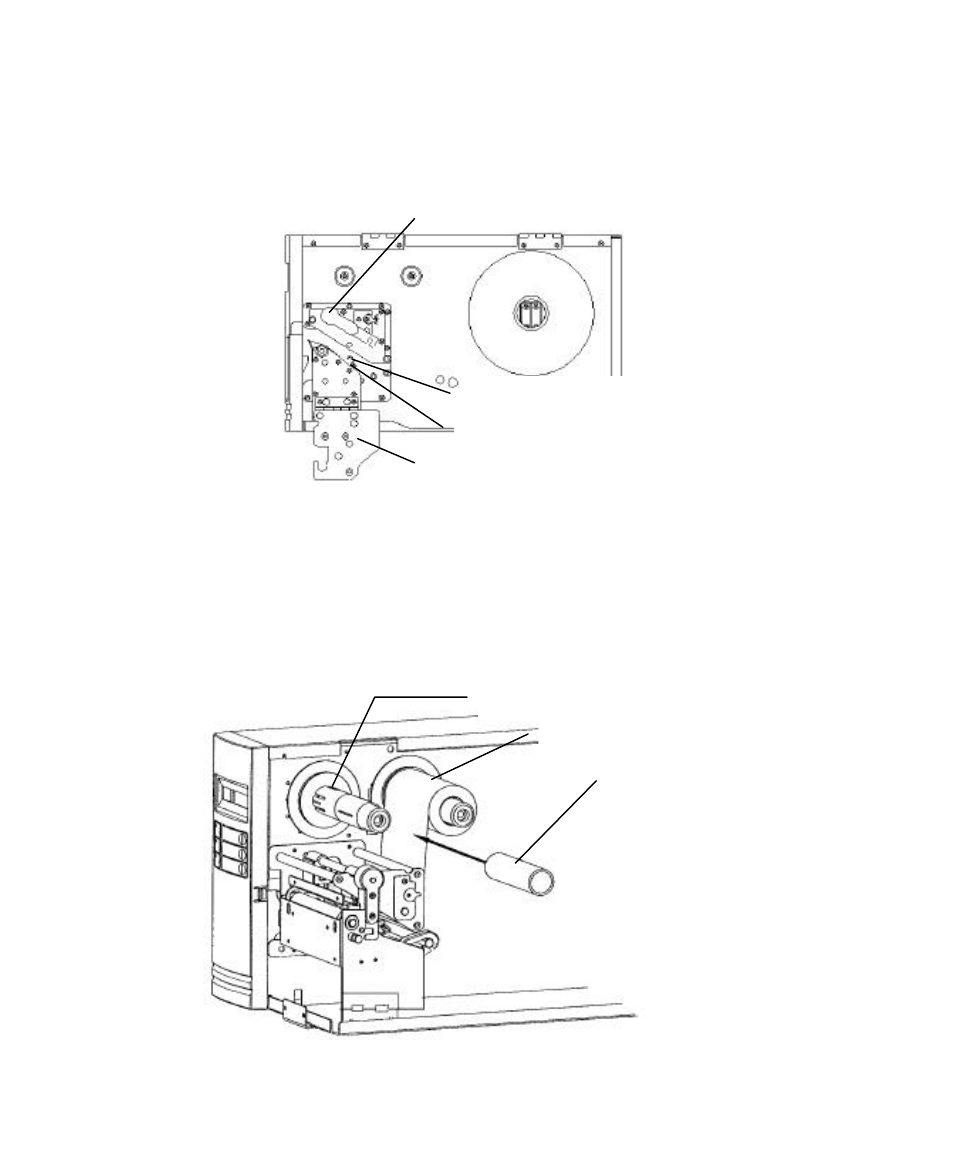

Figure 10 - Printhead Latch and Side Access Cover
5. Unwrap the ribbon and place the Ribbon Supply Roll on the Ribbon Supply Spindle
located towards back of printer.
Figure 11 - Ribbon Take-Up Core
Supply Roll and Supply Spindle
Empty Take-up core
Take-up Spindle
Printhead Latch
Upper Media Sensor Arm
Lower Media Sensor Arm
Side Access Door
