Establishing network connections TX 4000 PCI SS7 Network Interface Board Installation Manual
Dual T1/E1 120 ohm adapter cable

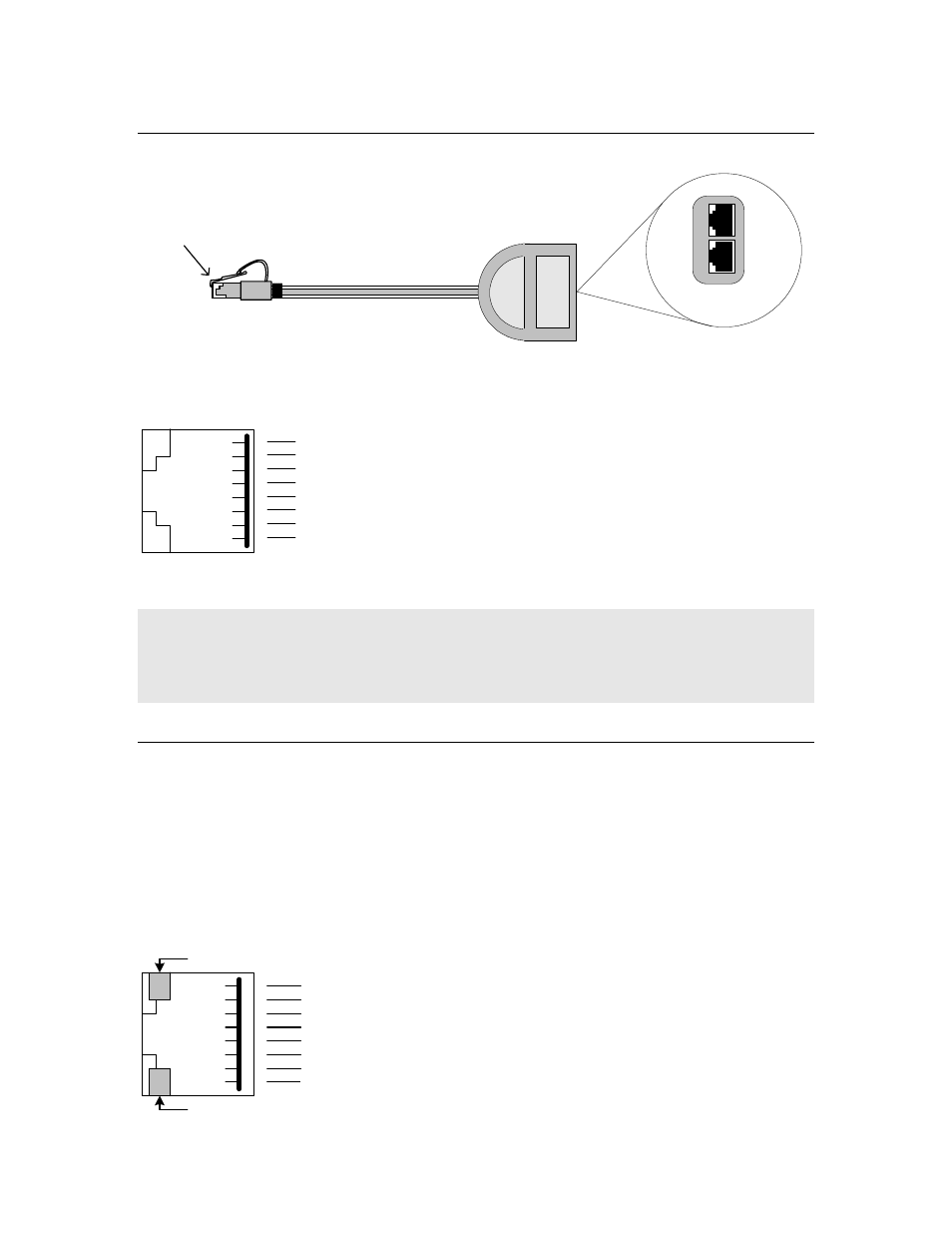

The following illustration shows a dual T1/E1 120 ohm trunk adapter cable:
D i a l o g i c ® M D1 R J - 4 5
Length: 4 “
R J - 4 8 C
B
A
The following illustration shows the pinouts of the RJ-48C connectors on the trunk
adapter cable:
P i n 8 : O p t i o n a l s h i e l d , n o t u s e d
P i n 7 : O p t i o n a l s h i e l d , n o t u s e d
P i n 6 : N o c o n n e c t i o n
P i n 5 : T 1 - T r a n s m i t t o n e t w o r k
P i n 4 : R 1 - T r a n s m i t t o n e t w o r k
P i n 3 : N o c o n n e c t i o n
P i n 2 : T - R e c e i v e f r o m n e t w o r k
P i n 1 : R - R e c e i v e f r o m n e t w o r k P i n 1
P i n 8
For more information about the trunk connections, refer to the Dialogic®
NaturalAccess™ Signaling Software Configuration Manual.
Note: The TX 4000 board is configured as a T1/E1 120 ohm board. To connect the
TX 4000 board to a 75-ohm E1 trunk, use a balun. A balun is a transformer that
converts the impedance from 120 ohm to 75 ohm. No other configuration changes
are required. For more information, contact a Dialogic Services and Support
representative.
Ethernet interfaces
The TX 4000 board has two 10/100Base-T Ethernet interfaces. These interfaces
provide Ethernet connections that support auto-negotiation for 100Base-T full
duplex/half duplex and 10Base-T full duplex/half duplex transmission. Each Ethernet
interface can be manually configured if you are not using auto-negotiation.
The Ethernet interfaces provide a high-speed interface for connecting a TX 4000
board to either its redundant mate board or to a network of other SIGTRAN devices.
Refer to Connecting TX boards for redundancy on page 34 for more information.
The following illustration shows the pinouts of the 10/100Base-T Ethernet RJ-45
interfaces:
L I N K / A C T L E D
1 0 0 L E D
P i n 1
P i n 8
P i n 1 : T - T r a n s m i t t o n e t w o r k
P i n 2 : R - T r a n s m i t t o n e t w o r k
P i n 3 : T 1 - R e c e i v e f r o m n e t w o r k
P i n 4 : G r o u n d
P i n 5 : G r o u n d
P i n 6 : R 1 - R e c e i v e f r o m n e t w o r k
P i n 7 : G r o u n d
P i n 8 : G r o u n d
