32 System Management
3.2.2 Chassis Status Log
With the Chassis Status Log function, monitored data can be
recorded. Clicking Log Chassis Status opens the Log Options
dialog, as shown.

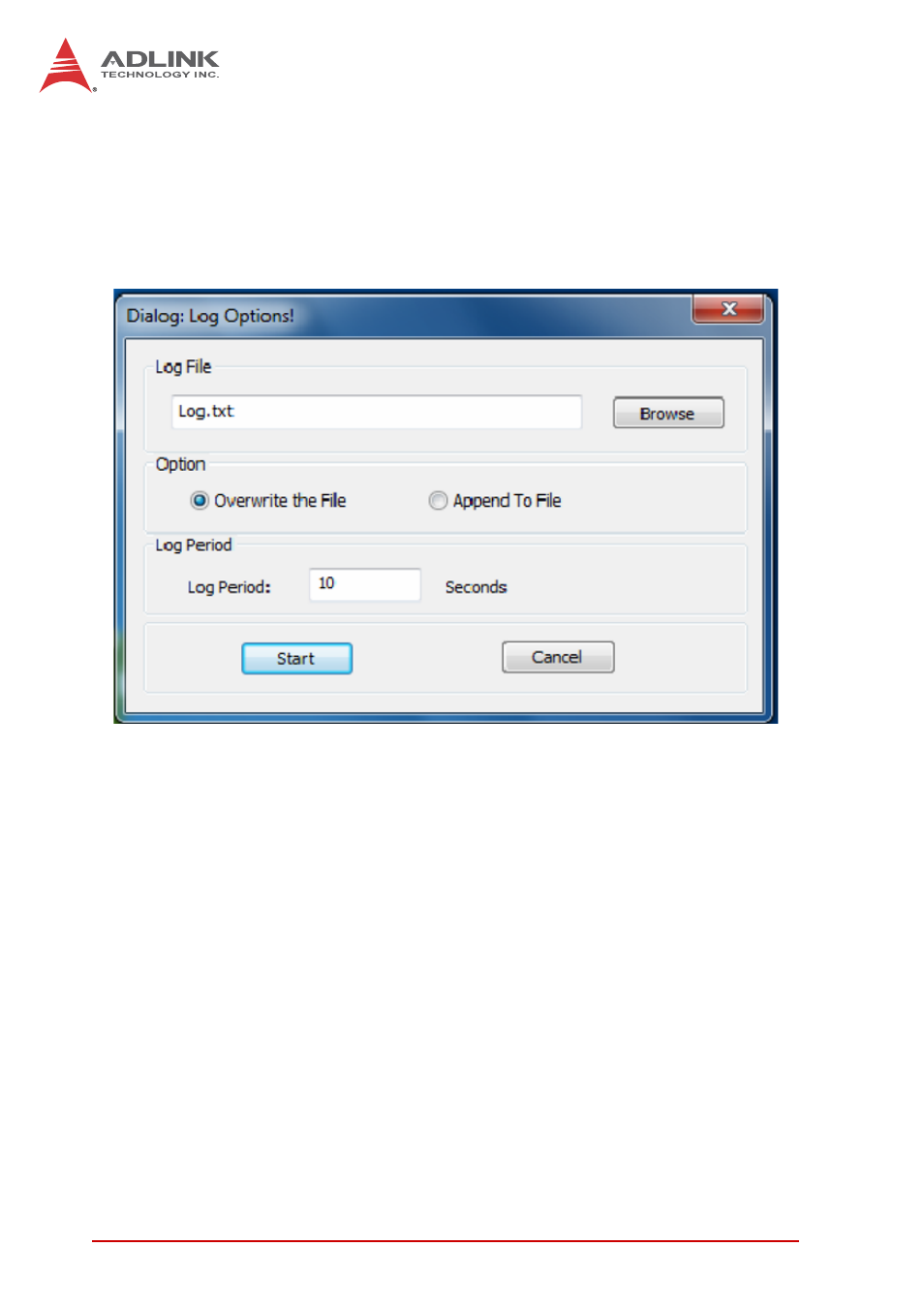

Figure 3-2: Log Options Dialog
The name of the log file can be entered, and overwrite or
append to operations selected. The log period can further be
entered, in seconds. Clicking Start begins the log.
Over Threshold Statistics, when selected, displays information
regarding threshold being exceeded.
Save/Load Threshold
All Threshold & Control settings can be saved or loaded here.
Clicking Save Threshold Settings saves all current settings.
Clicking Load Threshold Settings loads all settings from the
saved file. Clicking Load Default Threshold resets all threshold
settings to the default values.
Version Info
Displays the current firmware version.
