Getting Started 27
PXIs-2719A

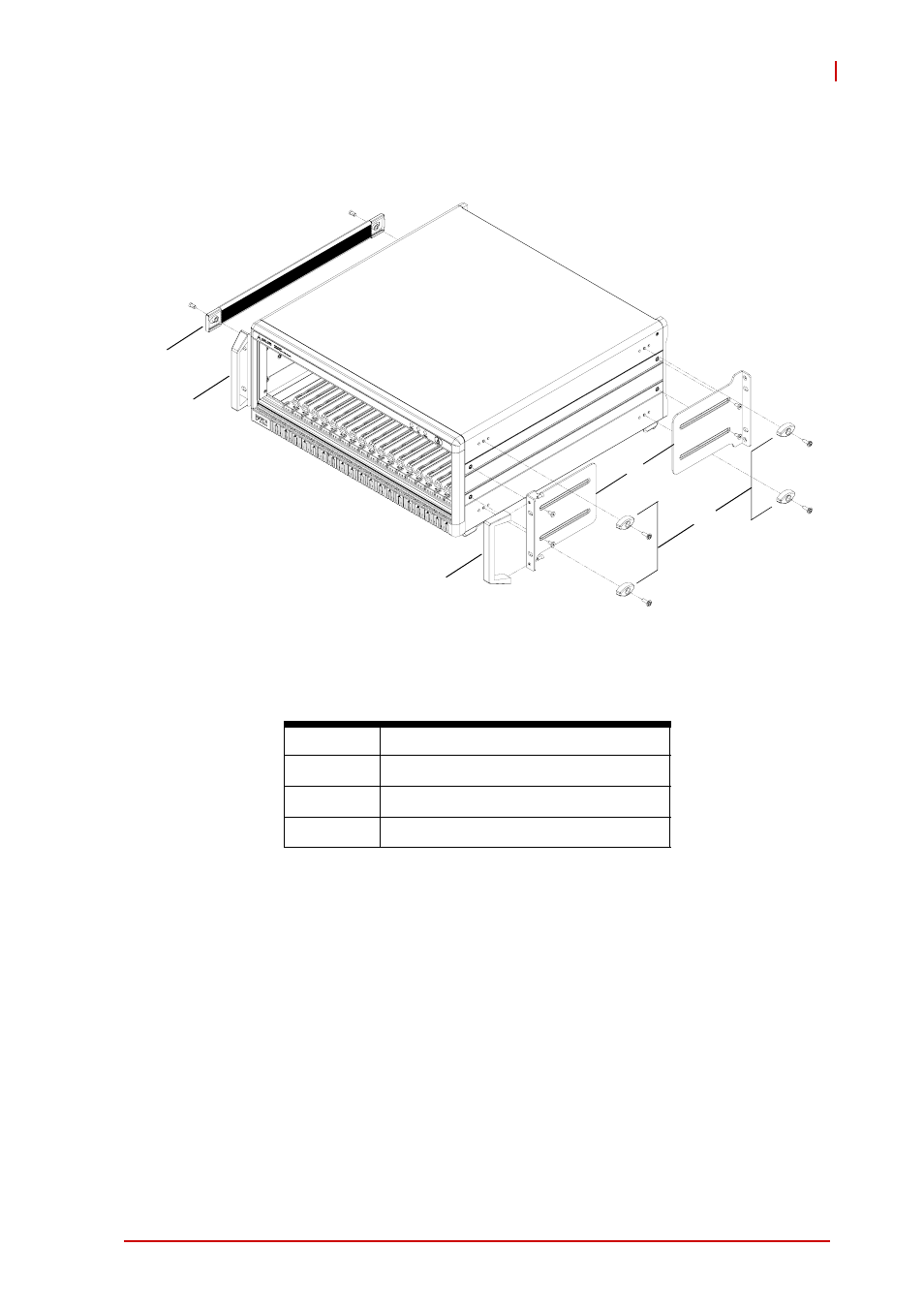

Figure 2-1: Rack Mount Assembly
Table 2-1: Rack Mount Assembly Legend
1. Unscrew and remove the carrying handle from the left
side
2. Remove the four rubber feet from the right side
3. Fasten both handles to the mounting brackets using the
provided M4 screws
4. Install the mounting brackets to both sides of the chas-
sis using the provided M4 screws. Position of the mount-
ing brackets can be adjusted to recess the chassis in the
rack by any distance
A Carrying Handle
B Rubber Feet
C Handles
D Mounting Brackets
B
C
D
A
C
