Getting Started

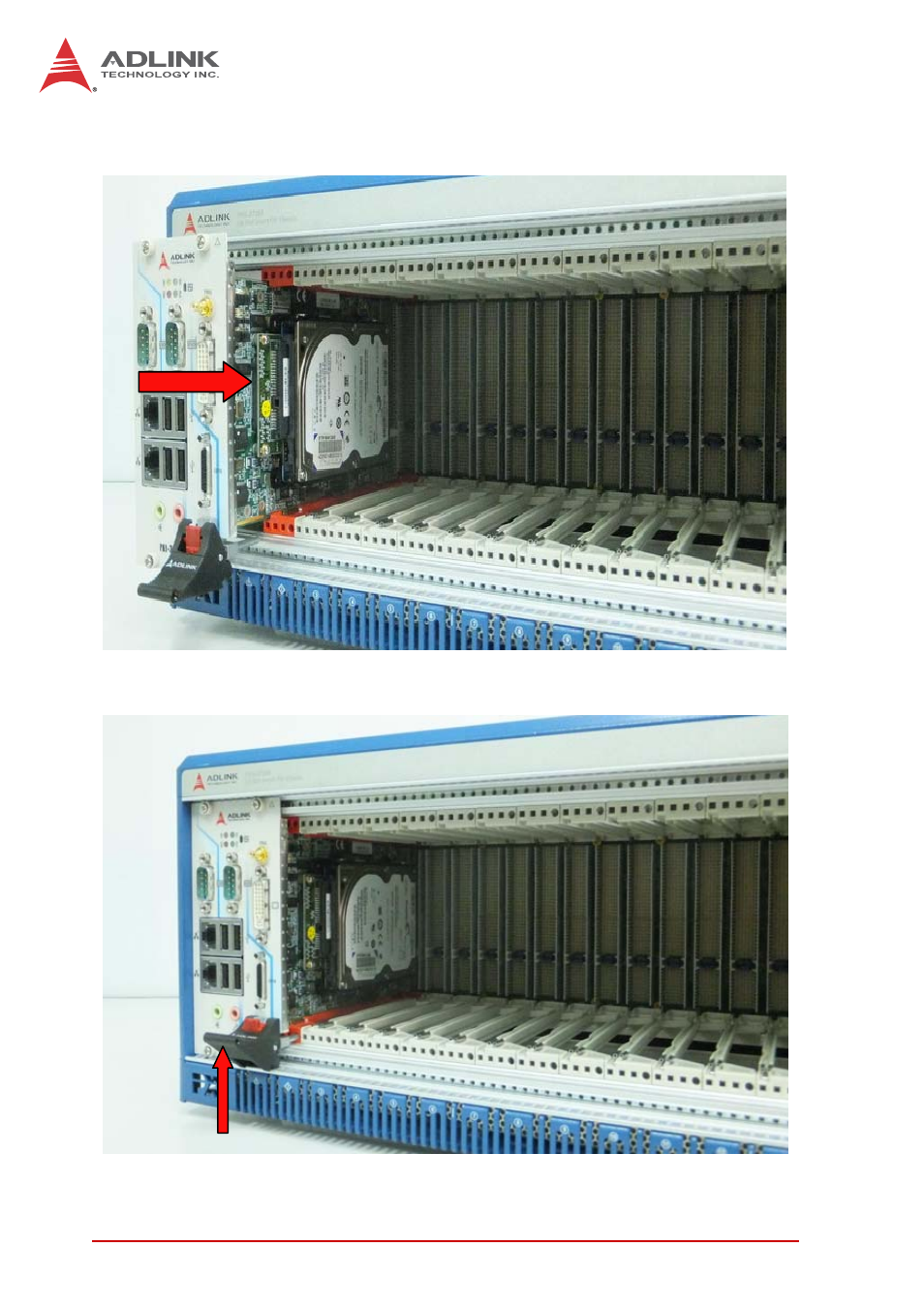

4. Align the module’s top and bottom edges with the card

guides, and carefully slide the module into the chassis.

5. Lift the latch until the module is securely seated in the

chassis backplane.

6. Fasten the screws on the module front panel, and con-

nect all devices to the system controller.
