6. Move the two swing-bolts into
the slots of the tine attachment.
Alternately tighten each bolt until
they are tight enough to make the
concave washers on the bolts flat.
The bolts must be very tight - if
you have a torque wrench, tighten
each one to between 70-80ft.-lbs.
See Photo 4-44.
IMPORTANT - The swing-bolts
must be kept very tight to pre­
vent damaging wear to the ‘dog’
clutch couplings, alignment pin
or the alignment hole. Check
bolt tightness every 2-‘4 operat­
ing hours.
7. Remove the engine support be­
fore moving the tiller in a forward
direction.
PTO POWER UNIT OPERATING INSTRUCTIONS

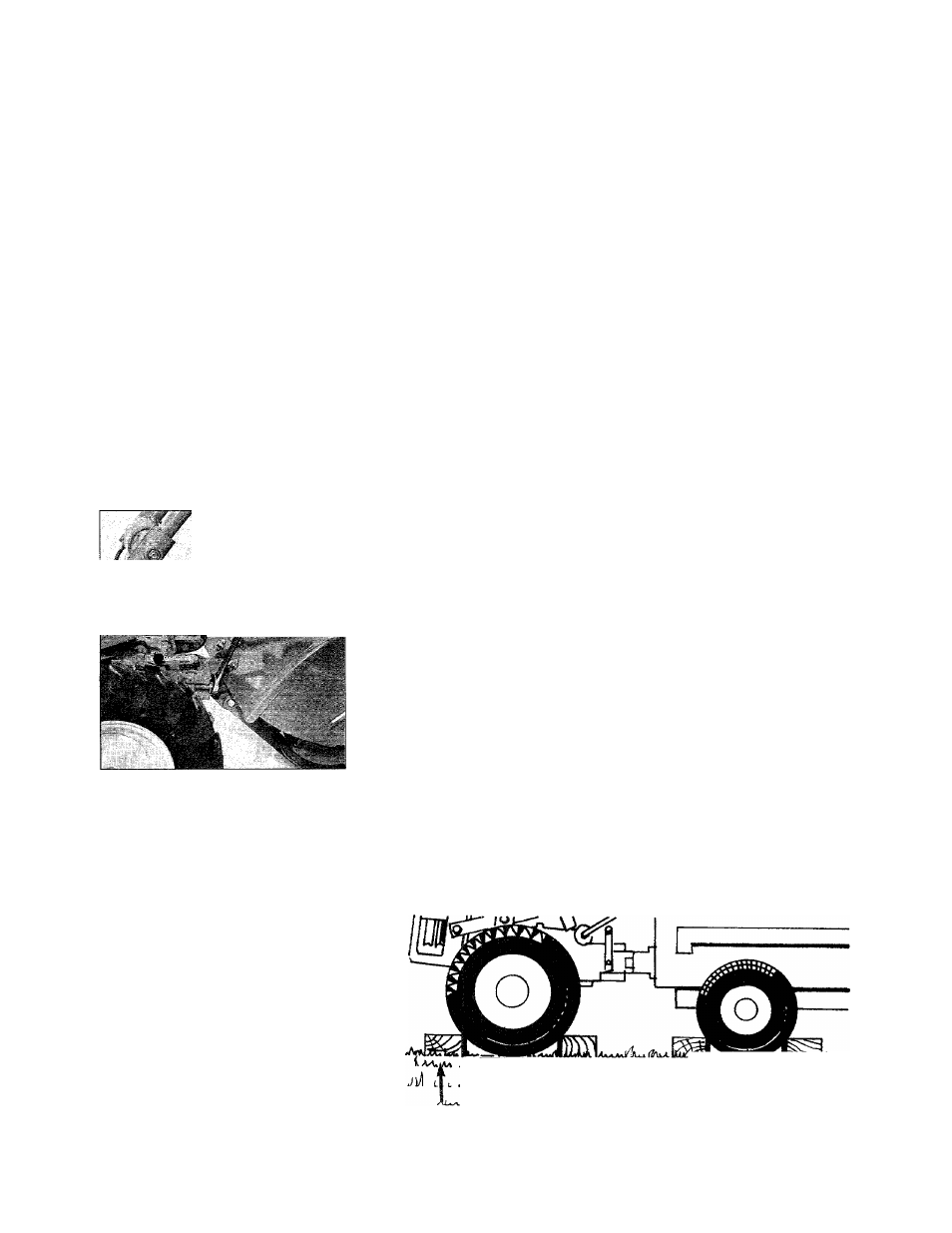

Photo 4-44: Tighten both swing-bolts
very securely with a long 3/4"
wrench. Tighten them to between
70-to-80 ft. lbs.
A
WARNING
To help avoid personal injury
or damage to equipment,
read the Owner/Operator
Manual supplied with each
attachment before installing
or operating the attachment.
See all detailed use and op­
eration information and all
safety instructions.
The following instructions de­
scribe how to operate the PTO
Power Unit only. Read the sepa­
rate Owner/Operator Manual sup­
plied with each attachment before
attempting to assemble, attach,
transport or operate the attach­
ment. If needed, please contact us
for a replacement manual.
Some attachments have a drive
shaft or a hydraulic pump that is
powered by the engine on the PTO
Power Unit. These attachments
are called “Stationary
Attachments,” since they must re­
main in one location when being
operated (they can be towed to a
work site by the PTO Power Unit
as described in “To Operate Non-
Powered Attachments”).
Other attachments are simply
pulled or towed behind the PTO
Power Unit. These attachments
are called “Non-Powered
Attachments.”
A
WARNING
To help avoid personal injury,
always disengage the Tines/
PTO Clutch Lever before tow­
ing any attachment.
Before Starting The Engine:
IMPORTANT - Before operat­
ing in temperatures below 40®F,
refer to “Cold Weather Oper­
ation” instructions in Section 4.
1. Move the Wheels/Tines/PTO
Drive Lever to NEUTRAL. To
find NEUTRAL (be sure engine is
off), push lever down to engage it
in EORWARD, then tap or lift the
lever up and release it (Photo 4-39).
2. Move the Tines/PTO Clutch
Lever to DISENGAGE.
3. For Stationary Attachments
Only;
a. Move Wheel Speed Lever to
FREE WHEEL, then block all
wheels to prevent the equipment
from rolling. Refer to Photo 4-39
and Figure 4-45.
b. On the Power Unit, unplug
the Forward Interlock Wire
Harness that leads from the bottom
of the handlebars to the receptacle
located on the top, right side of the
transmission cover (see Figure
4-46).
U a — L/f f—
Figure 4-45: Block wheels on power unit and stationary attachment.
42
