Mrols
Note: When Wheels/Tines/PTO Drive Lever moves
from one position to another, this moves the clutch
roller (see Photos 3-lA, 3-lB, 3-lC) to its proper po-
Ailjuitment Block
■J¡
*

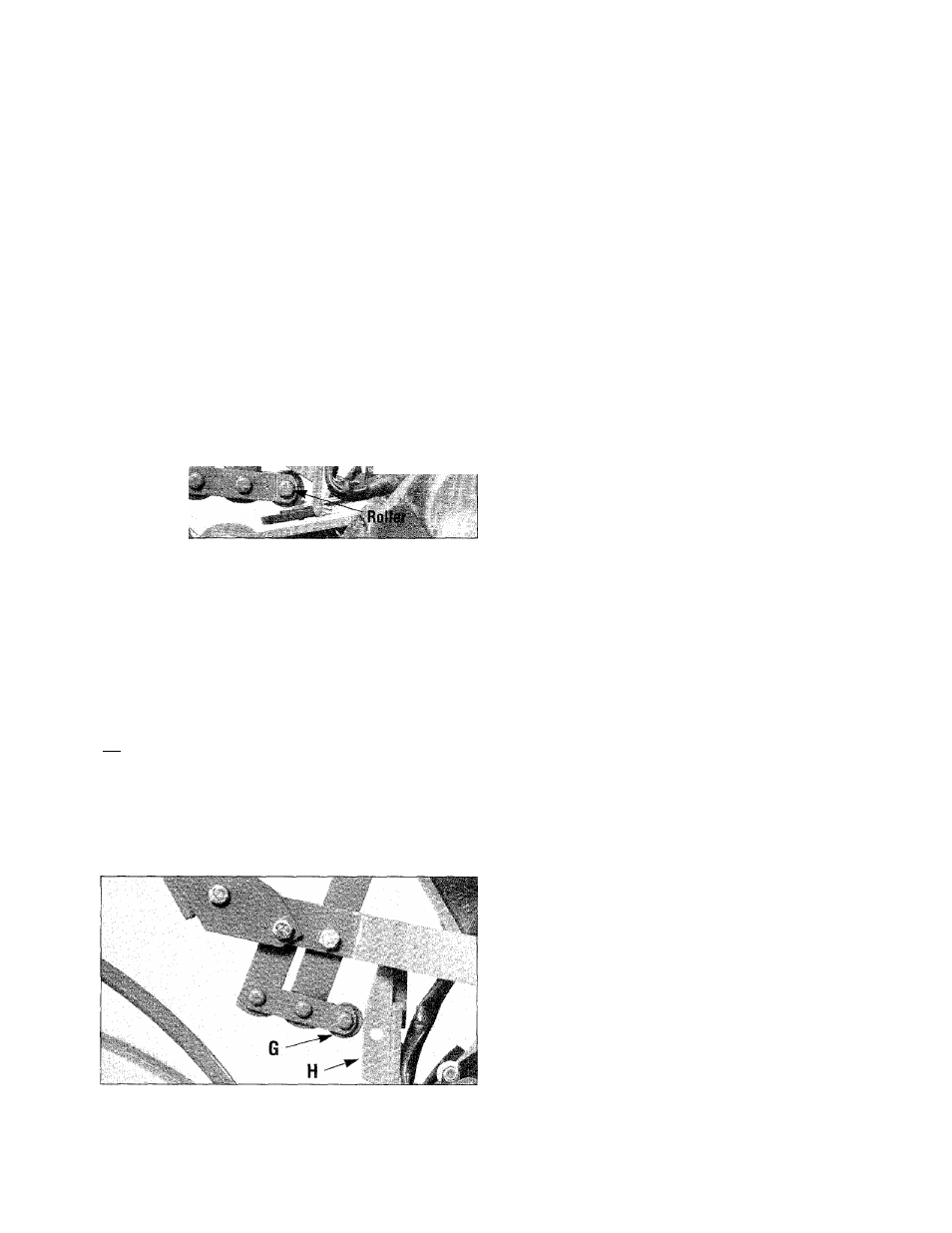

Photo 3-1 A: When Wheets/Tines/PTO Drive Lever is in FOR­
WARD position - the dutch roller will be eng^ed below the
adjustment block. Verify this.
%
M,
•mJr-d.
/ ■
M
Photo 3-1B: When Wheels/Tines/PTO Drive Lever is in NEU­
TRAL position - dutch roller (G) must be located approxi­
mately as shown on the face of the adjustment block (H).
Photo 3-1C: When WheelsJTines/PTO Drive Lever is held up
in REVERSE position- clutch roller (G) must be located
higher on the face of the adjustment block (H).
sition on the belt adjustment block. Check the clutch
roller on your tiller to see it’s positioned as shown in
the photos. If not positioned correctly, see your local
authorized dealer.
B) Forward Interlock Levers
The two Forward Interlock Levers are located
below the handlebar grips (see B, Figure 3-1).
Operator must keep at least one lever squeezed
against handlebar grip when Wheels/Tines/PTO Drive
Lever is engaged in FORWARD. (The levers do not
affect operation when Wheels/Tines/PTO Drive Lever
is in REVERSE.) If both levers are released before
first returning the Wheels/Tines/PTO Drive Lever to
NEUTRAL, the engine will stop.
IMPORTANT- This is a safety feature should you
lose control of your tiller and be unable to move
the Wheels/Tines/ PTO Drive Lever to NEUTRAL.
C) Wheel Speed Lever
This lever (C, Fig. 3-1) is used to select from two
wheel speeds and the free-wheeling mode. It has
three operating positions: SLOW, FAST and FREE
WHEEL.
To avoid damage to transmission, always put
Wheels/Tines/PTO Drive Lever in NEUTRAL before
shifting Wheel Speed Lever. When selecting SLOW
or FAST positions, roll machine while shifting to fully
engage wheel gears.
SLOW - Lever moved all the way down. Use for
normal tilling or low speed transporting.
FAST - Lever moved all the way up. Use for cultivat­
ing, transporting.
FREE WHEEL - Lever in between SLOW and FAST
positions (wheels will roll freely). Use for transporting
without engine power and when using stationary PTO
attachments.
