KNOW YOUR UNIT
a CARTON CONTENTS
DESCRIPTION QTY
• Engine
• Drive Shaft Assembly
1
w/Safety Label 1
• Metal Shield 1
• Plastic Shield 1
*
• 8” Bmsh Blade 1
*
• Trimmer Head 1
• Handlebar with Throttle Trigger
Assembly 1
• Shoulder Strap w/Waming
• Operator’s Mamuai
1
1
• Loose Parts Bag 1
LOOSE PARTS BAG CONTENTS:
• HexWrench-5/32” 1
• Hex Wrench — 3/16” 1
A. Hex Socket Screw 2
B. Screw 4
C. Screw 6
D. Hex Nut 2
* E. Flange Hex Nut 1
F. Grass Washer 1
* G, Flat Washer
1
* H. Cupped Washer
1
I, Cover — Handlebar 1
* —J.—RetentionP-late
A. INTRODUCTION
Your tool is a versatile product developed for large
lawns and to make short work of a variety of lawn
care tasks — trimming, scalping, mowing, and
sweeping.
Special Features Include:
• 18” Cutting Path
• TAP—N-GO® Dual Exit Trimmer Head
• Heavy Duty Precision Clutch®
• 30cc Engine
• 8” Brush Blade
• Optional 4 Point, 8” Blade
B. TRACKING mSTEUC
1. After removing the contents from the carton,,
check parts against the Carton Contents list.
2. Examine the parts for dama^. Do not use dam­
aged parts.
3. Notify your POXJLAN PRO dealer immediately
if a part is missing or damaged.
NOTE: Your unit has been shipped with a plastic
shipping guard over the primer bulb (see "Spec­
ifications” for location). Remove and discard
the plastic shippii^ guard.
NOTE: It normal to hear the fuel filter rattle in
ah empty fuel tank. _________________ ..
A WARNING
Parts marked with * are critical and must be sup­
plied by your POULAN PRO dealer. Failure to use
the proper parts can cause the blade to fly off and
seriously hurt you or others._________________________

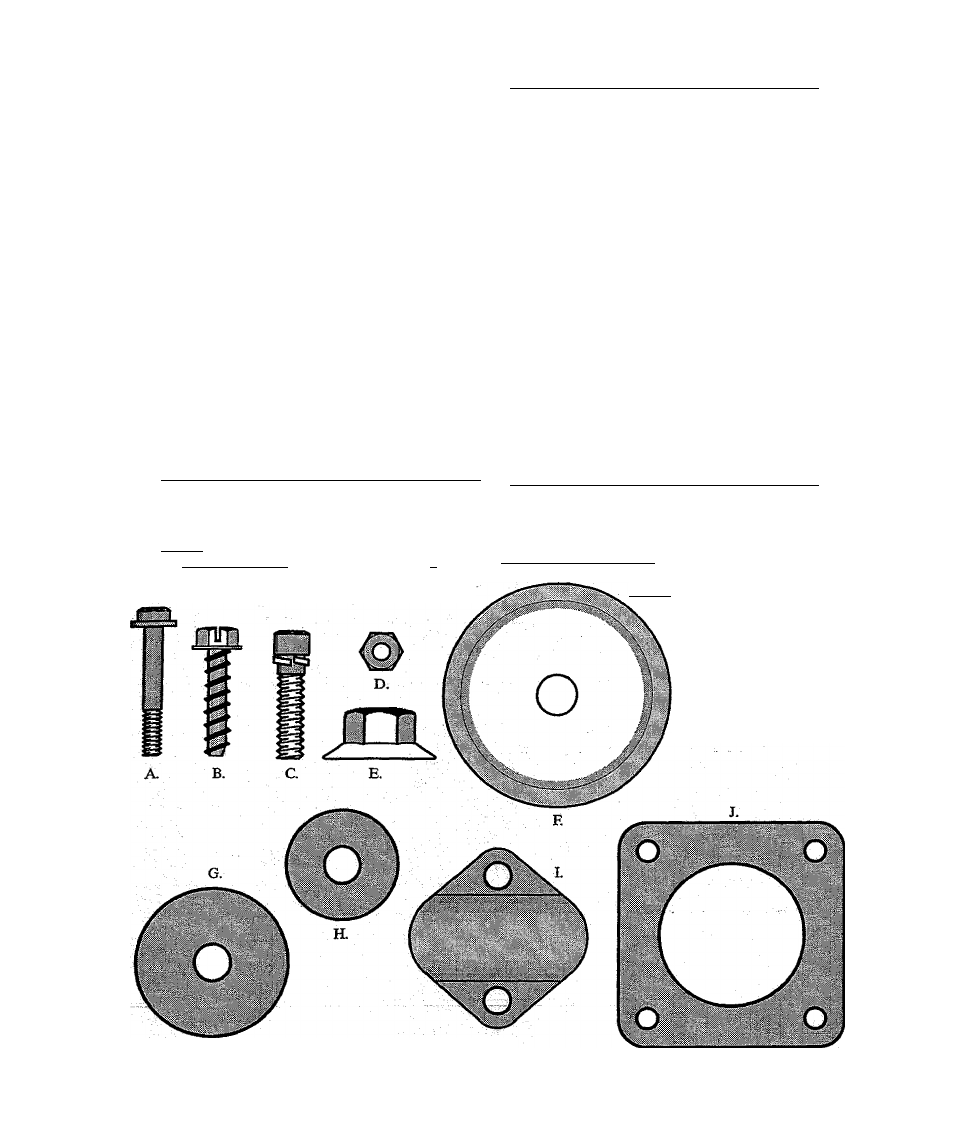

D.HAKDWARE USAGE NOTE: This Hardware is packaged
in the Plastic Bag. Refer to the
Hardware reference letters
below during assembly.
HARDWARE SHOWN
ACTUAL SIZE
Figure 1
