Parts List
MODELS 682J. E686N & E682L

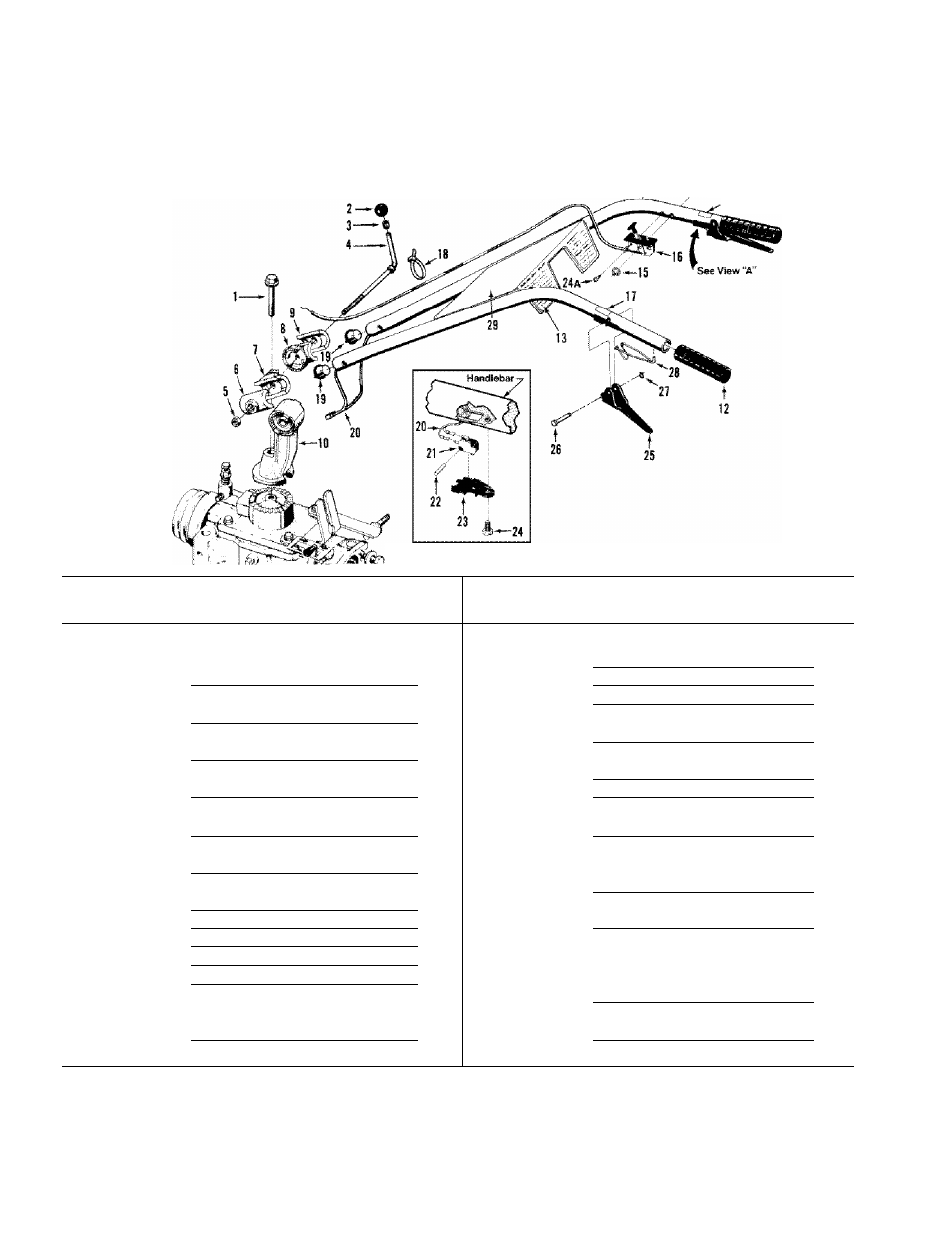

HANDLEBAR ASSEMBLY
tr" I
17
VIEW “A’
REF
No. PART
No. DESCRIPTION QTY.
REF
No. PART
No. DESCRIPTION OTY.
1 GW-9548 Bolt-Hex hd., flanged seif-locking 17 777I20946 Decal-Forward Interlock Lever....... 2
Grades, 1/2-13x3-1/2"................ 1 18 725-0157 Tie-plastic..................................... 2
2 GW-9119 Knob-handlebar height adjustment 1 19 GW-9219 Plug-wire harness retainer............. 2
3 GW-9120 Ring-retaining (tolerance ring)........ 1 20 GW-2551 Handlebar Wire Harness Assy-
4 GW-2657 Stud-handlebar height adjustment 1 forward interlock system............ 1
5 1186233 Nut-hex, 1/2"-13........................... 1 21 GW-9250 Handlebar Switch-forward
6 GW-102M C!amp-!eft, handlebar height interlock system........................ 2
adjustment................................. 1 22 GW-9385 Lock Pin-handlebar switch............. 2
7 GW~2542"1 Ratchet-left, handlebar height 23 GW-2543 Switch Housing-handlebar switch 2
adjustment................................. 1
—
GW-2563 Switch Assembly........................... 1
8 GW-2542-2 Ratchet-right, handlebar height (Includes Ref. 21-23)
adjustment................................. 1 24 1186009 Screw-pan head, 10-24 x 1/2",
9 1901784 Clamp-right, handlebar height thread-forming.......................... 2
adjustment................................. 1 24A GW-9733 Screw-phiiiips head, 10-32 x 1/2",
10 GW-2534A Base-handlebar mounting............... 1 thread-forming.......................... 1
11 GW-2717 Handlebars.................................... 1 25 786-04003 Lever-Operator Presence Control. 2
12 GW-9125 Grip-handlebars............................. 2 26 GW-9199 Pivot Pin-forward interlock lever.. 2
13 777122026 Decal-Control panel....................... 1 27 GW-9514 Retaining Ring-klip ring-forward
14 1918111 Bolt-curved hd, GR5,1/4-20 x 2".. 1 interlock lever........................... 2
15 1186389 Nut-hex, flanged self-locking, whiz 28 GW-9387 Return Spring-fwd interlock lever 2
lock, 1/4--20.............................. 1 29 777D06526 Label -Troy-Bilt Horse................... 1
16 1909286 Throttle Control & Cable, 66”.......... 1 777D06527 Label -Troy-Bilt Horse “Big Red” 1
46
