Section 4: Operation

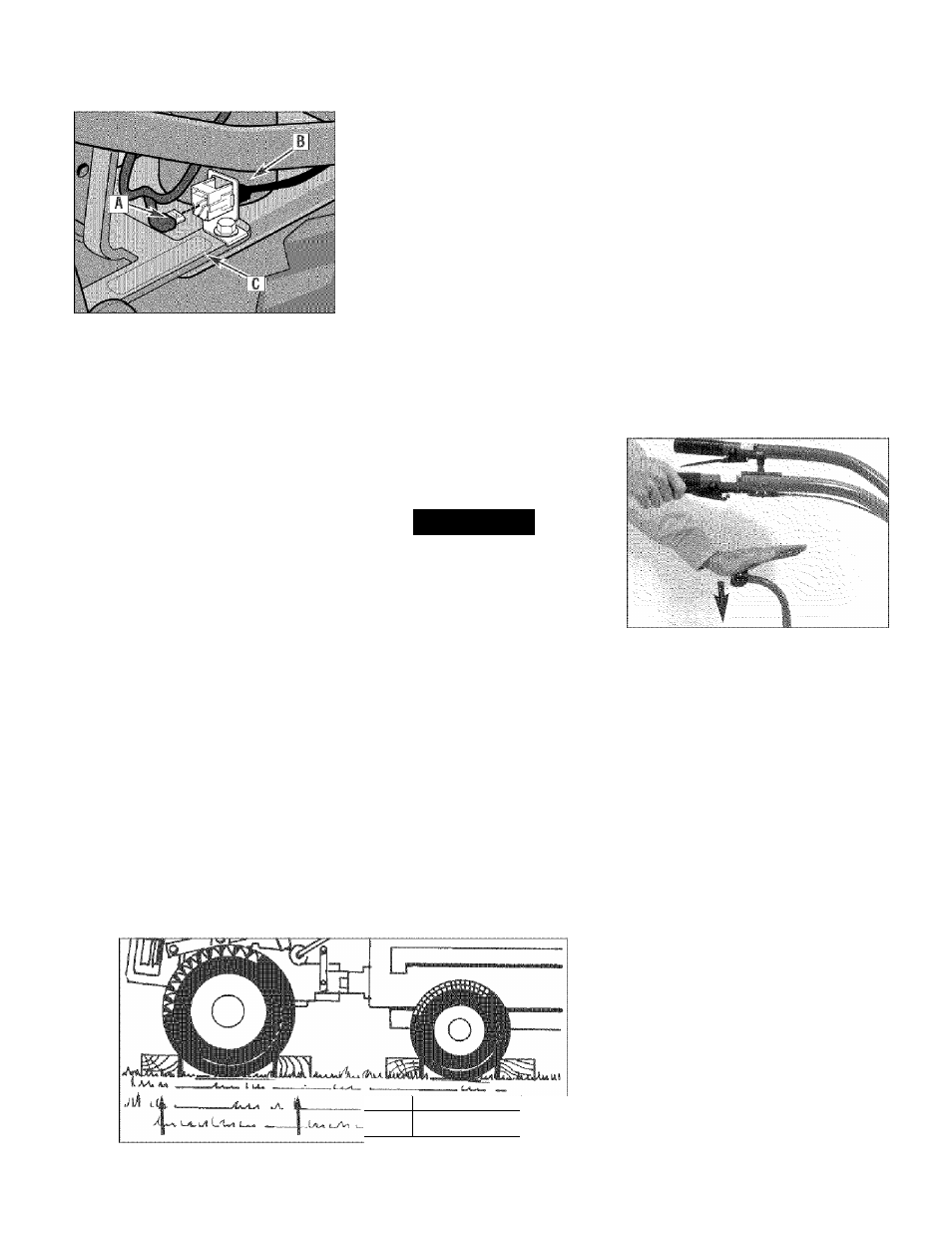

Figure 4-28: Forward Interlock Wiring
A - PTO Power Unit interlock Harness
B - Forward Interiock Receptacle
C
- Attachment Interlock Wire
3. On the PTO Power Unit, unplug the
Forward Interlock Wire Harness that leads
from the base of the handlebars (A. Figure
4"28) to the receptacle (B) located on the
top, right side of the transmission cover.
4. On the Stationary Attachment, locate
the interlock wire (C, Figure 4-28) and
clean contacts on plug and receptacle (B).
This connection enables you to operate
the Wheels/Tines/PTO Drive Lever in
FORWARD without having to squeeze a
Forward Interlock Lever.
5. Connect the plug from the Stationary
Attachment (C, Figure 4-28) to the recep­
tacle on the PTO Power Unit (B). The
connection must be tight.
Setting Up Mon-Poweretl Attach­
ments
1. Move the Tines/PTO Clutch Lever
(Figure 4-22) to DISENGAGE.
2. Move the Wheel Speed Lever (Figure
4-22) to either SLOW or FAST position
To do this, roll the PTO Power Unit while
shifting lever until wheels engage.
3. Verify that the Forward Interlock Wire
Harness plug at the base of the handle­
bars (A, Figure 4-28) is connected to the
Forward Interlock Wire Harness recepta­
cle (B) on the top right side of the
transmission.
Starting The Engine
IMPORTANT: Refer to
Cold Weather
Operation
instructions, in this section,
before operating in temperatures below
40°F.
1. Move the Wheels/Tines/PTO Drive
Lever into NEUTRAL. To find NEUTRAL
(be sure engine is off), push lever down
and engage it in FORWARD then tap the
lever upward to automatically move into
NEUTRAL.
2. Move the Tines/PTO Clutch Lever into
DISENGAGE position.
A WARNING
To avoid iiijyrf.do not ran the engine in
an enclosed or poorijf veiited area.
Engine
exhaust contains carbon
monoxide, an odorless and deadly gas.
3. Start Engine. See Starting and
Stopping the Engine,
in the beginning of
this section, for detailed starting informa­
tion. Also see the Engine Owner's Manual.
4. For non-powered attachments only test
the Forward Interlock Safety System. See
Testing
the
Forward
Interlock
Saiety
System, in this section, for a procedure.
Operating Stationary Attachments
1. Move Tines/PTO Clutch Lever (Figure
4-22) into ENGAGE.
1. (yu
2. To apply power to PTO-driven attach­
ments, move Wheels/Tines/PTO Lever
(Figure 4-22) down to FORWARD position
{do not
use
REVERSE with
stationary
attachments).
3. To stop the PTO Power Unit, tap the
Wheels/Tines/PTO Drive Lever upward
into NEUTRAL position.
Operating Non-Powered Attachments
(or to Tow Stationary Attachments)
1. To move forward, squeeze and hold
one Forward Interiock Lever (Figure 4-30)
up against the handlebars, and move the
Wheeis/Tines/PTO Drive Lever down to
FORWARD.
Figure 4-30: Moving tiller forward:
squeeze one Forward Interlock Lever
and then move
Wheels/Tines/PTO
Drive Lever down to FORWARD.
2. To stop forward motion, tap
Wheeis/Tines/PTO Drive Lever upward
into NEUTRAL, then release the Forward
Interiock Levers.
3. To stop forward motion in an
emergency, release all PTO Power Unit
controls (stops engine).
4. To move in reverse, reduce the engine
speed then shift the Wheel Speed Lever
into SLOW. Move and hold the
Wheels/Tines/PTO Drive Lever all the way
up. Ensure that the area behind you is
clear of ail obstacles, before moving the
lever into REVERSE.
5. To stop moving in REVERSE, release
the Wheeis/Tines/PTO Drive Lever.
Stopping the Engine
Move the Engine Throttle Lever to STOP.
Turn keyswitch to OFF on electric start
models.
Figure 4-29: Block wheels on PTO Power Unit and stationary
attachment.
