Ariens GARDEN TRACTORS 931013 S-14G - Manual (Page 32)

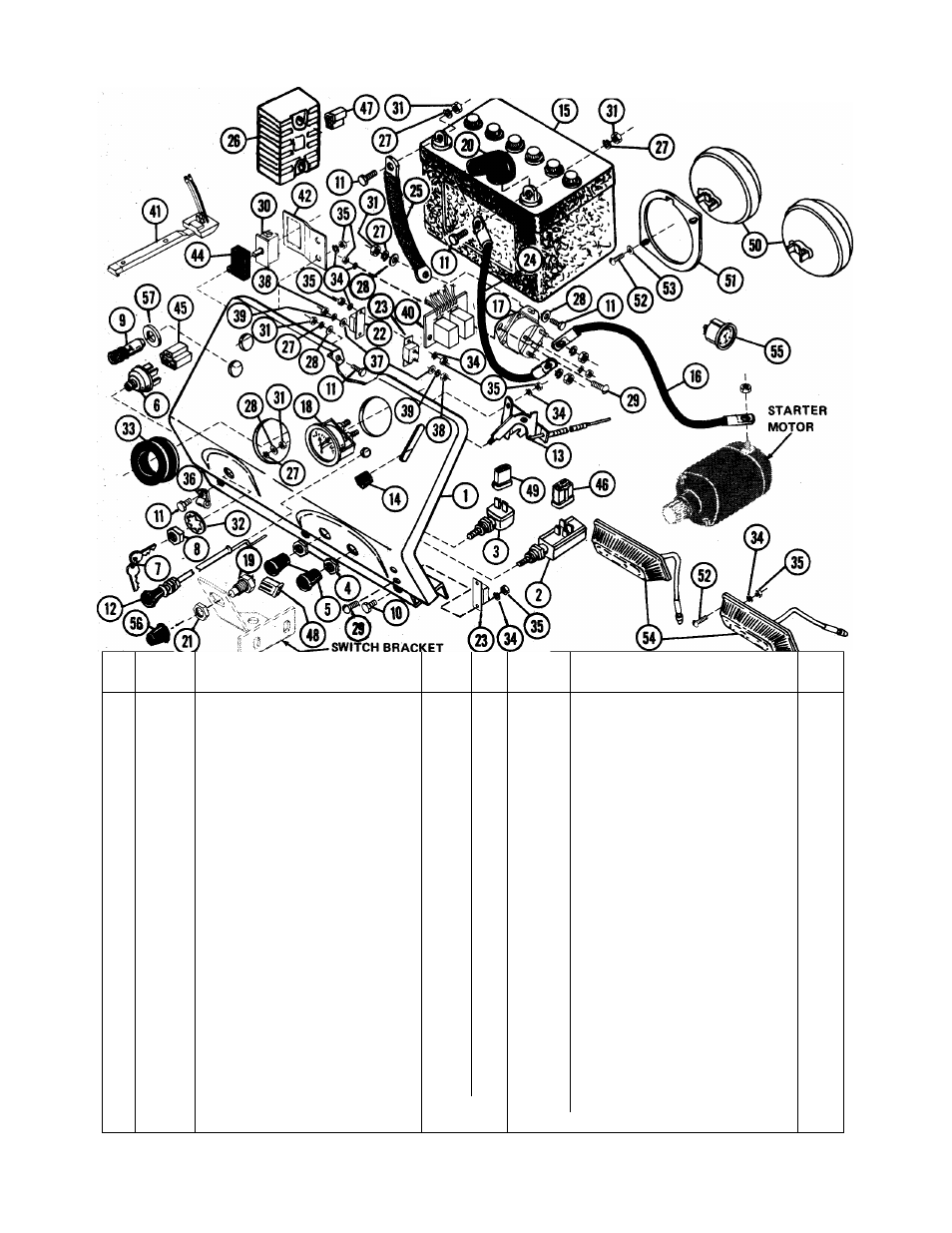

DASH, CONTROLS AND ELECTRICAL
ALL MODELS
REF
NO.
PART
NO. DESCRIPTION
NO.
REQ'D
REF
NO.
PART
NO. DESCRIPTION
NO.
REQ'O
1 531058 DASH W/Decal 1 30 025172 SWITCH 1
2 031150 SWITCH, Clutch 1 31 065032 NUT, Hex, 1/4" 8
3 031151 SWITCH, Lights 1 32 063029 LOCKWASHER, Internal Tooth, 9/16" j 1
4 065104 NUT, Jam, 1/2" 2 33 075061 GROMMET 1
5 075068 KNOB, Switch 2 34 063011 LOCKWASHER, External Tooth, No. 10 14
6 031152 SWITCH, Ignition 1 35 065055 NUT, Hex, No. 10-24 14
7 013157 KEY SET 1 36 031070 CLIP 2
8 065106 NUT, Speciai,9/16" 1 37 064141 WASHER 4
9 031179 PTO Indicater 8t Wire Ass'y 1 38 065026 NUT 4
10 074043 SCREW, Self-Tapping, No. 10 x 1/2 4 39 063011 LOCKWASHERS 4
11 059001 CAP SCREW, HH, 1/4 X 3/4 8 40 531074 RELAY - Diode 1
12 069103 CHOKE CONTROL ASS'Y 1
41 031716 SEAT SWITCH 1
13 069104 THROTTLE CONTROL 1 42 031833 BRACKET-Switch i 1
14 075019 KNOB, Throttie Controi 1 43 031839 RELAY - Clutch Control j 1
15 031085 BATTERY, 12 Voit 1
44 075045 RUBBER BOOT 1
16 031111 CABLE ASS'Y, Soienoid to Starter 1 45 023478 CONNECTOR HOUSING, 5 Wire 1
17 031720 SOLENOlO STARTER SWITCH 1 46 023595 CONNECTOR HOUSING, 4 Wire 1
18 031117 AMMETER 1 47 031106 CONNECTOR HOUSING, 3 Wire
19 029131 SWITCH, Safety 1 48 029170 CONNECTOR HOUSING, 2 Wire 1
20 075057 INSULATOR 1 49 031105 CONNECTOR 1
21 065096 NUT, Special, 5/8" 1 50 031149 HEAD LIGHT 2
22 031102 CIRCUIT BREAKER, 20 Amp 1 51 031159 RETAINER RING 2
23 031108 CIRCUIT BREAKER, 6 Amp 1 52 061040 SCREW, Machine, Truss H. No. 10-1/2" 8
24 031110 CABLE ASS'Y, Battery to Solenoid 1 53 064001 WASHER 8
25 031103 CABLE ASS'Y, Battery to Ground 1 54 631006 TAIL LIGHT 2
26 031109 REGULATOR RECTIFIER 1 BULB - for item 54 GE 1895 (not ill.) 2
27 063002 L0CKWASHER,1/4" 8
031375 LENS - Red for item 54 (not ill.) 2
28 064127 WASHER, Flat 1/4" 4
55 031962 HOUR METER 1
29 061012 MACHINE SCREW, No. 10-24 x 1/2 2
- 3 2 -
