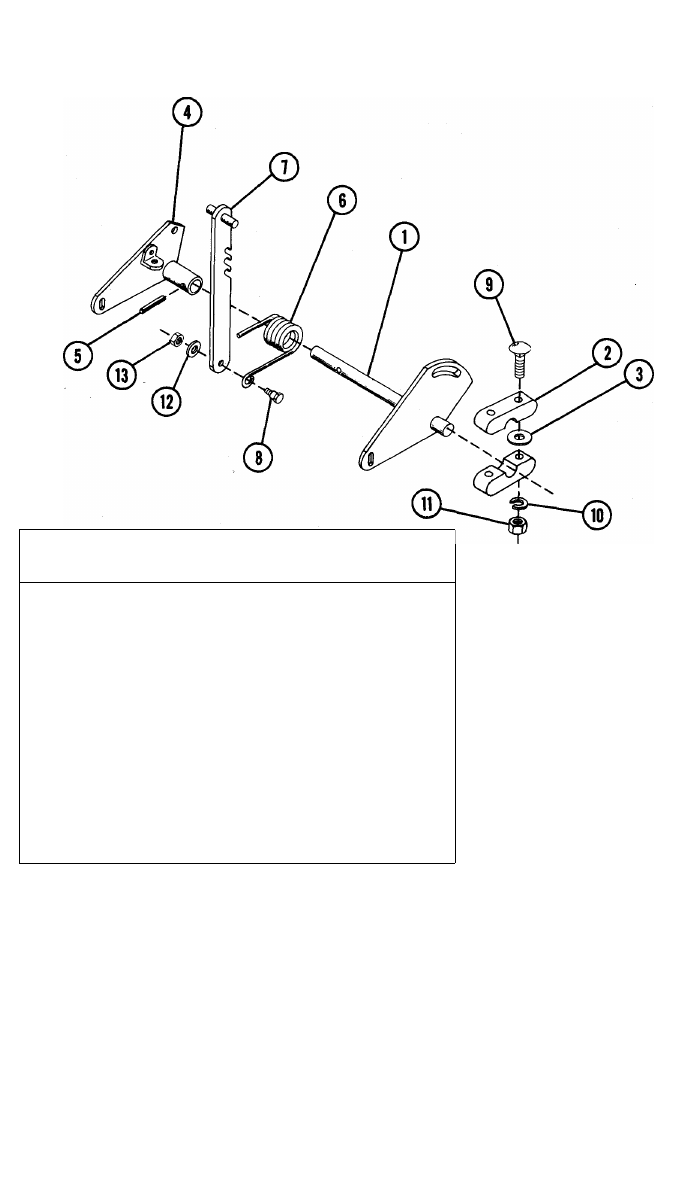

CENTER ROCK SHAFT
REF
NO.
PART
NO.
DESCRIPTION
NO.
REQ'D.
1
031790
CENTER ROCK SHAFT
1
2
029011
BEARING BLOCK
4
3
064115
SHIM, .005 Thick
4
4
031811
R.H. ROCKSHAFT LEVER
1
5
058063
PIN GROOVE, 1/4x2
1
6
083167
SPRING, Torsion
1
7
031809
SPRING HANDLE
1
8
011120
BOLT, Shoulder
1
9
062005
BOLT, Carriage, 3/8 x 2-1/4
4
10
063021
LOCKWASHER,3/8
4
11
065018
NUT, Hex, 3/8
4
12
064003
WASHER
1
13
065039
LOCKNUT
1
«
