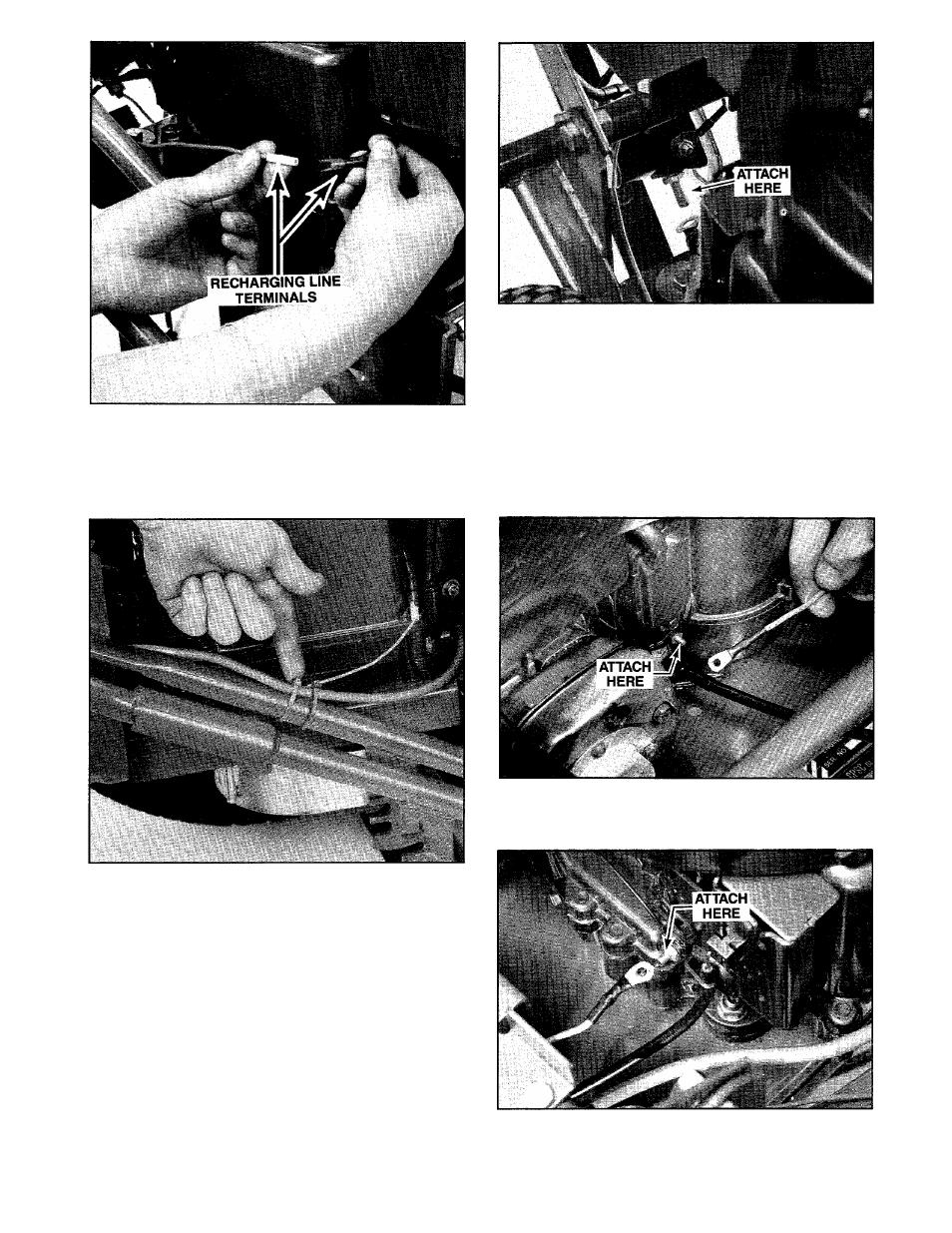

Photo 2-19:

Connect recharging line on 24" (8HP en

gine) mower. (Wheel removed for photo clarity).

Use a plastic tie to secure the recharging line to the

strut. See Photo 2-20.

Photo 2-21:

Attach starter motor cable to lower stud oh

solenoid.

STEP 5: Attach Ignition Ground Wire

The ignition ground wire is a thin green wire that

leads from the key switch wiring harness (the wiring
harness also contains a red and a white wire).

At the rear of the engine, remove the nut from the

engine ground stud, attach the wire terminal, and re
place the nut securely. See Photo 2-22 or 2-23.

Photo 2-20:

Add plastic tie to recharging line (wheel

removed for clarity).

STEP 4: Attach Starter Motor Cable

Parts Needed: (1) 5/16"-24 Hex Nut, (1) 5/16" Lock-

washer.

The starter motor cable is a thick red cable, approx

imately 20" long. One end is already attached to the

starter motor at the front, right side of the engine.
C. Bring the cable terminal over to the solenoid that is

mounted on the battery bracket support leg. As shown
in Photo 2-21, attach the cable terminal to the lower

stud on the solenoid and add the 5/16" lockwasher and
5/16" hex nut. Tighten the hex nut securely to ensure a
good electrical contact.

Photo 2-22:

Attach ignition ground wire on 22" (5HP

engine) mower.

Photo 2-23:

Attach ignition ground wire on 24" (8HP

engine) mower.
