Threading

© ® 0 (D

Threading / Preparation

- Disconnect machine from

electricity supply.

- Support rod with thread guide

must be fully raised.

- Open the looper cover and the

cloth plate cover.

- Turn the handwheel towards you

until needles are fully raised.

- Thread the machine in the

correct sequence.

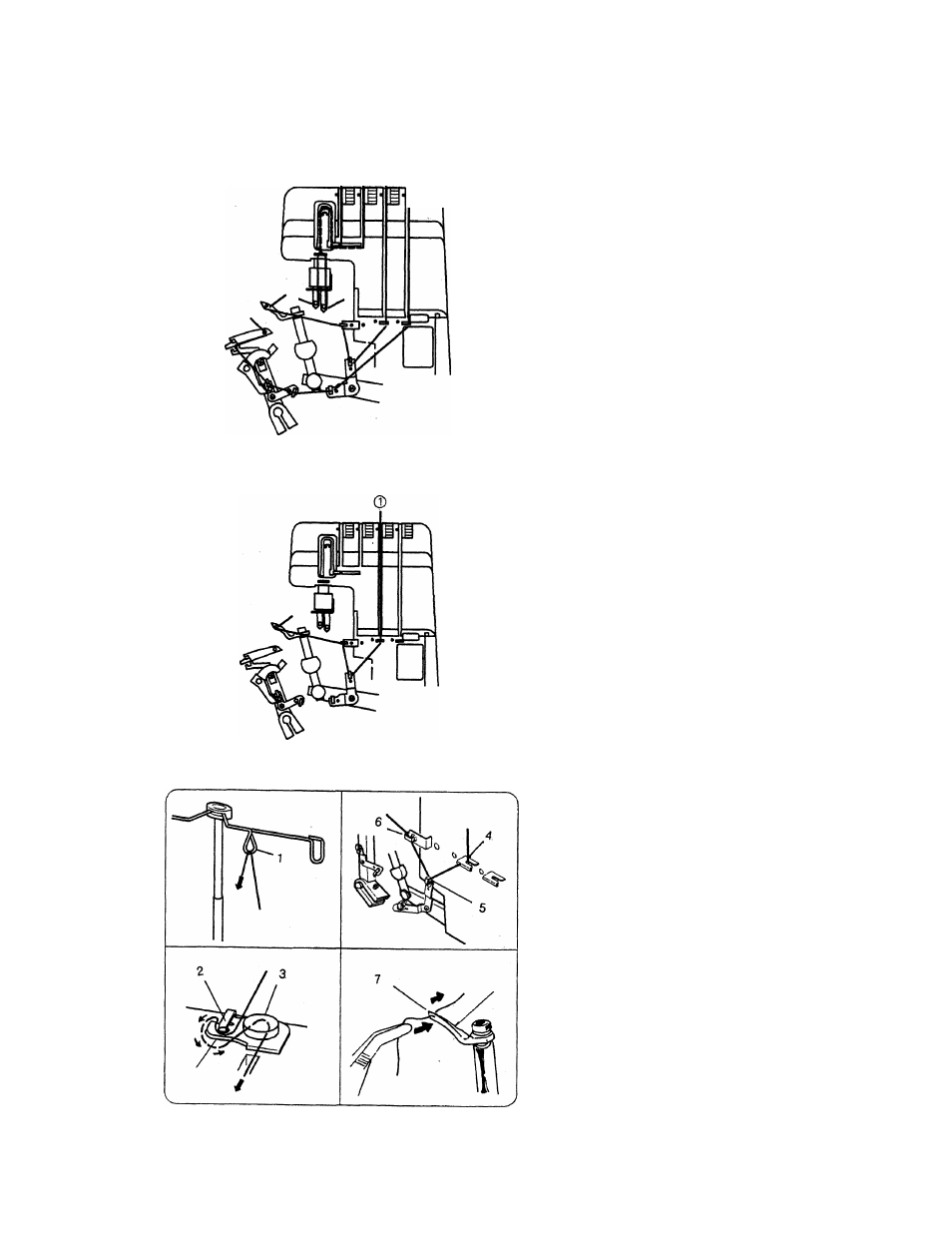

Upper looper (Green)

Place the spool on the spool holder

pin.

Bring thread up from back to front

through guide (1).

Pull the thread under the protector(2)

and pass under the guider up to

go around the pre-tension(3)

Thread guide(4,5,6)

Thread looper eye(7)
