Control Panel Cover
covers the pattern selector Hiai stitch density control,
and bobbin winder
Bobbin Winder Tension Discs
controls the tension on the thread as the honhin is being
wound.
Pattern Selector Dial
selects pattern desired. May be turned in any direction.
Tension Dial
has two discs which regulate the amount of tension
on the needle thread.
Take-up Lever
regulates the flow of thread through the needle. It has
an open eyelet to simplify threading. The take-up lever
should always be in the highest position when beginning
or ending sewing.
Face Plate
opens to the left to allow for easy chanpino of the light
bulb.
Check Sprint
helps control the flow of thread through^e needle.
CIsmn
holds the needle tn place.
Thumb Screw
holds the presser foot in place.
Flap Release Knob
releases flaps for flat sewing surface.
Presser Foot
holds the fabric in place for sewing. Snap-on feet are
provided with the sewing machine. Various interchange­
able soles are included in the accessory box. The front
of the presser foot shank is white to make needle thread­
ing easier.
Needle Plate Release Leve.
pushes the needle plate up for easy removal.
Diamond Point Feed Dog
moves the fabric after each stitch is formed. The
diamond points give a gentle feed for delicate fabrics
as well as an accurate feed for heavy fabrics.
Needle Plate
has guide lines on the left and right for greater sewing
accuracy. It snaps off for easy cleaning.

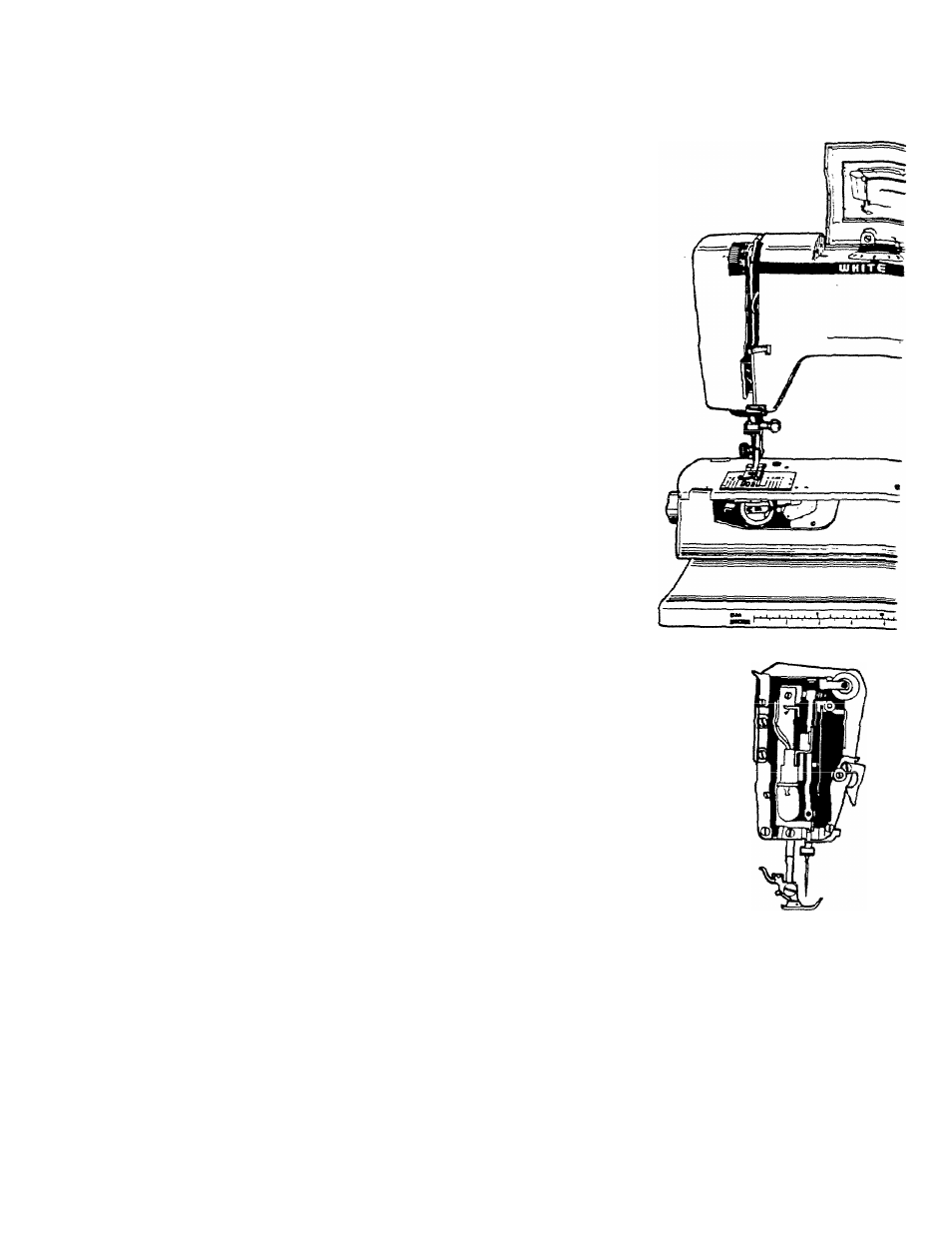

' “E-iTL-'PES
AND
PARTS
Flat Sewing Surface Brace
holds flaps up for flat sewi.ng surface.
Flat Sewing Surface Flaps
are released and braced whenever a flat sewing surface is
desired or access to the bobbin is needed.
Pressure Control
controls the amount of pressure on the fabric. The
illustrated plate indicates the proper position for various
fabrics.
