31
grease cups (HH, Fig. 30).
Do not dis
connect any of the electric wiring of
the machine or the motor.

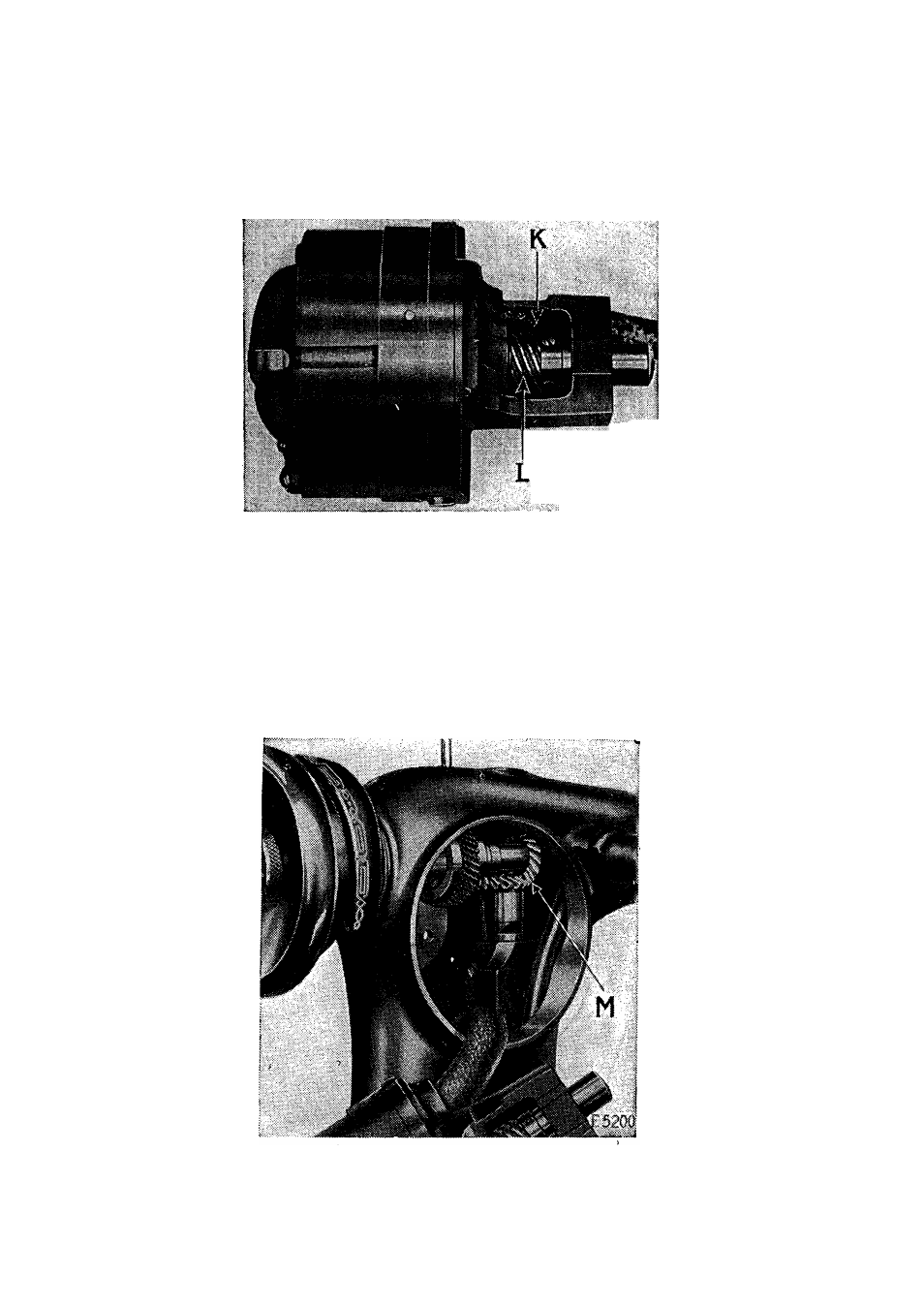

Fia. 31.
V
iew
of
M
otor
. S
howing
L
ubricant
W
ell
and
S
piral
D
riving
P
inion
(d) Unscrew the two grease cups (HH, Fig. 30).
(e) Both the wicks and the interior of the grease
cups should be thoroughly cleaned of all old
grease. Then replace the wicks in the cups
and refill the cups with
SINGER
M
otor
L
ubricant
,
(not oil).
F
ig
.
32.
B
ack
V
iew
, S
howing
B
evel
G
ears
in
A
rm
ok
M
achine
