1. When the machine is shipped from the factory,
the two motor grease cups (HH, Fig. 30) are filled
30

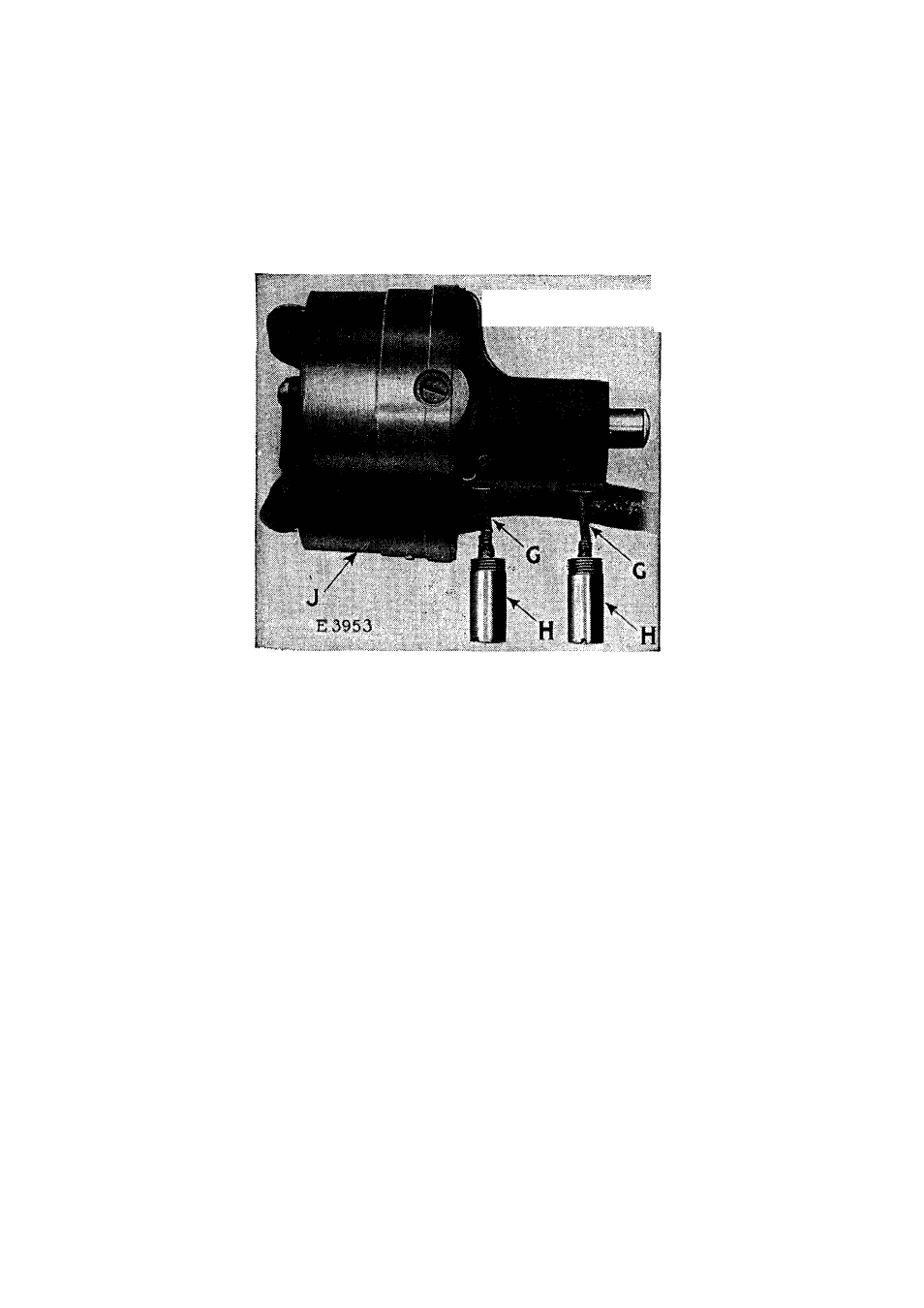

To Lubricate the Motor
F
ig
.
30
.
V
iew
of
M
otor
, S
howing
G
rease
C
ups
R
emoved
with sufficient lubricant for one year’s use, under
ordinary circumstances.
2. At least once a year thereafter, these grease
cups should be removed, thoroughly cleaned out and
refilled with the
M
otor
L
ubricant
furnished with
the machine and sold only by Singer Sewing Machine
Company. To do this, the motor must be removed
from the machine.
3. To remove the motor.
(a) Remove thè motor cover (C, Fig. 2, page 5).
(b) Remove the screw (F, Fig. 27, page 28)
which holds the motor.
(c) Withdraw the entire motor (J, Fig. 30)
from the machine by turning it slightly
from side to side and at the same time pulling
^ it toward you. The motor should only be
withdrawn far enough to expose the two
